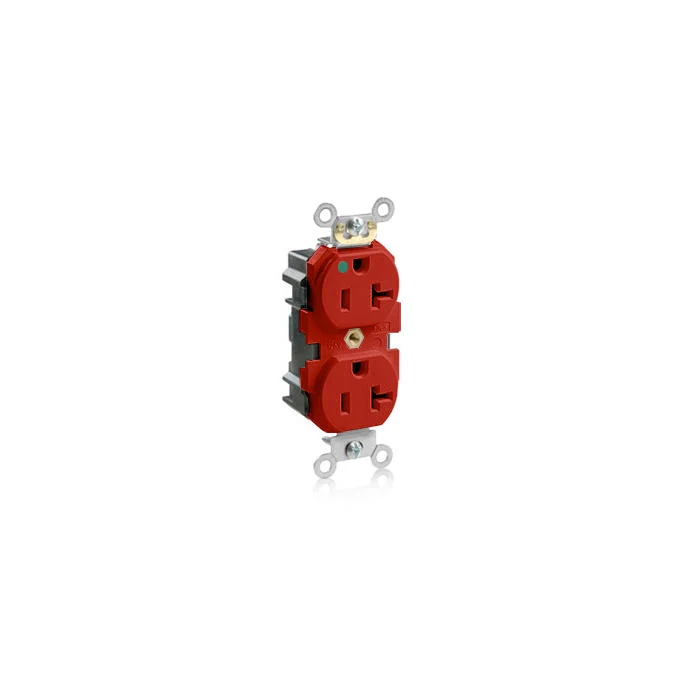

LEVITON M8300-HR Receptacle, Duplex, 5-20R, 20 A, 125V AC, Red, 2 Pole / 3 Wire Poles & Wires, Modular Wiring
Item: CR9JCHModel: M8300-HRCross Ref: 792UL6
7 In Stock
Ships within 2 days via
5.00% off
€28.07 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Base Material | Nylon |
| Bushing Material | Solid Brass |
| Color | Red |
| Connection Orientation | Straight |
| Cover Material | Nylon |
| Cover Type | No Cover |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Features | Smooth Face |
| Gfci | No |
| Grade | Heavy Duty Hospital Grade , Hospital Grade Fed. Spec. |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Housing Color | Red |
| Hp Rating | 1 hp |
| Includes | Wallplate |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Thickness | 1/25" |
| Locking Pins | Solid Brass |
| Max. Working Voltage | 125V |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Screws Material | Triple Combination Head, Steel |
| Mounting Strap Finish | Galvanized |
| Mounting Strap Material | Steel |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Standards | Ansi, Culus Listed, Nom Certified, Rohs Compliant, Ul Federal Specification |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Termination | Modular |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Modular Wiring |
| Wire Connection Types | Snap In Module |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 23.5 |
| Ship length (cm) | 27.31 |
| Ship width (cm) | 4.11 |
| Country of Origin | MX |
