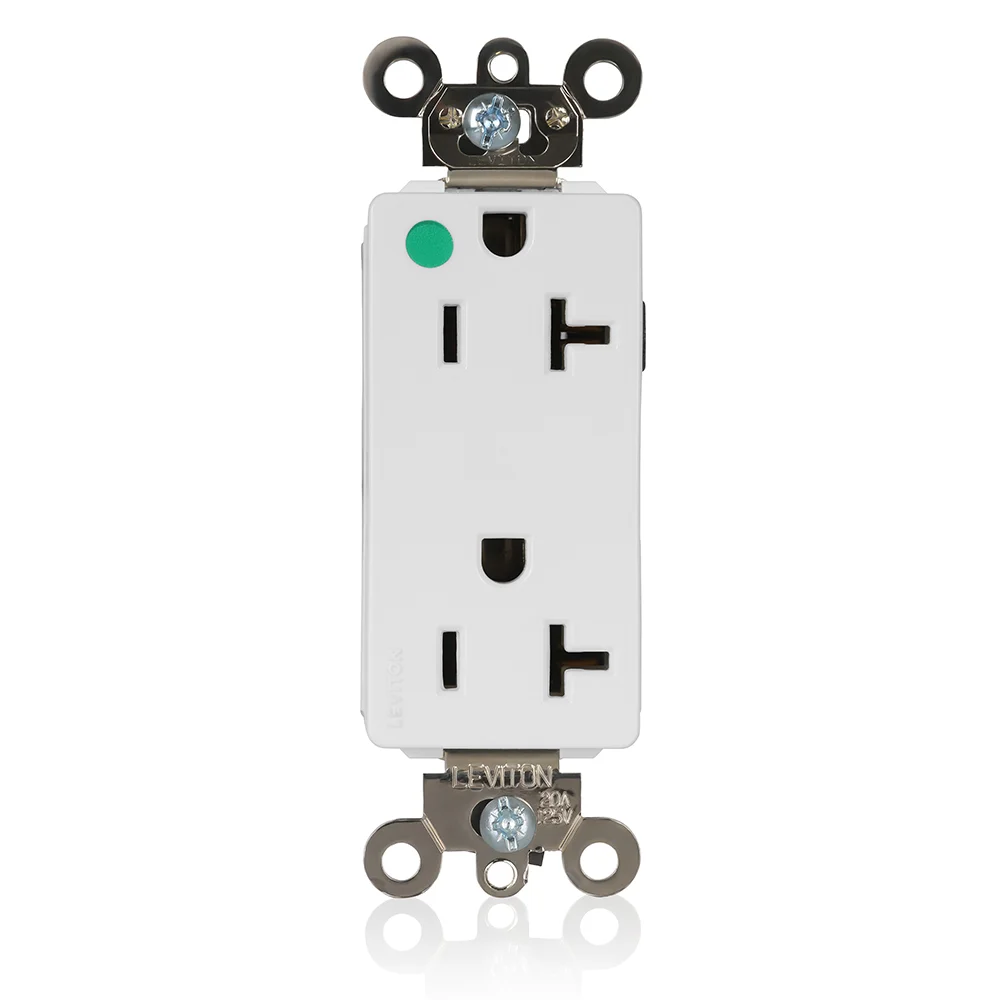

LEVITON M1636-ILW Extra Heavy Duty Illuminated Self Grounding Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Item: CR9JAPModel: M1636-ILWCross Ref: 792UL2
7 In Stock
Ships within 2 days via
5.00% off
€62.00 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Nylon |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Features | Illuminated, Smooth Face |
| Flammability | Rated V-2 Per UL94 |
| Gfci | No |
| Grade | Extra Heavy Duty Hospital Grade , Hospital |
| Ground Clips Finish | Nickel Plated |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Housing Color | White |
| Hp Rating | 1 hp |
| Illumination | 100000 hrs. Green LED's |
| Includes | Wallplate |
| Includes Mounting Hardware | Yes |
| Lead Identification | Leads Identified In Accordance With UL 498 (Black, White And Green) |
| Line Contacts Material | Brass |
| Line Contacts Thickness | 1/25" |
| Locking Pins | Solid Brass |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-m1636-ilw.pdf |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Standards | Ansi, Culus Listed, Nom Certified |
| Strap Finish | Nickel Plated |
| Strap Material | Brass |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Termination | Modular |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Modular Wiring |
| Wire Connection Types | Snap In Module |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 23.5 |
| Ship length (cm) | 27.31 |
| Ship width (cm) | 4.11 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Color | Grounding | Receptacle Type | Current Rating | Voltage Rating | Phase | Wire Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1636-ILI | Ivory | Ivory | Grounded | Decorator Duplex | 20A | 125V AC | Single | Modular Wiring | €65.51 | |
 |

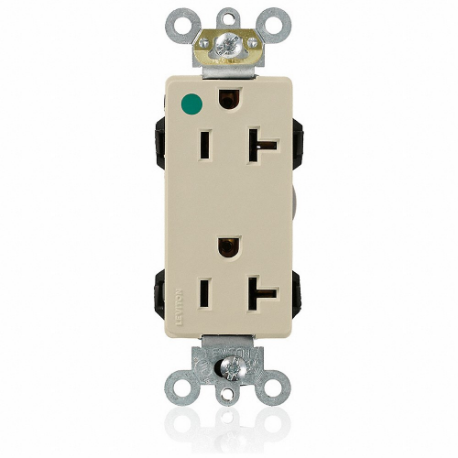

M1636-HGI | Ivory | Ivory | Grounded | Decorator Duplex | 20A | 125V AC | Single | Modular Wiring | €54.41 | |
 |
M1636-ILR | Red | Red | Grounded | Decorator Duplex | 20A | 125V AC | Single | Modular Wiring | €65.27 |
