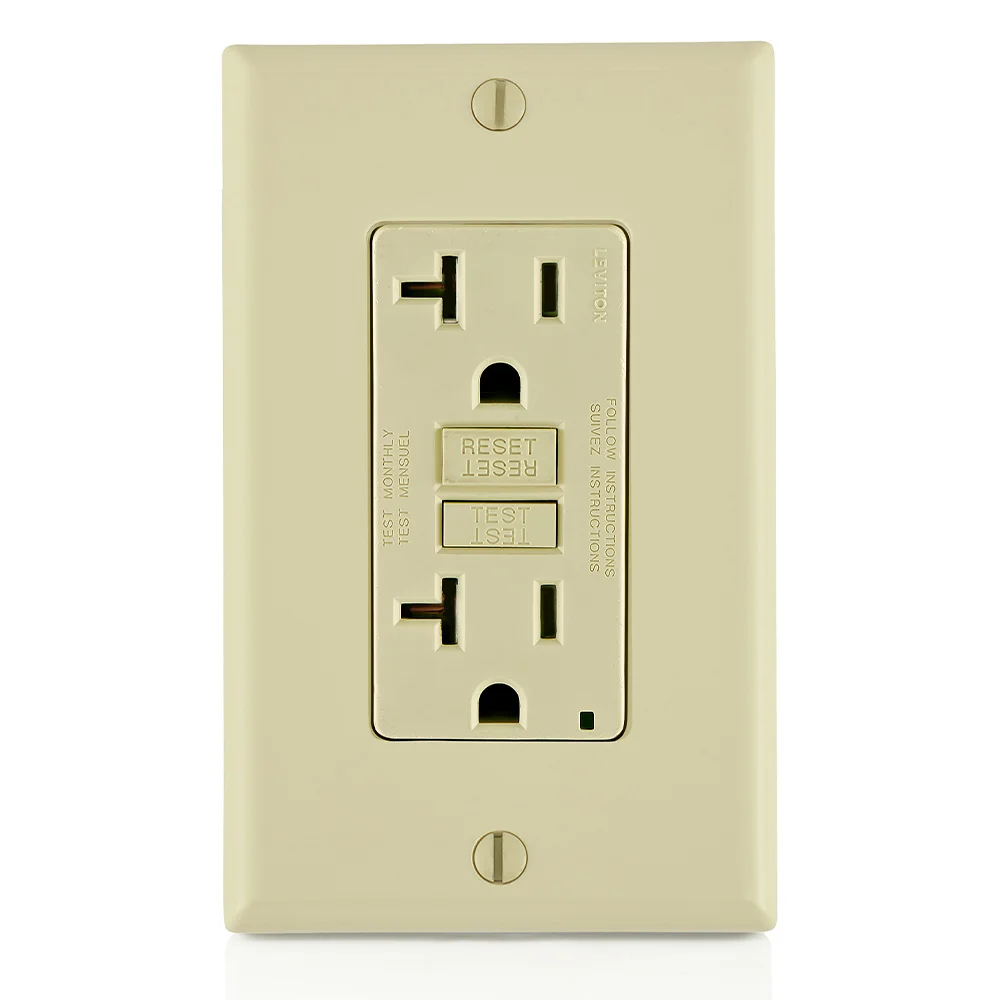

LEVITON GFTR2-I Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Polycarbonate, Ivory

Item: CR9HNNModel: GFTR2-ICross Ref: 792UJ8

7 In Stock

Color

Ships within 2 days via

~~€59.37~~

5.00% off

€56.40 /unit

This product can only be shipped in multiples of 10

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Receptacle
Ac Hp Ratings At Rated Voltage	1 hp
Amps	20A
Body Material	Polycarbonate
Clamps Material	Brass
Color	Ivory
Connection Orientation	Straight
Contact Material	Brass
Cover Type	No Cover
Current Rating	20A
Depth	1.03"
Dielectric Voltage	Withstands 1250V AC Per UL 943 And CSA-C22.2 No. 144.1-06
Face Material	Thermoplastic
Face Plate Height	2.7"
Face Plate Width	1.3"
Features	Self Test
Flammability	Rated V-2 Per UL 94
Grade	Residential, Commercial
Grounding	Grounded , Self Grounding
Grounding Screw Finish	Plated
Grounding Screw Material	Steel
Housing Color	Ivory
Housing Material	Polycarbonate
Hp	1 hp
Includes	Faceplate, Screws, Self Grounding Clip, Wallplate
Includes Mounting Hardware	Yes
Line Contacts Material	Brass
Line Contacts Style	Triple Wipe
Max. Operating Temp.	66°C
Maximum Operating Temperature	150.8°F
Maximum Wire Size	10 AWG
Mil-spec	A-A-55459-SB
Min. Wire Size	14 AWG
Minimum Operating Temperature	-31°F
Mount Hole Center-to-center Height	3.3"
Mounting Hardware Included	Yes
Mounting Type	Flush
Nema Enclosure Rating	Not Rated
Nema Rating	NEMA 5-20R
Number Of Outlets	2
Number Of Poles	2
Number Of Wires	3
Operating Temp.	-35°C to +66°C
Overall Depth	1"
Phase	Single
Polarized	No
Product Datasheet	leviton-gftr2-gy.pdf
Receptacle Type	Decorator Duplex
Reset Type	Automatic
Reverse Service	Yes
Screw Terminal Torque	14 lbs.-in. to 18 lbs.-in.
Self Testing	Yes
Short Circuit Current Rating	10 kA
Special Resistance	Tamper Resistant
Standards	Ansi, Csa Certified, Federal Specification, Mil-Spec, Nom Certified, Rohs Compliant, Ul Listed
Strap Finish	Galvanized
Strap Material	Steel
Surge Protection	No
Tamper Resistant	Yes
Temp. Rise	Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current
Terminal Accom.	14 AWG to 10 AWG
Terminal Id	Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish	Plated
Terminal Screws Material	Steel
Termination	Back And Side
Trip Level	Class A, 5 mA Plus Or Minus 1 mA
Type	Standard
Ul 94 Flammability Rating	V-2
Visual Indicator Lights	Power Connected
Voltage	125V AC
Voltage Rating	125V AC
Wallplate	Included
Wire Connection Location	Back, Side
Wire Connection Type	Screw Terminals
Yoke Finish	Zinc Plated
Yoke Material	Steel

Shipping Info:

Ship weight (kg)	0.17
Ship height (cm)	15.88
Ship length (cm)	23.5
Ship width (cm)	10.69
Country of Origin	CN

Documentation:

Datasheet

Product Variants

Model	Surge Protection	Housing Color	Current Rating	Color	Nema Rating	Grounding	Polarized	Amps	Price
GFTR1-E	No	Black	15A	Black	NEMA 5-15R	Grounded	Yes	15A	€53.67
GFTR1	No	Brown	15A	Brown	NEMA 5-15R	Grounded	Yes	15A	€53.67
GFTR1-GY	No	Gray	15A	Gray	NEMA 5-15R	Grounded	Yes	15A	€44.99
GFTR1-T	No	Light Almond	15A	Light Almond	NEMA 5-15R	Grounded	Yes	15A	€56.13
GFTR1-W	No	White	15A	White	NEMA 5-15R	Grounded	Yes	15A	€56.92
GFTR2	No	Brown	20A	Brown	NEMA 5-20R	Grounded	Yes	20A	€59.00
GFTR2-GY	No	Gray	20A	Gray	NEMA 5-20R	Grounded	Yes	20A	€51.97
