LEVITON GFTR1-HGR Slim Self Test Tamper Resistant GFCI Receptacle With LED Indicator, 125 VAC, 15 A, 2 Poles, 3 Wires, Red
Item: CR9HMPModel: GFTR1-HGRCross Ref: 792UH3
7 In Stock
Ships within 2 days via
5.00% off
€81.06 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Gfci | Yes |
| Grade | Hospital Grade Fed. Spec |
| Grounding | Grounded |
| Housing Color | Red |
| Included | Wallplate |
| Included Mounting Hardware | Yes |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-gfnl1-hg.pdf |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Self Testing | Yes |
| Special Resistance Properties | Tamper Resistant |
| Surge Protection | Yes |
| Ul 94 Flammability Rating | V-0 |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 4.29 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Housing Color | Grounding | Amps | Color | Surge Protection | Phase | Wire Connection Type | Wire Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFTR1-HG | Brown | Grounded | 15A | - | Yes | 1 | Screw Terminal | Back, Side | €82.46 | |
 |
GFTR1-HGG | Gray | Grounded | 15A | Gray | Yes | 1 | Screw Terminal | Back, Side | €82.97 | |
 |

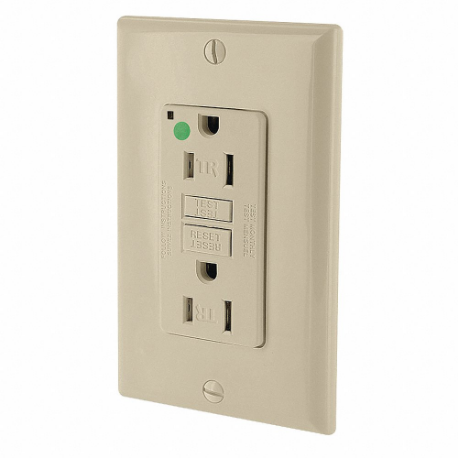

GFTR1-HGI | Ivory | Grounded | 15A | Ivory | Yes | 1 | Screw Terminal | Back, Side | €85.33 | |
 |
GFTR1-HGW | White | Grounded | 15A | White | Yes | 1 | Screw Terminal | Back, Side | €82.92 |
