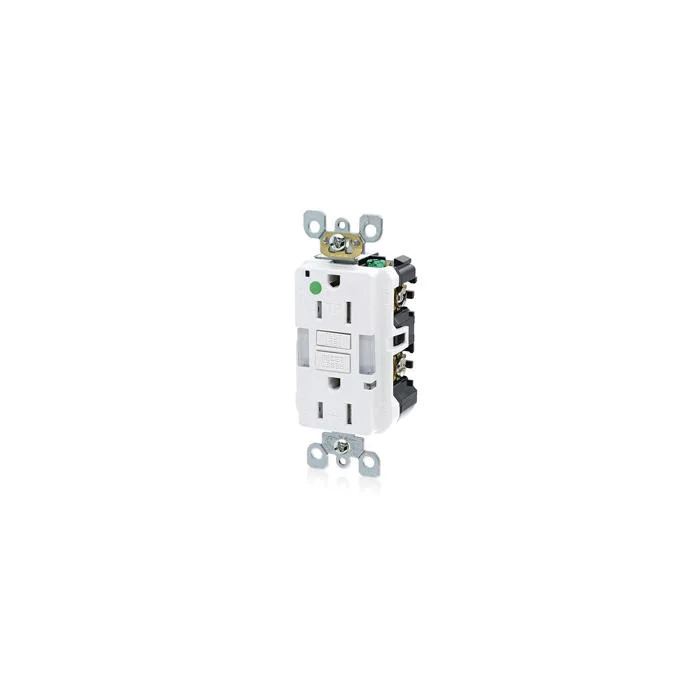

LEVITON GFNL1-HGW Slim Guide Light Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Item: CR9HMUModel: GFNL1-HGWCross Ref: 792UC4
7 In Stock
Ships within 2 days via
5.00% off
€99.35 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp @ Rated Voltage | 1 hp |
| Amps | 15/20A , 15A |
| Body Material | Polycarbonate |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Device Type | Duplex Receptacle Outlet |
| Face Material | PBT |
| Face Plate Height | 2.7" |
| Features | Tamper Resistant, Power Indication |
| Flammability | Rated V-0 Per UL 94 |
| Function | GFCI |
| Gfci | Yes |
| Grade | Heavy Duty Hospital Grade , Hospital Grade Fed. Spec |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | White |
| Included | Strap Material |
| Included Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Mount Hole Center To Center Height | 3.8" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Phase | 1 |
| Polarized | Yes |
| Product Datasheet | leviton-gfnl1-hg.pdf |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Amps | 10 kA |
| Shutter Mechanism | Delrin Acetal |
| Special Resistance Properties | Tamper Resistant |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | Yes |
| Tamper Resistant | Yes |
| Terminal Accom. | 14 AWG to 10 AWG Solid Or Stranded |
| Terminal Clamp Material | Brass |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back Or Side Wire |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Ul 94 Flammability Rating | V-0 |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 4.29 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Amps | Housing Color | Grade | Color | Face Plate Height | Grounding | Voltage | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFNL1-HGE | 15A | Black | Heavy Duty Hospital Grade | Black | 2.7" | Grounded | 125V AC | 2 | €113.58 | |
 |
GFNL1-HG | 15A | Brown | Heavy Duty Hospital Grade | Brown | 2.7" | Grounded | 125V AC | 2 | €113.58 | |
 |
GFNL1-HGG | 15A | Gray | Hospital Grade Fed. Spec | - | 2.7" | Grounded | 125V AC | 2 | €114.50 | |
 |
GFNL1-HGR | 15A | Red | Heavy Duty Hospital Grade | Red | 2.7" | Grounded | 125V AC | 2 | €113.58 | |
 |
GFNL1-HGI | 15/20A | Ivory | Hospital | Ivory | 2.71" | Grounded | 125V AC | 2 | €113.58 |
