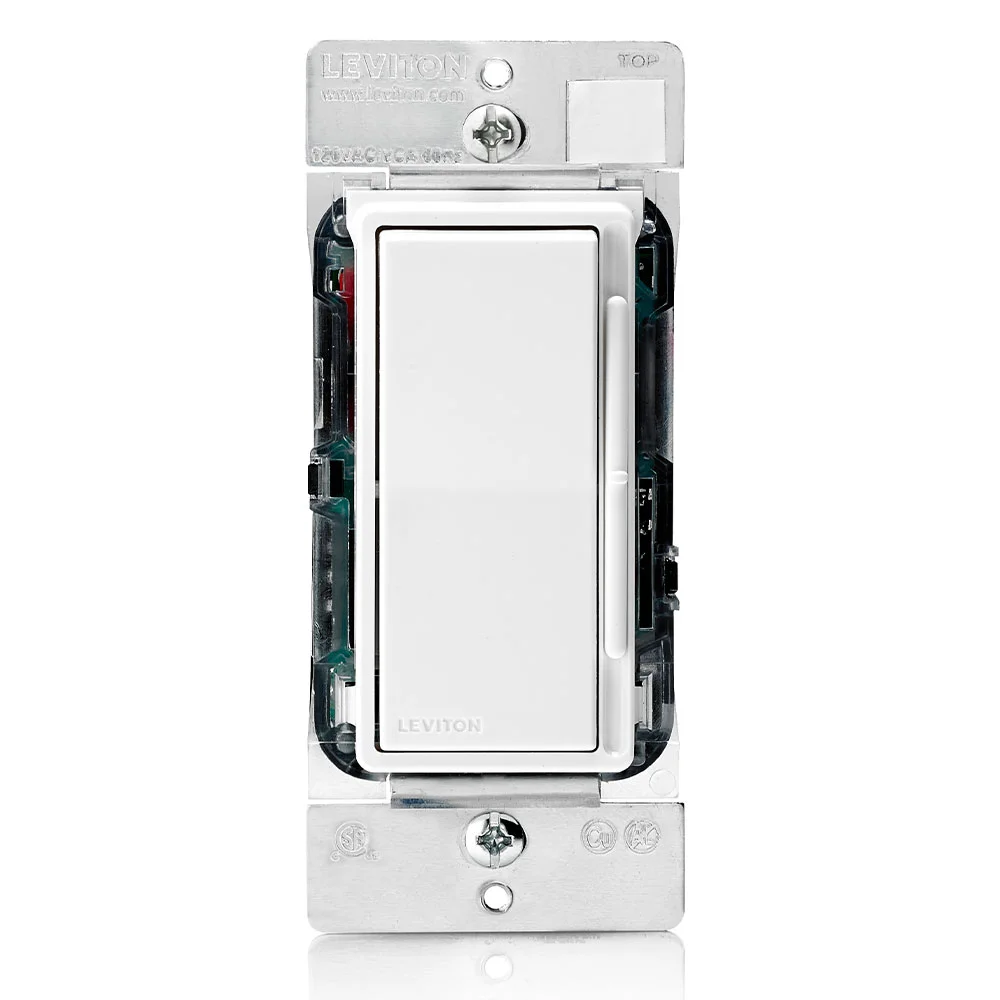

LEVITON DSX10-10Z Electro-Mechanical Dimmer Switch, 120 VAC, 1 Pole, Rocker Slide Operation, 3 Way
Item: CR9HBBModel: DSX10-10ZCross Ref: 791EA4
7 In Stock
Ships within 2 days via
5.00% off
€129.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lighting Dimmer |
| Action | Rocker Switch For On/Off, Slide Bar For Lighting Level Control |
| Ballast Type | Mark 10 Ballasts |
| Color | Ivory, Light Almond, White , White, Ivory, Light Almond |
| Dimming Type | Full Continuous Dimming |
| Frequency | 60 Hz |
| Illuminated | No |
| Includes | White, Ivory, Light Almond Color Kit |
| Includes Wall Plate | Wall Plate Not Included |
| Installation Location (motion Sensor) | Wall Switch Box |
| Lighting Technology | Fluorescent |
| Load Rating | 1000 VA |
| Load Rating @ 120v Ac | 1000 VA (Fluorescent) |
| Load Type | Electronic Mark 10 Powerline Fluorescent |
| Max. Capacity @ 120vac | 1000 VA (Fluorescent) |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 32°F |
| Neutral Required | No |
| Number Of Poles | 1 |
| Number Of Switches | 1 |
| Number Of Ways | 3 |
| Operating Voltage | 120V AC |
| Operating Voltage (motion Sensing And Dimming) | 120V AC |
| Preset | Slide Bar Preserves Desired Lighting Level |
| Product Datasheet | leviton-dsl06-1lz.pdf |
| Protection | Radio, TV Filter |
| Rated Frequency | 60 Hz |
| Series | DECORA SLIDE Series |
| Switch Style | Rocker On/Off, Mini-Slide Dimming |
| Switch Style (motion Sensing And Dimming) | Slide With On Rocker, Slide With Off Rocker |
| Switch Type | 1 Pole, 3 Way |
| Type | Dimmer |
| Voltage | 120V AC |
| Wall Plate | Not Included |
| Wallplate | Order Separately |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 10.49 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Color | Max. Capacity @ 120vac | Max. Capacity @ 277vac | Operating Voltage (motion Sensing And Dimming) | Type | Switch Type | Current Rating | Number Of Gangs | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DSL06-1LZ | Ivory, Light Almond, White | 300 W (CFL, 600 W (Incandescent), LED) | - | 120V AC | Dimmer | 1 Pole, 3 Way | - | 1 | €59.16 | |
 |
DSM10-1LZ | Ivory, Light Almond, White | 1000 VA (MLV), 1000 W (Incandescent), 400 W (CFL, LED) | - | 120V AC | Dimmer | 1 Pole, 3 Way | - | 1 | €98.96 | |
 |
DSE06-10Z | Ivory, Light Almond, White | - | - | 120V AC | Dimmer | 1 Pole, 3 Way | - | - | €164.04 | |
 |
DSX12-70Z | Ivory, Almond, White | - | - | 277V AC | - | - | - | - | €148.87 | |
 |
DSH06-70Z | Ivory, Light Almond, White | - | 6A (Fluorescent) | 277V AC | Dimmer | 1 Pole, 3 Way | - | - | €184.97 | |
 |
DS710-10Z | Ivory, Light Almond, White | 10A (LED), 1200 VA (Fluorescent) | 10A (LED), 1500 VA (Fluorescent) | 120V AC | Dimmer | 1 Pole, 3 Way | 10A | - | €152.62 | |
 |
IP710-D0Z | Ivory, Light Almond, White | - | 1500 VA (Fluorescent, LED) | 120/277V AC | Slide | 1 Pole, 3 Way | 10A | - | €155.86 |
