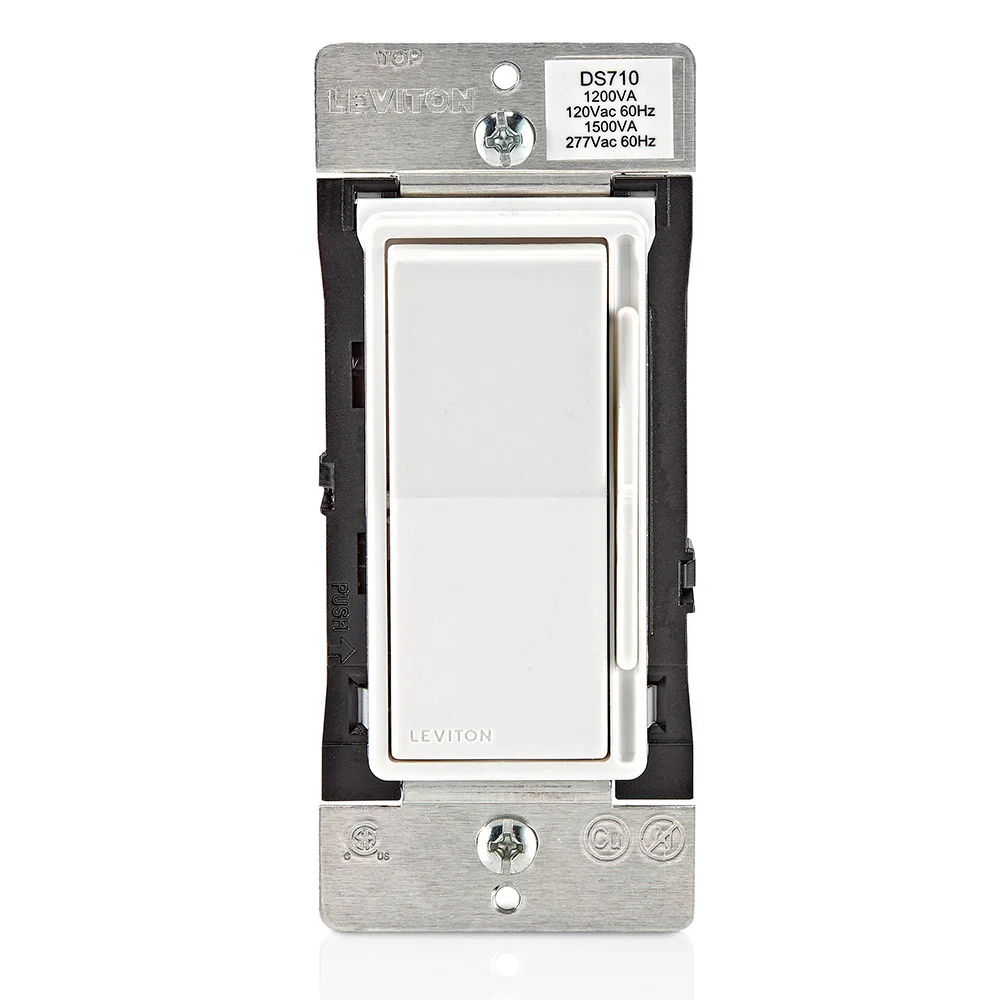

LEVITON DS710-10Z Lighting Di mmer, Fluorescent/LED, 1-Pole/3-Way, 120V AC, 10A /1200VA
Item: CR9HBHModel: DS710-10ZCross Ref: 791EA3
7 In Stock
Ships within 2 days via
10.00% off
€137.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lighting Dimmer |
| Ballast Type | Electronic Ballast |
| Color | Ivory, Light Almond, White |
| Current Rating | 10A |
| Dimming Method | 0-10V |
| Dimming Type | Full Continuous Dimming |
| Frequency | 60 Hz |
| Illuminated | No |
| Includes | White, Ivory, Light Almond Color Kit |
| Includes Wall Plate | Wall Plate Not Included |
| Installation Location (motion Sensor) | Wall Switch Box |
| Lighting Technology | Fluorescent, LED |
| Load Rating @ 120v Ac | 10A (LED), 1200 VA (Fluorescent) |
| Load Rating @ 277v Ac | 10A (LED), 1500 VA (Fluorescent) |
| Max. Capacity @ 120vac | 10A (LED), 1200 VA (Fluorescent) |
| Max. Capacity @ 277vac | 10A (LED), 1500 VA (Fluorescent) |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 32°F |
| Neutral Required | No |
| Number Of Poles | 1 |
| Number Of Switches | 1 |
| Number Of Ways | 3 |
| Operating Voltage | 120/277V AC |
| Operating Voltage (motion Sensing And Dimming) | 120V AC |
| Rated Frequency | 60 Hz |
| Series | DECORA SLIDE Series |
| Standards | Rohs Compliant |
| Switch Style | Rocker On/Off, Mini-Slide Dimming |
| Switch Style (motion Sensing And Dimming) | Slide With On Rocker, Slide With Off Rocker |
| Switch Type | 1 Pole, 3 Way |
| Voltage | 120V AC |
| Wall Plate | Not Included |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 10.49 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color | Max. Capacity @ 120vac | Max. Capacity @ 277vac | Operating Voltage (motion Sensing And Dimming) | Type | Switch Type | Current Rating | Number Of Gangs | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
DSL06-1LZ | Ivory, Light Almond, White | 300 W (CFL, 600 W (Incandescent), LED) | - | 120V AC | Dimmer | 1 Pole, 3 Way | - | 1 | €59.16 | |
 |
DSM10-1LZ | Ivory, Light Almond, White | 1000 VA (MLV), 1000 W (Incandescent), 400 W (CFL, LED) | - | 120V AC | Dimmer | 1 Pole, 3 Way | - | 1 | €98.96 | |
 |
DSE06-10Z | Ivory, Light Almond, White | - | - | 120V AC | Dimmer | 1 Pole, 3 Way | - | - | €164.04 | |
 |
DSX10-10Z | Ivory, Light Almond, White | 1000 VA (Fluorescent) | - | 120V AC | Dimmer | 1 Pole, 3 Way | - | - | €135.90 | |
 |
DSX12-70Z | Ivory, Almond, White | - | - | 277V AC | - | - | - | - | €148.87 | |
 |
DSH06-70Z | Ivory, Light Almond, White | - | 6A (Fluorescent) | 277V AC | Dimmer | 1 Pole, 3 Way | - | - | €184.97 | |
 |
IP710-D0Z | Ivory, Light Almond, White | - | 1500 VA (Fluorescent, LED) | 120/277V AC | Slide | 1 Pole, 3 Way | 10A | - | €155.86 |
