LEESON 048A11O2012 X065 / 48A11O2012J Fan and Blower Motor, 0.13 HP, 1 Phase, 60 Hz, 208-230V, 1200 RPM
Item: AJ2NDEModel: 048A11O2012Cross Ref: X065 / 48A11O2012J
7 In Stock
Ships within 2 days via
€95.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Design | No Design Code |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Open Air Over |
| Frame | 48Y |
| Hp | 1/8 hp |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Extended Studs Footless |
| Motor Shaft Rotation | Fixed Counter Clockwise |
| Motor Thermal Protection | Automatic |
| Mounting Type | Extended Studs, Footless |
| Nema Design | No Design Code |
| Phase | 1 |
| Power | 0.09 kW |
| Service Factor | 1 |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 208-230V AC |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 15.88 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: PSC 3 SPEED
- KVA Code: D
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Frame | Efficiency | Power | Motor Enclosure Design | Motor Mounting Type | Motor Thermal Protection | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

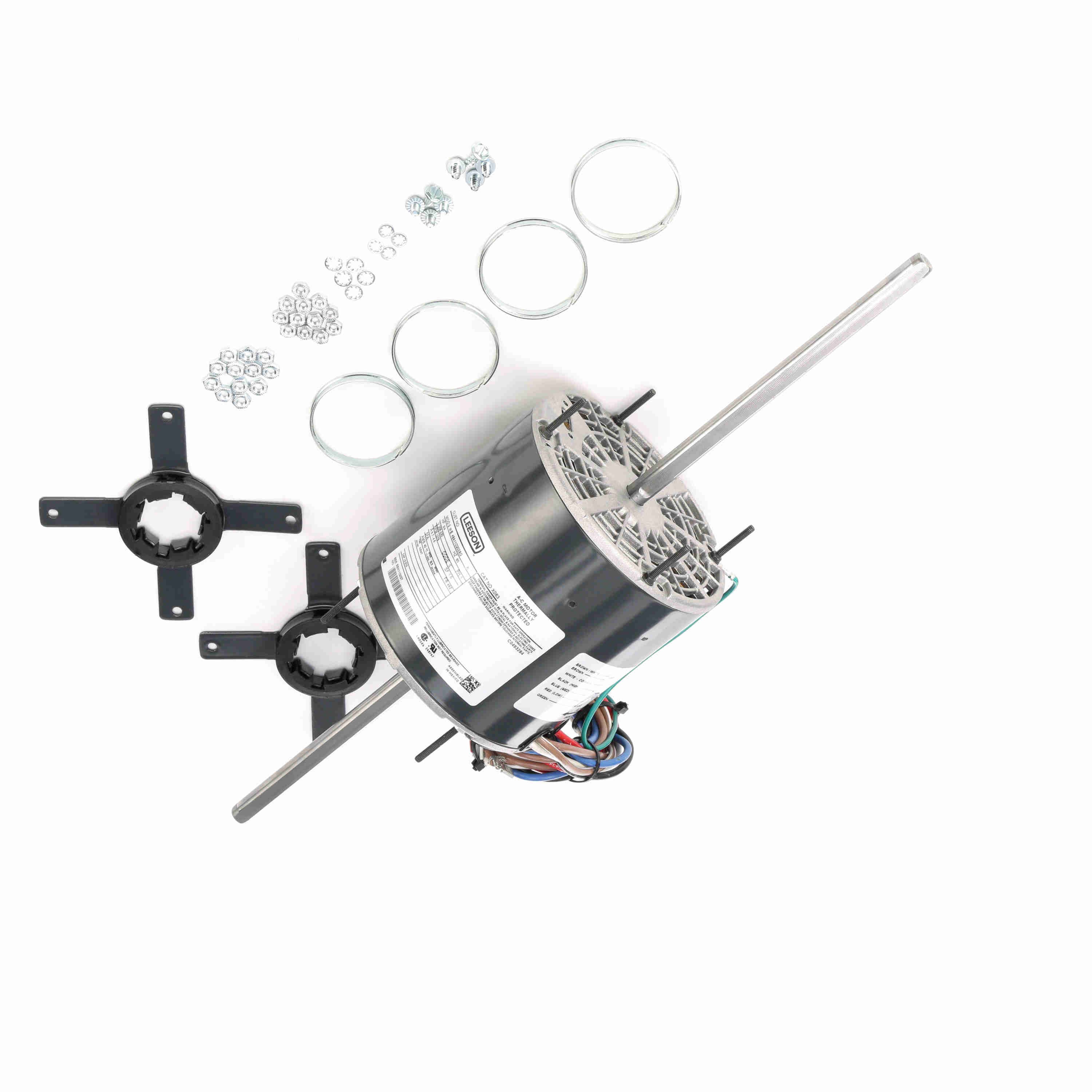

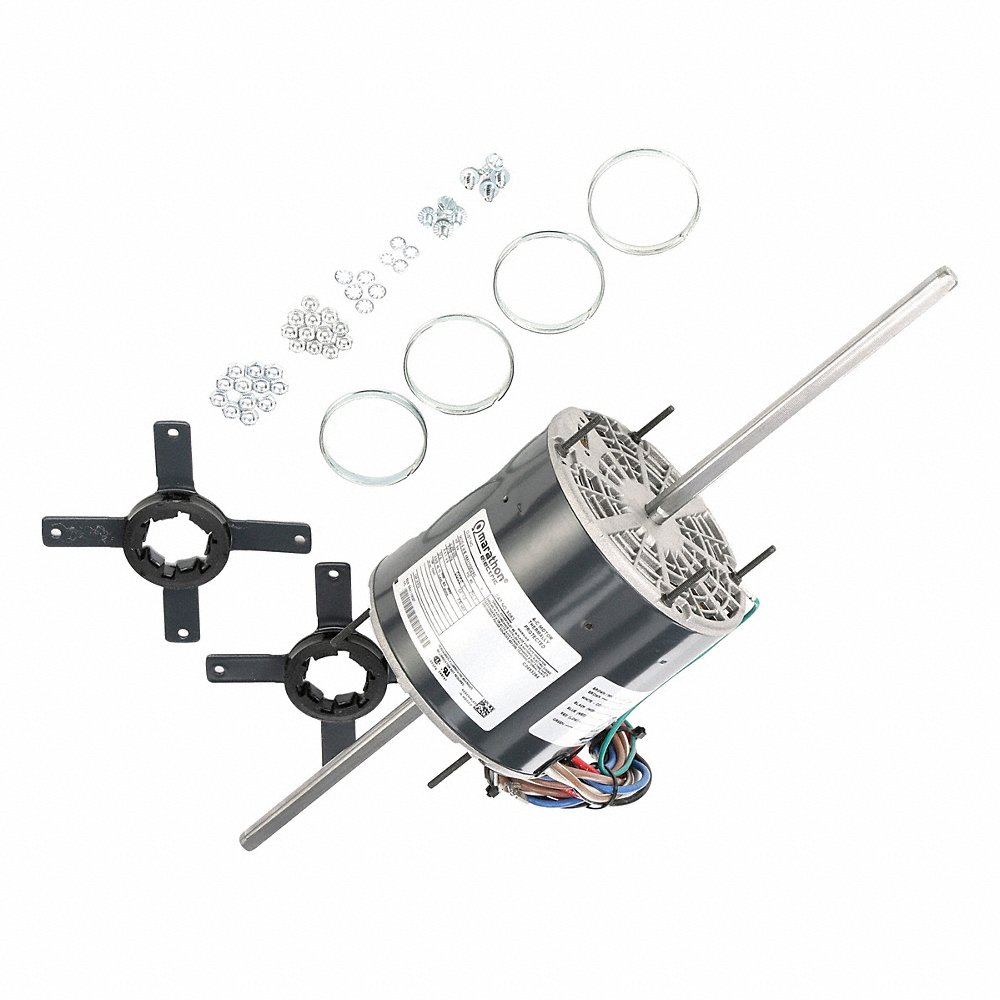

048A11O2028 | 3/4 hp | 48Z | 65.7% | 0.56 kW | Open Air Over | Extended Studs Footless | Automatic | 1 | €518.49 |
