LEVITON 7380-B Receptacle, Decorator Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Blue, Screw Terminals
Item: CR9HQTModel: 7380-BCross Ref: 792TY3
7 In Stock
Ships within 2 days via
10.00% off
€147.77 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Thermoplastic Nylon |
| Color | Blue |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Gfci | No |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | Blue |
| Hp | 1 hp |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Short Circuit Current Rating | 5 kA |
| Signal & Power Protection | Surge Protection |
| Standards | Ansi C73, Csa C22.2 Certified Type 3, Nema Wd-6, Ul 498 Ul 1449 3Rd Edition Listed |
| Surge Protection | Yes |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 9.68 |
| Ship length (cm) | 3.73 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Grade | Current Rating | Color | Nema Receptacle Configuration | Amps | Body Material | Receptacle Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

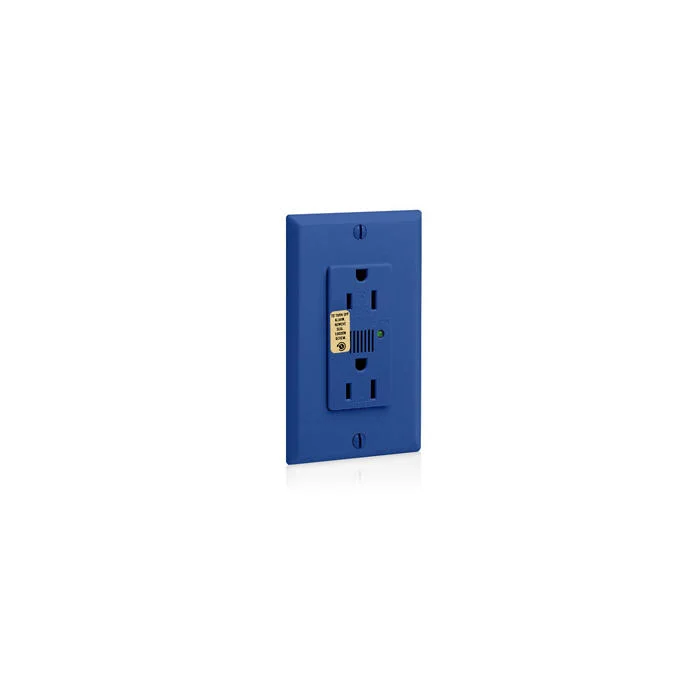

7280-B | Blue | Commercial | - | Blue | NEMA 5-15R | 15A | Polycarbonate | Decorator Duplex | €141.04 | |
 |
7280-I | Ivory | Commercial | 15A | Ivory | NEMA 5-15R | 15A | Thermoplastic Nylon | Decorator Duplex | €141.41 | |
 |

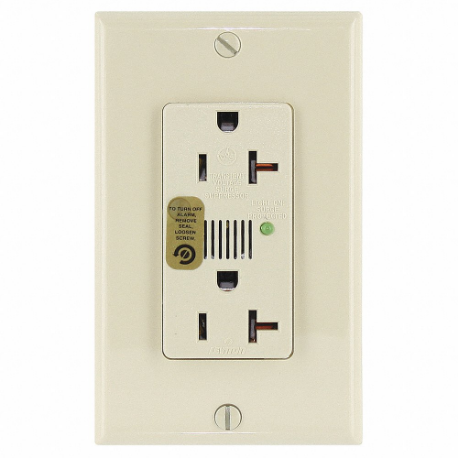

7380-I | Ivory | Commercial | 20A | Ivory | NEMA 5-20R | 20A | Thermoplastic Nylon | Decorator Duplex | €169.35 |
