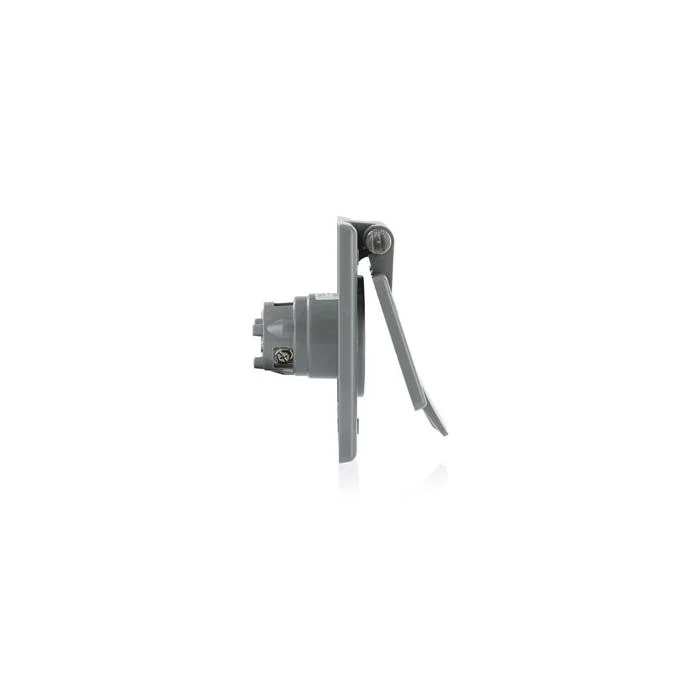

LEVITON 5278-CWP Straight Blade Flanged Inlet, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Item: CR9GYVModel: 5278-CWPCross Ref: 792TM8
7 In Stock
Ships within 2 days via
5.00% off
€116.62 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Receptacle |
| Ac Hp Ratings At Rated Voltage | 1/2 hp |
| Amps | 15A |
| Body Material | Nylon |
| Color | Gray |
| Cover And Plate Material | Glass Filled Thermoplastic |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Device Type | Straight Blade Flanged Inlet |
| Dielectric Voltage | Withstands 1500V Per UL498 |
| Environment | Dry |
| Face Material | Nylon |
| Flammability | Rated V-2 Per UL 94 |
| Flange Shape | Rectangular |
| Grounding | Grounding |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | Gray |
| Ip Rating | Not Rated |
| Line Contacts Material | Brass |
| Nema Enclosure Rating | NEMA 3R |
| Nema Plug Configuration | 5-15P |
| Nema Rating | NEMA WD-6 |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Product Datasheet | leviton-5278-cwp.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Weather Resistant |
| Strap Material | Nylon |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass 10-32 |
| Termination | Standard Wire Wells |
| Voltage | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 22.54 |
| Ship length (cm) | 27.62 |
| Ship width (cm) | 8.89 |
| Country of Origin | US |
