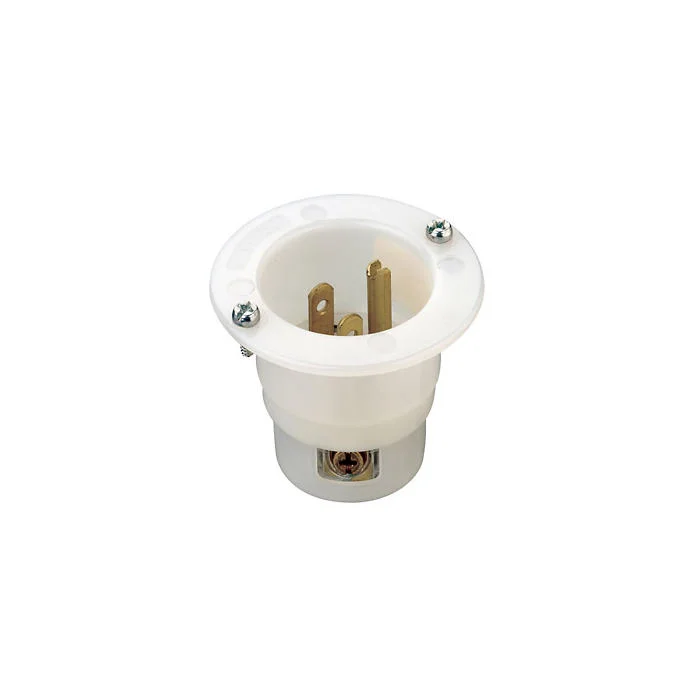

LEVITON 5278-C Straight Blade Flanged Inlet, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Item: CR9HPRModel: 5278-CCross Ref: 792TM7
7 In Stock
Ships within 2 days via
5.00% off
€37.49 /unit
This product can only be shipped in multiples of 30Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Blades/contacts | Solid Brass |
| Body Material | Super Tough Nylon |
| Color | White |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 15A |
| Device Type | Straight Blade Flanged Inlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Material | Nylon |
| Flammability | Rated V-2 Per UL 94 |
| Flange Shape | Rectangular |
| Grounding | Grounding |
| Housing Color | White |
| Ip Rating | Not Rated |
| Nema Enclosure Rating | Not Rated |
| Nema Plug Configuration | 5-15P |
| Nema Rating | NEMA WD-6 |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Product Datasheet | leviton-5278-c.pdf |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Weather Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13393 |
| Strap Material | Thermoplastic Nylon |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Termination | Back |
| Torque Range | 10 lbs.-in. to 14 lbs.-in. |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
| Wire Module | Nylon |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 23.5 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
