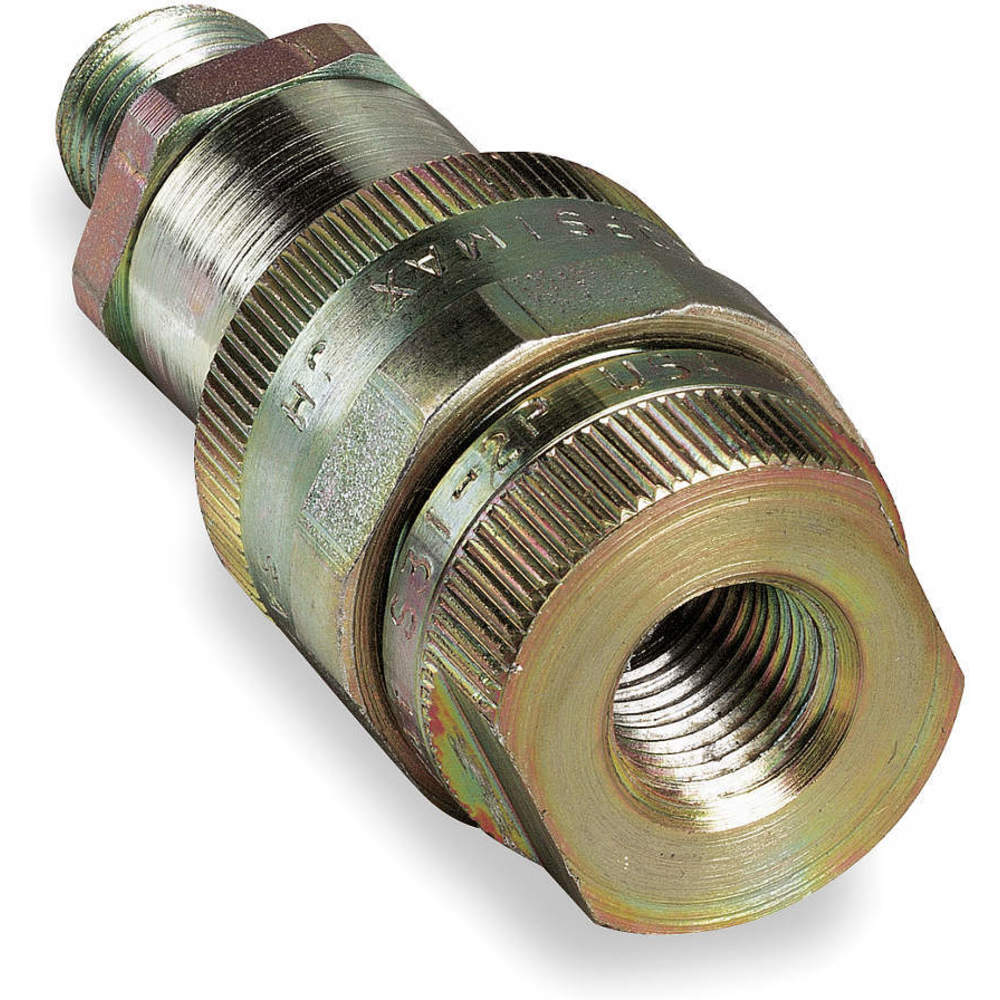

SAFEWAY S30-2P Quick Coupler Set 1/4 Inch Npt
Item: AC9UJNModel: S30-2PCross Ref: 3KD28
7 In Stock
Ships within 2 days via
10.00% off
€112.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Coupler Body |
| Body Material | Steel |
| Body Size | 1/4" |
| Connection Type | NPT |
| Coupling Component | Set |
| Coupling Locking Type | Thread-To-Connect |
| Coupling Size | 1/4" |
| Finish | Trivalent Chromium Zinc Plated |
| Finish/coating | Trivalent Chromium Zinc |
| Fitting Type | FNPT And MNPT |
| Flow Rate | 3 GPM |
| For Use With | Mfr. No. P-142, Rsm-50 |
| Hansen Interchange | WA 56517 00 & WA 56514 00 |
| Hose Fitting Gender | (1) Male, (1) Female |
| Includes Bearing | No |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Locking Mechanism | Screw Together |
| Max. Flow Rate | 12 LPM |
| Max. Outside Dia. | 1 3/16" |
| Max. Pressure | 10000 psi |
| Max. Working Pressure @ 70 F | 10000 psi |
| Maximum Vacuum | 27.4 in. hg |
| Operating Temp. Range | -40°F to +250°F |
| Overall Length | 2 17/64" |
| Parker Interchange | 3000-2 |
| Pipe Size Npt | 1/4 |
| Pull Ring Material | PTFE |
| Seal Material | Nitrile |
| Seal Type | Captive Valve |
| Seals | Captive Valve |
| Series | S30 Series |
| Shut Off | Double |
| Sleeve Material | Steel |
| Temp. Range | -40°F to +250°F |
| Thread Size | 1/4"-18 |
| Type | Coupler Set |
| Valve Design | Poppet |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 3.05 |
| HS code | 7307995045 |
| Country of Origin | US |
Product Variants
| Product | Model | Connection Type | Body Size | Body Material | Coupling Size | Valve Type | Temp. Range | Valve Design | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

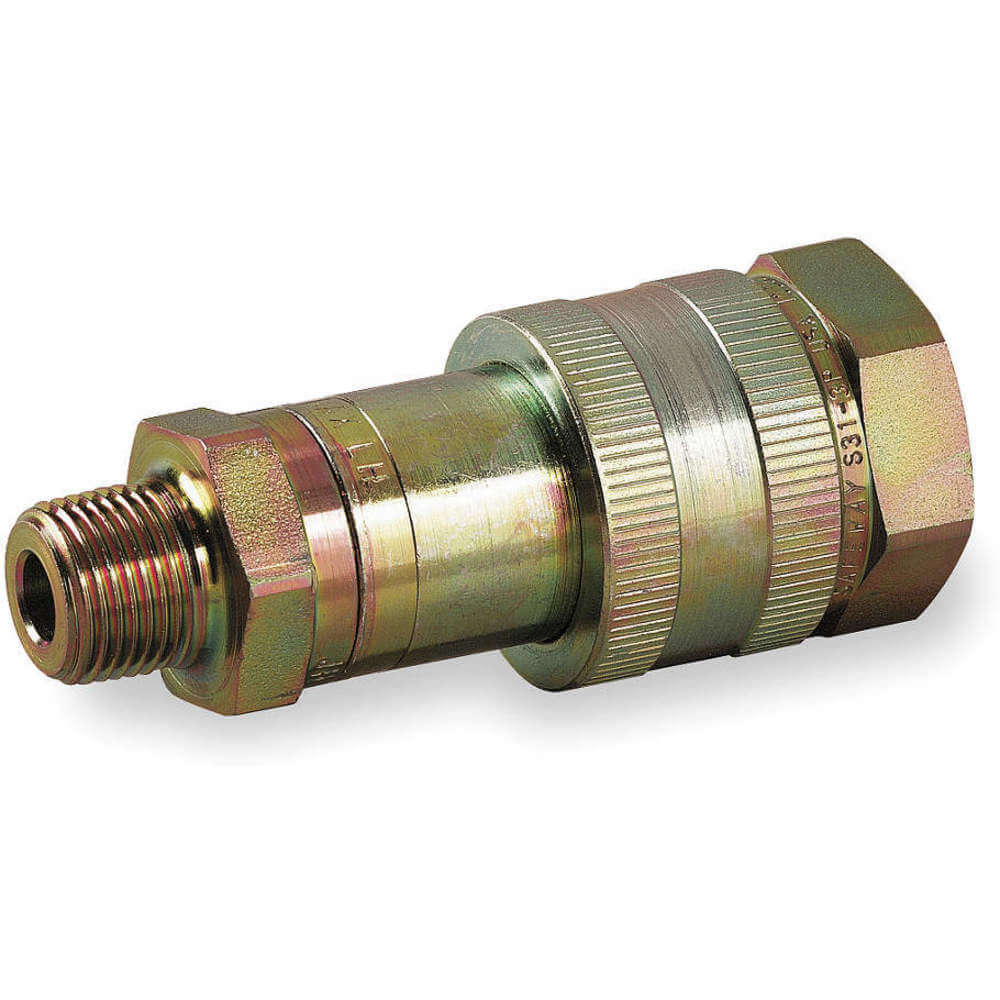

S30-3P | MNPT And FNPT | 3/8" | Steel | - | - | -40°F to +250°F | Poppet | 10000 psi | €107.15 |
