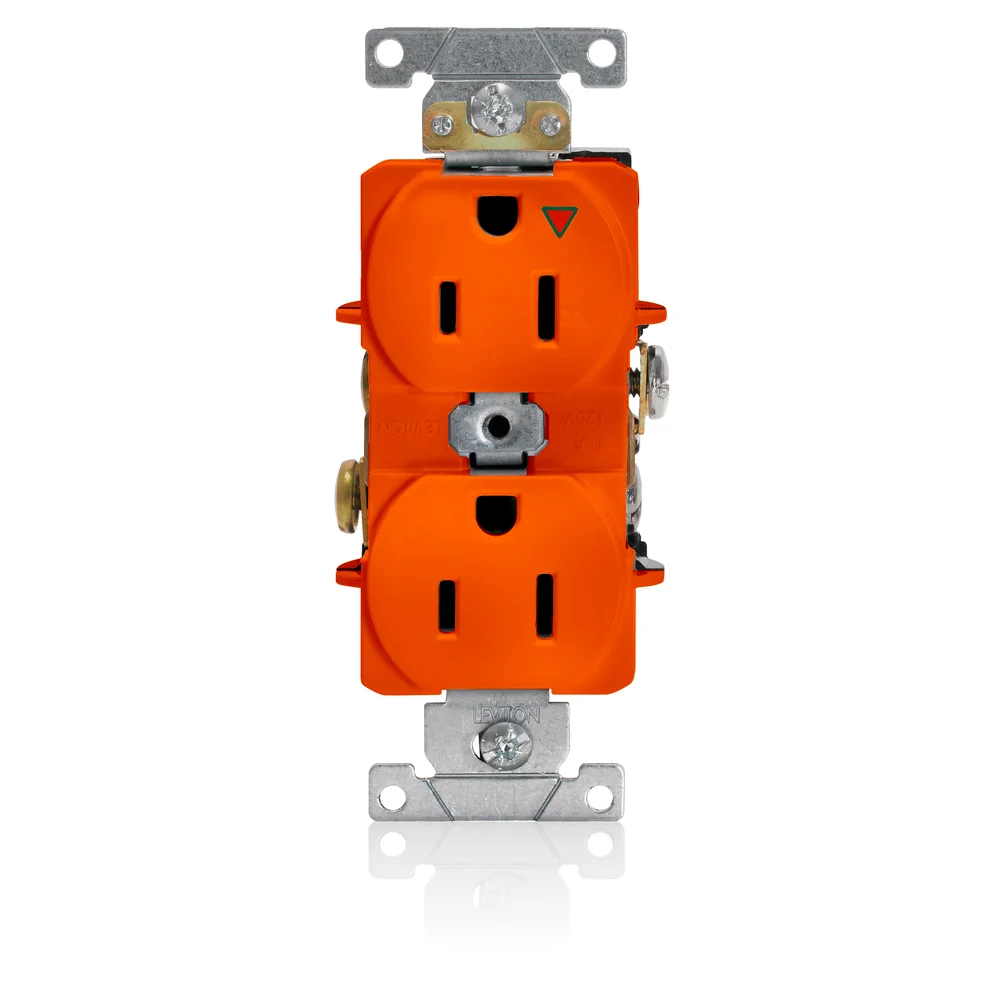

LEVITON 5262-IG Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Orange, Thermoplastic, Back and Side Wired
Item: CR9HTNModel: 5262-IGCross Ref: 792TL4
7 In Stock
Ships within 2 days via
5.00% off
€21.57 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1/2 hp |
| Amps | 15A |
| Body Material | PBT Polyester , PBT Polyester Blend |
| Color | Orange |
| Connection Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 1.11" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 3000V Minute |
| Face Material | PBT Polyester Blend |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.4" |
| Features | Smooth Face |
| Flammability | Rated V-0 Per UL 94 |
| Function | Isolated Ground |
| Gfci | No |
| Grade | Federal Specification , Heavy Duty Industrial Specification Grade |
| Grounding | Isolated Ground , Self Grounding |
| Grounding Screw | #8 Hex Head, Triple Drive Bass |
| Housing Color | Orange |
| Hp | 1/2 hp |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Phosphor Bronze |
| Line Contacts Thickness | 0.03" |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +75°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5262-ig.pdf |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Signal & Power Protection | Isolated Ground |
| Strap Finish | Galvanized |
| Strap Grade | Grade G60 |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C Temperature Rise At Full Rated Current |
| Terminal Accom. | #14 AWG to #10 AWG |
| Terminal Id | Brass Hot, Silver Neutral, Green Ground |
| Terminal Screws | #8 Triple Drive Brass |
| Termination | Back And Side Wire |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.38 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Grounding | Body Material | Color | Nema Rating | Operating Temp. | Receptacle Type | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5262-IGB | Brown | Isolated Ground | Nylon | Brown | NEMA WD-6 | -40°C to +60°C | Duplex | 15A | €22.76 | |
 |
5262-IGI | Ivory | Isolated Ground | Nylon | Ivory | NEMA WD-1 And NEMA WD-6 | -40°C to +75°C | Duplex | 15A | €22.41 | |
 |
5262-IGR | Red | Isolated Ground | Nylon | - | - | - | Duplex | 15A | €22.76 | |
 |
5262-IGW | White | Isolated Ground | Nylon | White | NEMA WD-6 | -40°C to +60°C | Duplex | 15A | €22.76 | |
 |
5262-IGG | Gray | Isolated Ground | Thermoplastic | Gray | NEMA WD-6 | -40°C to +60°C | Duplex | 15A | €22.31 |
