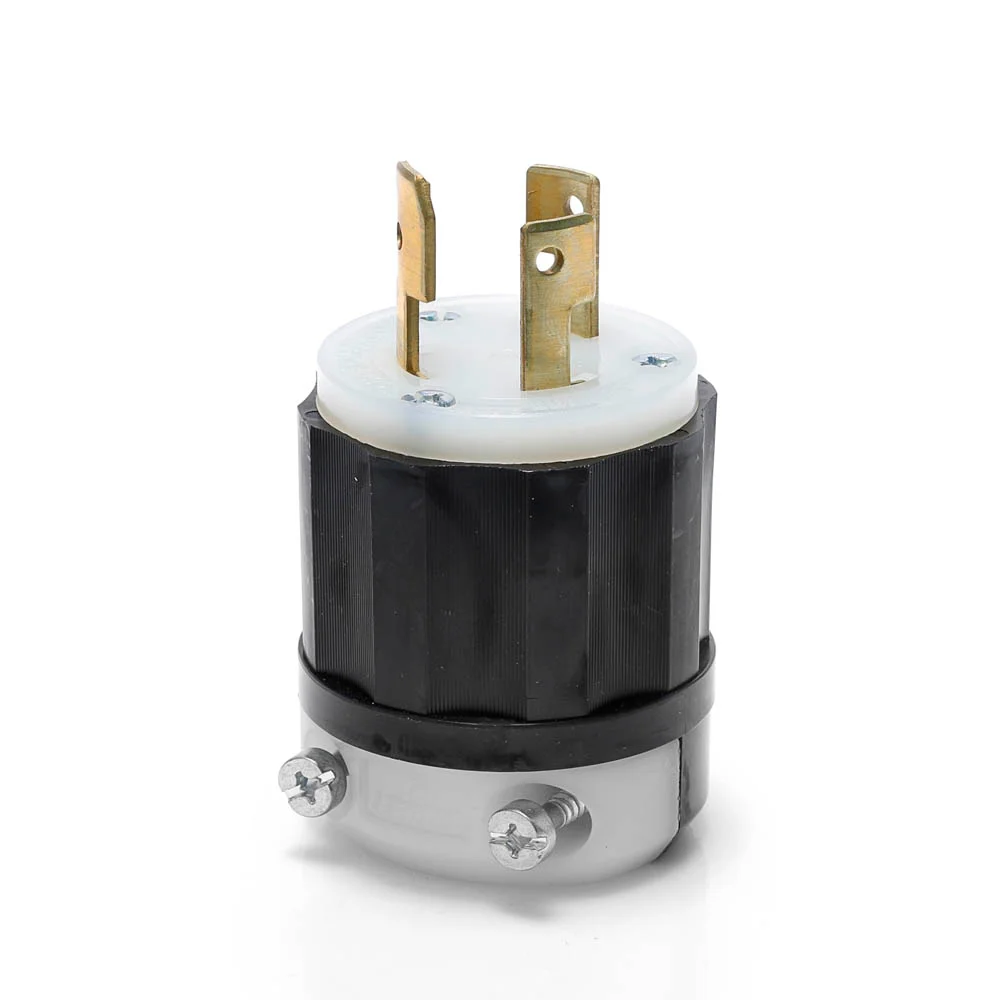

LEVITON 3331-C Locking Plug, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Black/White
Item: CR9HKQModel: 3331-CCross Ref: 792TG0
7 In Stock
Ships within 2 days via
5.00% off
€59.57 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 30A |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Length | 1.859" |
| Body Material | Nylon |
| Clamp Insert Material | Nylon |
| Color | Black And White |
| Connection Orientation | Straight |
| Cord Range | 0.385" to 0.93" |
| Cord-clamp | Nylon |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 1 3/8" , 1.375" |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Max. Cable Dia. | 0.93" |
| For Min. Cable Dia. | 0.385" |
| Grade | General Use |
| Grounding | Non Grounded , Non Grounding |
| Housing Color | Black, White |
| Housing Material | Nylon |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Plug Configuration | Non NEMA |
| Nema Rating | NEMA WD-6 |
| No. Of Blades | 3 |
| No. Of Poles | 3 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 1.563" |
| Phase | 1 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV, Sunlight Resistant |
| Shrouded | No |
| Temp. Rise | Max. 30°C At 250 Cycles Ol At 200 Pct Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Torque | 10 lbs.-in. to 14 lbs.-in. |
| Ul 94 Flammability Rating | HB |
| Voltage | 125/250V AC |
| Wire Connection Type | Screw Terminal |
| Wire Gauge | 16 AWG to 8 AWG |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 12.54 |
| Ship length (cm) | 30.01 |
| Ship width (cm) | 5.87 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Phase | Shrouded | Ip Rating | Face Dia. | Max. Wire Size | Min. Wire Size | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24W07 | Yellow | 1 | - | IP66, IP67, IP69K | 1.5" | 10 AWG | 18 AWG | Non Grounded | €119.26 | |
 |
7567-C | Black, White | 3 | No | Not Rated | 1.97" | 10 AWG | 18 AWG | Non Grounded | €46.47 | |
 |
7411-C | Black, White | 3 | No | Not Rated | 1.969" | 10 AWG | 14 AWG | Non Grounded | €81.59 | |
 |
9965-C | Black, White | 3 | No | - | 1.97" | 10 AWG | 16 AWG | Non Grounded | €44.32 | |
 |
3431-C | Black, White | 3 | No | Not Rated | 1.469" | 8 AWG | 14 AWG | Non Grounded | €101.29 | |
 |
6365CR | White, Yellow | - | Yes | Not Rated | 2 14/25" | 4 AWG | 10 AWG | Grounded | €247.36 | |
 |
6361CR | White, Yellow | 1 | Yes | Not Rated | 2 14/25" | 4 AWG | 10 AWG | Grounded | €304.12 |
