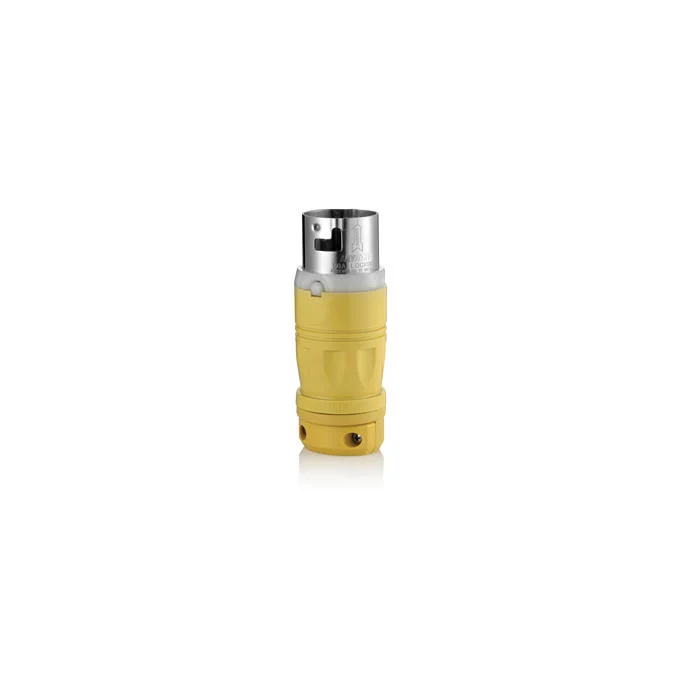

LEVITON 6361CR Grounding Locking Plug, 125 VAC, 50 A, 2 Poles, 3 Wires, Yellow/White
Item: CR9HDCModel: 6361CRCross Ref: 792TX0
7 In Stock
Ships within 2 days via
5.00% off
€288.91 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 50A |
| Assembly Screws Finish | Nickel Plated |
| Assembly Screws Material | Brass |
| Blade Material | Nickel Plated Brass |
| Body Material | Nylon |
| Cable Clamp Screw Grade | Grade 304 |
| Cable Clamp Screw Material | Stainless Steel |
| Cable Clamp Screw Type | Philips Head |
| Color | Yellow And White |
| Compression Nut, Strain Relief | Nylon |
| Connection Orientation | Straight |
| Connector Contact - Spring Finish | Nickel Plated |
| Connector Contact - Spring Material | Brass |
| Connector Contact - Spring Thickness | 0.041" |
| Contact - Binding Plate Material | Brass |
| Contact - Binding Plate Thickness | 0.1" |
| Contact Binding Plate Finish | Nickel Plated |
| Contact Rivet Finish | Nickel Plated |
| Contact Rivet Material | Brass |
| Cord Range | 0.68" to 1.125" |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 50A |
| Device Type | Locking Plug |
| Dielectric Voltage Withstand | 2000V Minimum Per UL 498 |
| Dust Shield | Santoprene TPE |
| Environment | Corrosive |
| Face Dia. | 2 14/25" |
| Face Diameter | 2.56" |
| Face Module | Nylon |
| Flammability | UL94 V-2 |
| For Environment | Corrosive |
| For Maximum Cable Diameter | 1 1/8" |
| For Minimum Cable Diameter | 17/25" |
| Grade | General Use |
| Grommet/gasket | Santoprene TPE |
| Ground Post Finish | Nickel Plated |
| Ground Post Material | Brass |
| Ground Shunt Finish | Nickel Plated |
| Ground Shunt Material | Bronze |
| Grounding | Grounded , Grounding |
| Housing Color | White, Yellow |
| Ip Rating | Not Rated |
| Market | Industrial |
| Max. Operating Temp. | 75°C |
| Max. Wire Size | 4 AWG |
| Max. Working Voltage | 125V |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 10 AWG |
| Nema Plug Configuration | Non-NEMA |
| Nema Rating | NEMA Non |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Operating Temp. | -40°C to +75°C |
| Phase | Single |
| Plug Blade Finish | Nickel Plated |
| Plug Blade Shroud Grade | Grade 302, Grade 304 |
| Plug Blade Shroud Material | Stainless Steel |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | Yes |
| Standard Cable Clamp | Nylon |
| Temp. Rise | Max. 30 Temp Rise At Full-Rated Current After 150 Cycles Of Ol At 150% Rated Dc Current |
| Terminal Accom. | AWG #10 to #4 Stranded Wire |
| Terminal Block Finish | Nickel Plated |
| Terminal Block Material | Copper |
| Terminal Block Size | 0.062" |
| Terminal Id | X, W, Y, And Green For Ground |
| Terminal Screws Material | Stainless Steel |
| Terminal Set Screw Grade | Grade 302, Grade 304 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Chamber | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 37.47 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Poles | Number Of Blades | Housing Color | Current Rating | Voltage Rating | Phase | Shrouded | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24W07 | 3 | 3 | Yellow | 10/15A | 125/250V AC | Single | - | IP66, IP67, IP69K | €119.26 | |
 |
7567-C | 3 | 3 | Black, White | 10/15A | 125/250V AC | 3.0 | No | Not Rated | €46.47 | |
 |
7411-C | 4 | 4 | Black, White | 20A | 120/208V AC | 3.0 | No | Not Rated | €81.59 | |
 |
9965-C | 3 | 3 | Black, White | 20A | 125/250V AC | 3.0 | No | - | €44.32 | |
 |
3431-C | 4 | 4 | Black, White | 30A | 120/208V AC | 3.0 | No | Not Rated | €101.29 | |
 |
6365CR | 3 | 4 | White, Yellow | - | - | - | Yes | Not Rated | €247.36 | |
 |
3763C | 2 | 3 | Black, White | 50A | 250V AC | Single | Yes | Not Rated | €227.99 |
