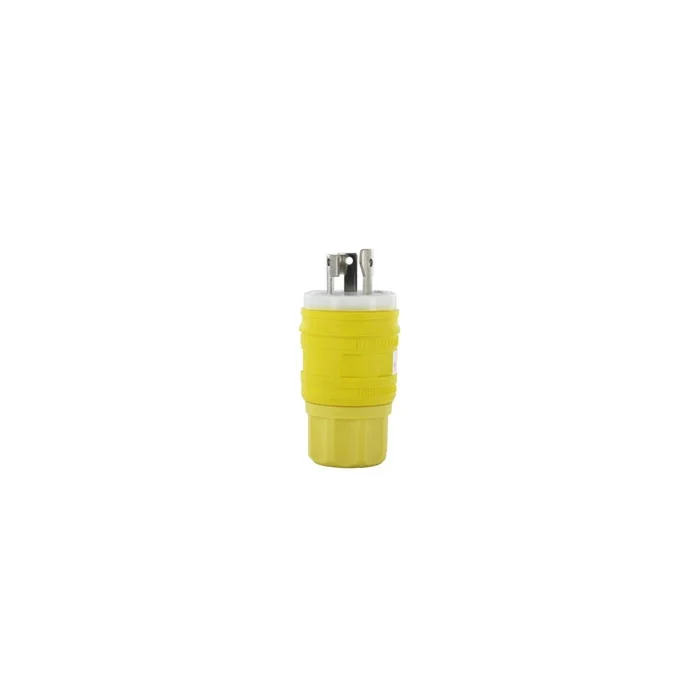

LEVITON 24W07 Cable Mount Non-Grounding Watertight Locking Plug, 1 Phase, 125/250 VAC, 10/15 A, 3 Poles, 3 Wires, Yellow
Item: CR9HCWModel: 24W07Cross Ref: 792T60
7 In Stock
Ships within 2 days via
5.00% off
€113.30 /unit
This product can only be shipped in multiples of 20Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps | 15A |
| Assembly Screws Material | Stainless Steel |
| Blade Material | Nickel Plated Brass |
| Blades/contacts | Electroless Nickel Coated Brass |
| Body Interior | Nylon |
| Body Material | Santoprene TPV |
| Bushing Material | Santoprene TPV |
| Color | Yellow |
| Compression Nut, Strain Relief | Nylon |
| Connection Orientation | Straight |
| Cord Grip Range | 0.234" to 0.687" |
| Current Limiting | Full Rated Current |
| Current Rating | 10/15A |
| Device Type | Locking Plug |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Wet |
| Face Diameter | 1.5" |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Washdown |
| For Maximum Cable Diameter | 0.687" |
| For Minimum Cable Diameter | 0.234" |
| Grade | General Use |
| Grounding | Non Grounded , Non Grounding |
| Housing Color | Yellow |
| Housing Material | Santoprene Tpv |
| Ip Rating | IP66, IP67, IP69K |
| Market | Industrial |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 60°C |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | Non-NEMA |
| Nema Rating | NEMA WD-6 |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Electroless Nickel Coated |
| Terminal Screws Material | Brass |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 22.86 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Number Of Poles | Number Of Blades | Housing Color | Current Rating | Voltage Rating | Phase | Shrouded | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7567-C | 3 | 3 | Black, White | 10/15A | 125/250V AC | 3.0 | No | Not Rated | €46.47 | |
 |
7411-C | 4 | 4 | Black, White | 20A | 120/208V AC | 3.0 | No | Not Rated | €81.59 | |
 |
9965-C | 3 | 3 | Black, White | 20A | 125/250V AC | 3.0 | No | - | €44.32 | |
 |
3431-C | 4 | 4 | Black, White | 30A | 120/208V AC | 3.0 | No | Not Rated | €101.29 | |
 |
6365CR | 3 | 4 | White, Yellow | - | - | - | Yes | Not Rated | €247.36 | |
 |
6361CR | 2 | 3 | White, Yellow | 50A | 125V AC | Single | Yes | Not Rated | €304.12 | |
 |
3763C | 2 | 3 | Black, White | 50A | 250V AC | Single | Yes | Not Rated | €227.99 |
