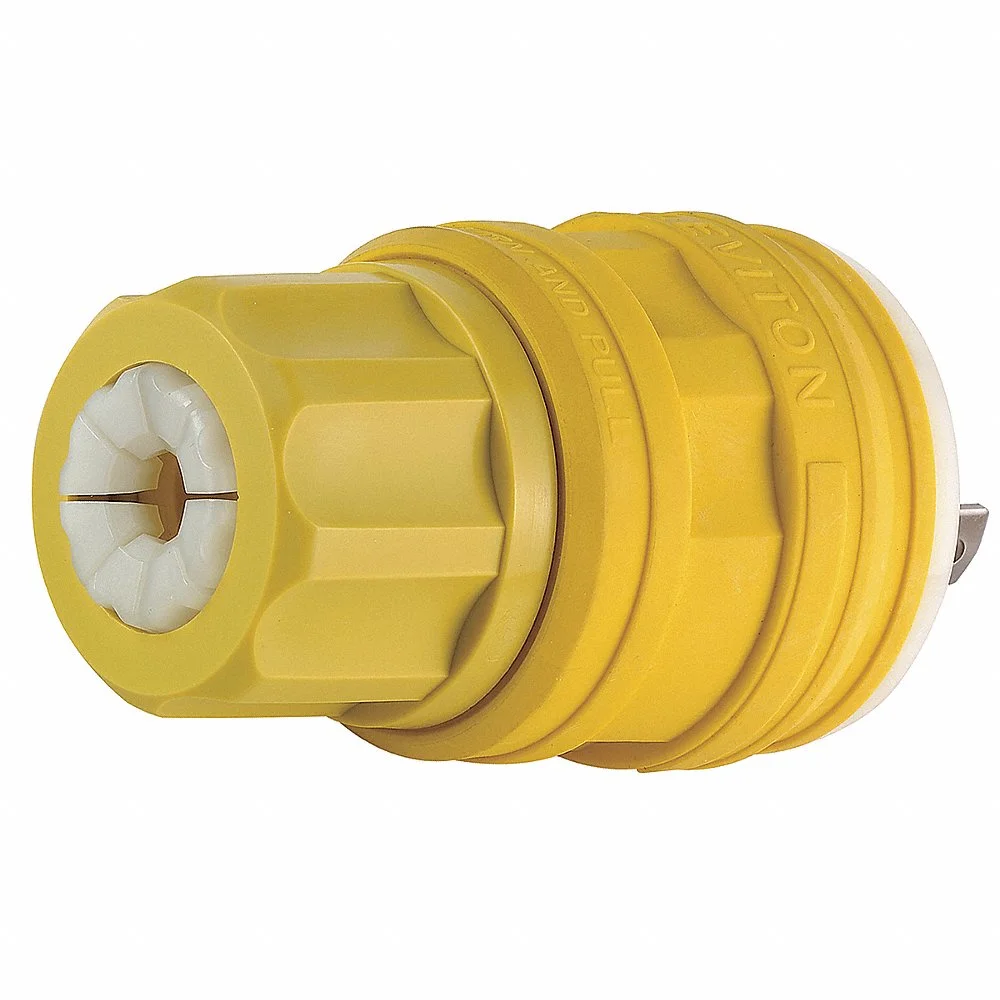

LEVITON 26W09 Non-Grounding Locking Plug, 3-Phase, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Yellow
Get it by Tuesday, Jun 30
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€93.80 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Locking Plug |
| Amps | 20A |
| Blade Material | Nickel Plated Brass |
| Body Length | 3.58" |
| Body Material | Rubber |
| Connection Orientation | Straight |
| Face Dia. | 2.31" |
| For Environment | Washdown |
| For Max. Cable Dia. | 7/8" |
| For Min. Cable Dia. | 3/8" |
| Grade | General Use |
| Grounding | Non Grounded |
| Housing Color | Yellow |
| Ip Rating | IP66, IP67, IP68, IP69K |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Nema Plug Configuration | Non NEMA |
| No. Of Blades | 4 |
| No. Of Poles | 4 |
| Phase | 3.0 |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Shrouded | No |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 120/208V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 29.21 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Phase | Shrouded | Ip Rating | Face Dia. | Max. Wire Size | Min. Wire Size | Grounding | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24W07 | Yellow | 1 | - | IP66, IP67, IP69K | 1.5" | 10 AWG | 18 AWG | Non Grounded | €119.26 | |
 |
7567-C | Black, White | 3 | No | Not Rated | 1.97" | 10 AWG | 18 AWG | Non Grounded | €46.47 | |
 |
7411-C | Black, White | 3 | No | Not Rated | 1.969" | 10 AWG | 14 AWG | Non Grounded | €81.59 | |
 |
9965-C | Black, White | 3 | No | - | 1.97" | 10 AWG | 16 AWG | Non Grounded | €44.32 | |
 |
3431-C | Black, White | 3 | No | Not Rated | 1.469" | 8 AWG | 14 AWG | Non Grounded | €101.29 | |
 |
6365CR | White, Yellow | - | Yes | Not Rated | 2 14/25" | 4 AWG | 10 AWG | Grounded | €247.36 | |
 |
6361CR | White, Yellow | 1 | Yes | Not Rated | 2 14/25" | 4 AWG | 10 AWG | Grounded | €304.12 |
