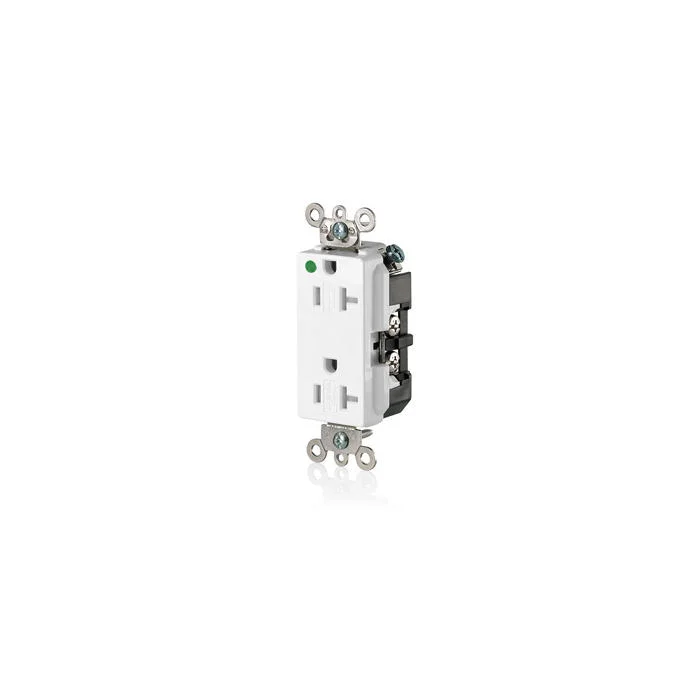

LEVITON 16362-SGW Self Grounding Tamper Resistant Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White, Nylon
Item: CR9JALModel: 16362-SGWCross Ref: 792T24
7 In Stock
Ships within 2 days via
5.00% off
€43.89 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Base Material | Nylon |
| Clamp Nuts Finish | Zinc Plated |
| Clamp Nuts Material | Steel |
| Color | White |
| Connection Orientation | Straight |
| Cover Material | Nylon |
| Cover Type | No Cover |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Plate Height | 2.6" |
| Features | Tamper Resistant, Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Extra Heavy Duty Hospital Grade , Hospital |
| Ground Clips Finish | Nickel Plated |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Nickel Plated |
| Grounding Screw Material | Brass |
| Housing Color | White |
| Hp Rating | 1 hp |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 1/25" |
| Max. Working Voltage | 125V |
| Mounting Hardware Included | Yes |
| Mounting Screws Material | Triple Combination Head, Steel |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Special Resistance Properties | Tamper Resistant |
| Strap Finish | Nickel Plated |
| Strap Material | Brass |
| Temp. Rise | Max. 30°C At 250 Cycles Ol At 200 Pct Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Nickel Plated |
| Terminal Screws Material | Brass |
| Termination | Back Or Side Wire |
| Torque Range | 14 lbs.-in. to 16 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 3.86 |
| Country of Origin | MX |
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Housing Color | Grounding | Color | Nema Rating | Mount Hole Center-to-center Height | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MT163-ILI | Decorator Duplex | Modular Wiring | Ivory | Grounded | Ivory | NEMA WD-1 And NEMA WD-6 | - | 20A | €73.88 | |
 |
8380-IGI | Decorator Duplex | Screw Terminals | Ivory | Isolated Ground | - | - | - | 20A | €159.23 | |
 |
8380-I | Decorator Duplex | Screw Terminals | Ivory | Grounded | - | - | - | 20A | €146.22 | |
 |
MT163-ILR | Decorator Duplex | Modular Wiring | Red | Grounded | Red | NEMA WD-1 And NEMA WD-6 | - | 20A | €73.88 | |
 |
MT830-ILI | Duplex | Modular Wiring | Ivory | Grounded | Ivory | NEMA WD-6 | 3.3" | 20A | €87.29 | |
 |
MT830-IG | Duplex | Modular Wiring | Orange | Isolated Ground | Orange | NEMA WD-6 | 4.1" | 20A | €65.63 | |
 |
MT830-ILR | Duplex | Modular Wiring | Red | Grounded | Red | NEMA WD-6 | 3.3" | 20A | €87.29 |
