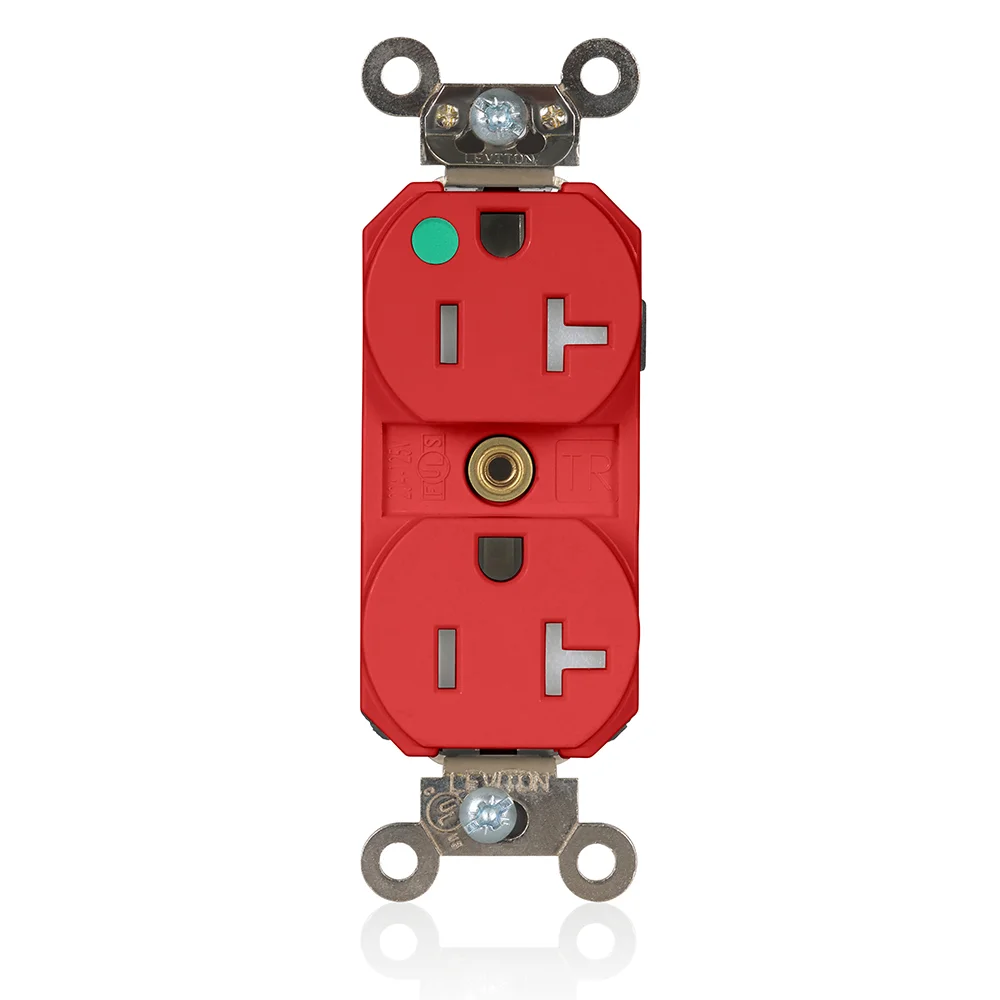

LEVITON MT830-ILR Receptacle, Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Modular Wiring | CR9HXA 792UP1

LEVITON MT830-ILR Illuminated Isolated Grounding Tamper Resistant Straight Blade Receptacle, 1 Phase, 125 VAC, 20 A, 2 Poles, 3 Wires, Red

Item: CR9HXAModel: MT830-ILRCross Ref: 792UP1
7 In Stock

Ships within 2 days via

€87.29
5.00% off
€82.92 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Amps 20A
Body Material Nylon
Color Red
Connection Orientation Straight
Cover Type No Cover
Current Limiting Full Rated Current
Current Rating 20A
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Nylon
Features Tamper Resistant, Illuminated, Smooth Face
Gfci No
Grade Extra Heavy Duty Hospital Grade , Hospital Grade Fed. Spec.
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Housing Color Red
Hp Rating 1 hp
Illumination 100000 hrs. Green LED's
Includes Mounting Hardware Yes
Lead Identification Leads Identified In Accordance With UL 498 (Black, White And Green)
Line Contacts Material Brass
Line Contacts Thickness 1/25"
Locking Pins Solid Brass
Mount Hole Center-to-center Height 3.3"
Mounting Hardware Included Yes
Mounting Type Flush
Nema Rating NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Operating Temp. -40°C to +60°C
Phase Single
Polarized Yes
Product Datasheet leviton-mt830-ilr.pdf
Receptacle Type Duplex
Resistance Property General Purpose
Shutter Mechanism Delrin Acetal
Special Resistance Properties Tamper Resistant
Standards Ansi, Csa Certified, Rohs Compliant, Ul 498 Fed Spec
Strap Finish Nickel Plated
Strap Material Brass
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Termination Modular
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Type Modular Wiring
Wire Connection Types Snap In Module

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)23.5
Ship length (cm)27.31
Ship width (cm)4.11
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelReceptacle TypeWire Connection TypeHousing ColorGroundingColorNema RatingMount Hole Center-to-center HeightCurrent RatingPrice
LEVITON MT163-ILI Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Modular Wiring | CR9HRM 792UN4 MT163-ILIDecorator DuplexModular WiringIvoryGroundedIvoryNEMA WD-1 And NEMA WD-6-20A€73.88
LEVITON 8380-IGI Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals | CR9HRQ 792U48 8380-IGIDecorator DuplexScrew TerminalsIvoryIsolated Ground---20A€159.23
LEVITON 8380-I Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals | CR9HRU 792U47 8380-IDecorator DuplexScrew TerminalsIvoryGrounded---20A€146.22
LEVITON MT163-ILR Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Modular Wiring | CR9HRY 792UN5 MT163-ILRDecorator DuplexModular WiringRedGroundedRedNEMA WD-1 And NEMA WD-6-20A€73.88
LEVITON MT830-ILI Receptacle, Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Modular Wiring | CR9HWJ 792UP0 MT830-ILIDuplexModular WiringIvoryGroundedIvoryNEMA WD-63.3"20A€87.29
LEVITON MT830-IG Receptacle, Duplex, 5-20R, 20 A, 125V AC, Orange, 2 Poles, Modular Wiring | CR9HWX 792UN8 MT830-IGDuplexModular WiringOrangeIsolated GroundOrangeNEMA WD-64.1"20A€65.63

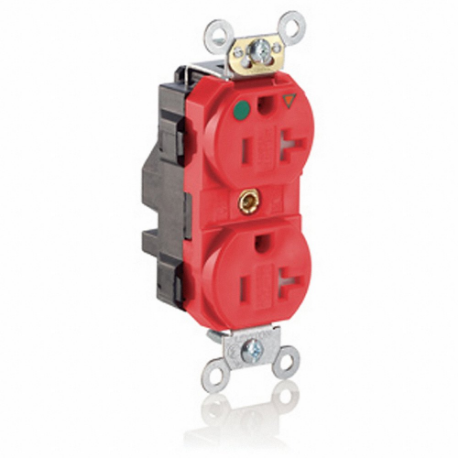

LEVITON MT830-IGR Receptacle, Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Modular Wiring | CR9HXB 792UN9 MT830-IGRDuplexModular WiringRedIsolated GroundRedNEMA WD-64.1"20A€65.63
