LEVITON 16352-W Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White, Thermoplastic
Item: CR9JBPModel: 16352-WCross Ref: 792T15
7 In Stock
Ships within 2 days via
5.00% off
€15.46 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Thermoplastic , Thermoplastic Nylon |
| Clamp Nuts Finish | Zinc Plated |
| Clamp Nuts Material | Steel |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic Nylon |
| Face Plate Height | 2.6" |
| Face Plate Width | 1.6" |
| Features | Smooth Face |
| Fed Spec Rated | Yes |
| Gfci | No |
| Grade | Federal Specification , Heavy Duty Industrial Specification Grade |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | White |
| Hp | 1 hp |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-1, NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-16352-w.pdf |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Signal & Power Protection | Standard Protection |
| Strap Finish | Zinc Plated |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass 10-32 |
| Termination | Back Or Side Wire |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.33 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Grounding | Face Plate Height | Contact Material | Face Plate Width | Body Material | Color | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

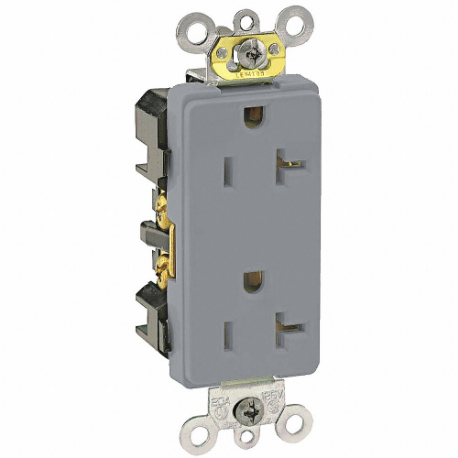

16362-GY | Gray | Grounded | 2.6" | Brass | 1.3" | Thermoplastic | Gray | NEMA WD-6 | €18.88 | |
 |

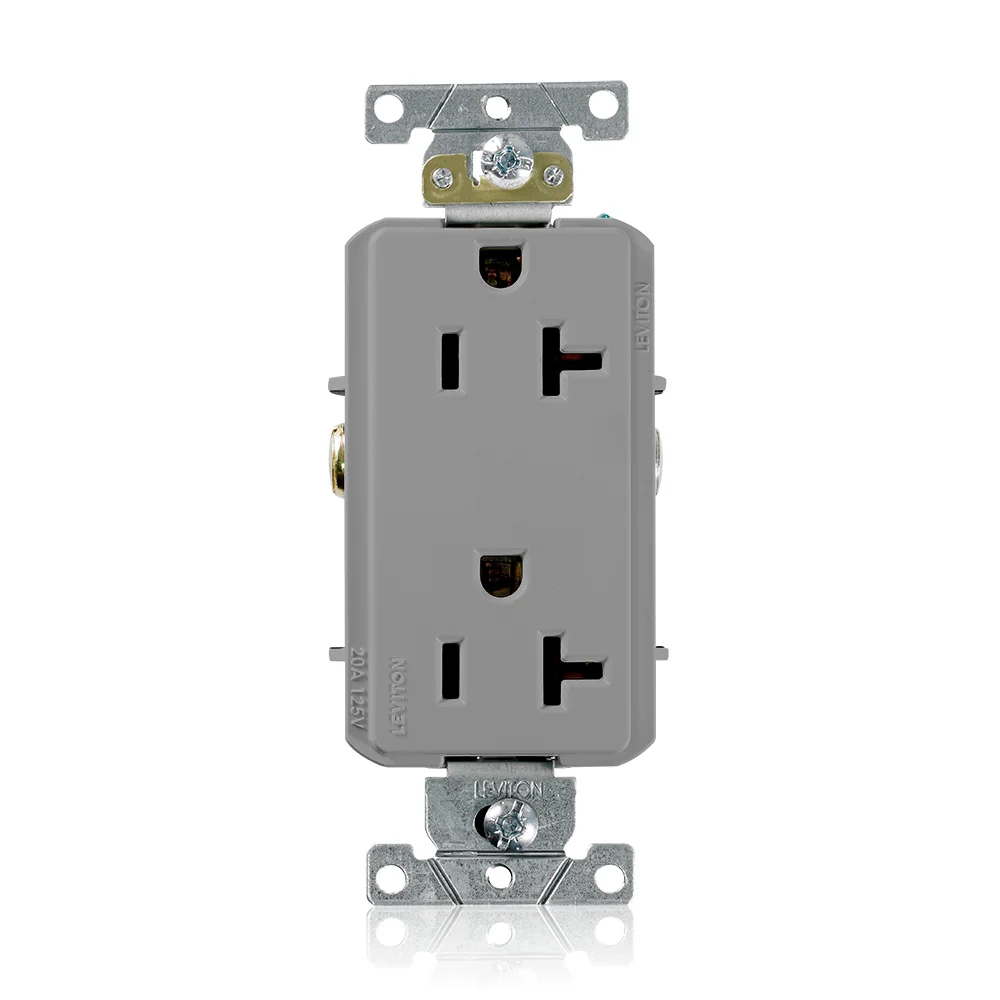

16352-GY | Gray | Grounded | 2.6" | Brass | 1.6" | Thermoplastic | Gray | NEMA WD-1, NEMA WD-6 | €15.97 | |
 |

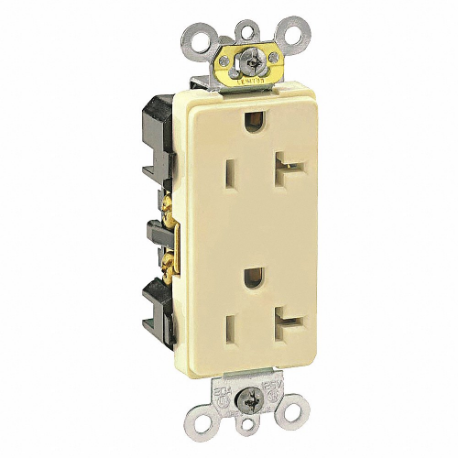

16362-I | Ivory | Grounded | 2.6" | Brass | 1.3" | Thermoplastic | Ivory | NEMA WD-6 | €18.88 | |
 |

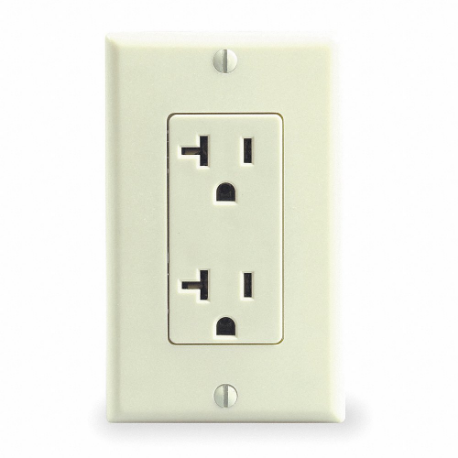

16352-I | Ivory | Grounded | 2.6" | Brass | 1.6" | Thermoplastic | Ivory | NEMA WD-1, NEMA WD-6 | €22.48 | |
 |

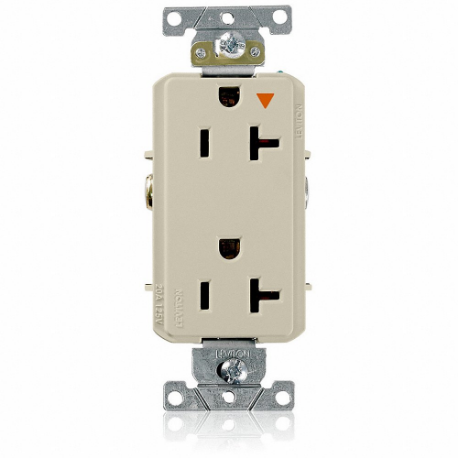

16362-IIG | Ivory | Isolated Ground | 2 4/5" | Phosphor Bronze | 1.4" | PBT Polyester | - | - | €38.01 | |
 |

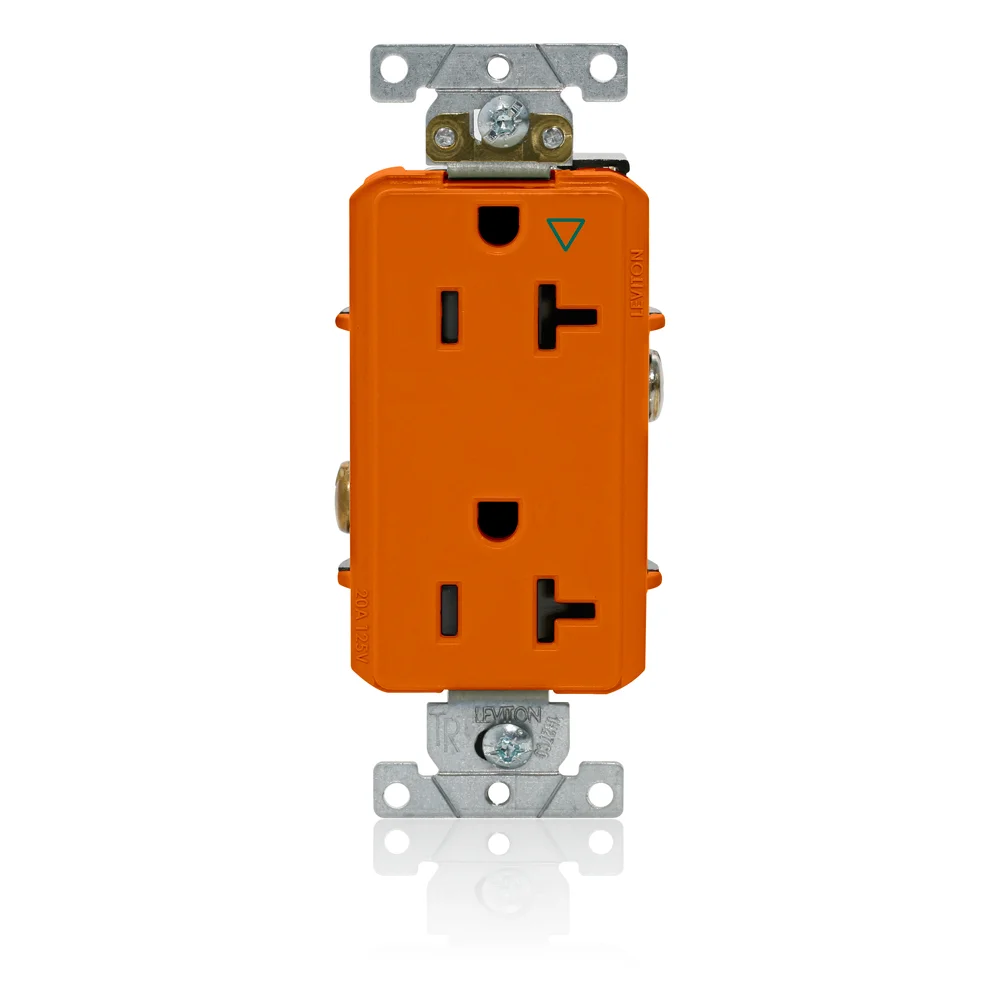

16362-OIG | Orange | Isolated Ground | 2 4/5" | Phosphor Bronze | 1.4" | PBT Polyester | Orange | - | €40.75 | |
 |

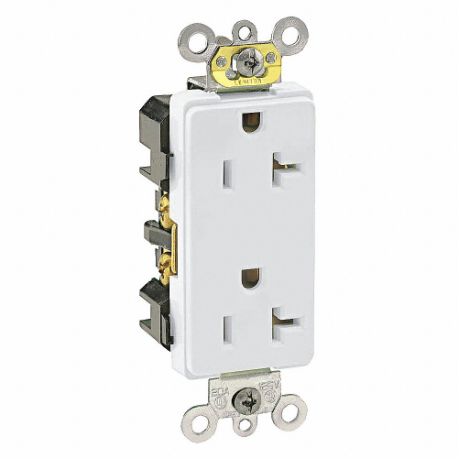

16362-W | White | Grounded | 2.6" | Brass | 1.3" | Thermoplastic | White | NEMA WD-6 | €26.05 |
