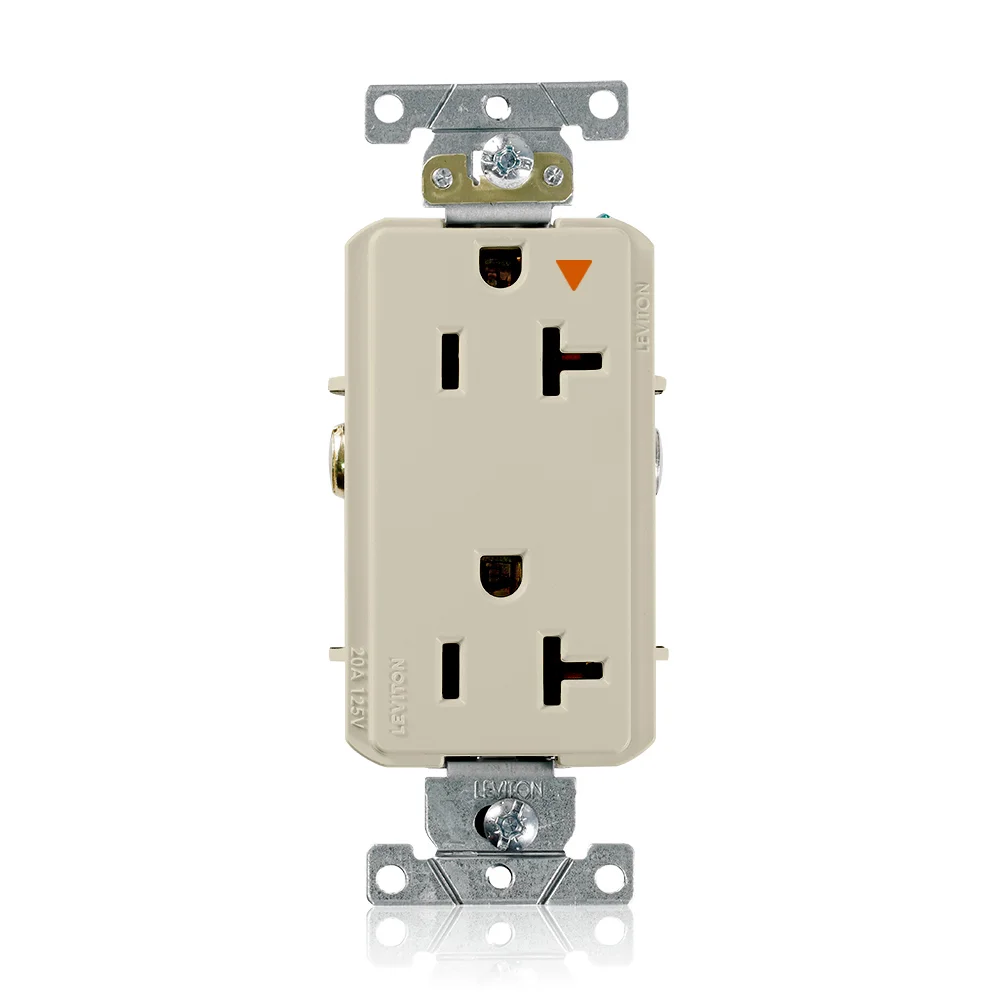

LEVITON 16362-IIG Receptacle, Decorator Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Ivory, Screw Terminals
Item: CR9HRBModel: 16362-IIGCross Ref: 792T22
7 In Stock
Ships within 2 days via
10.00% off
€34.20 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | PBT Polyester |
| Connection Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Cover Type | No Cover |
| Current Rating | 20A |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.4" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Isolated Ground |
| Housing Color | Ivory |
| Hp | 1 hp |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Signal & Power Protection | Isolated Ground |
| Standards | Ansi C73, Culus Nom-Ance, Rohs Compliant, Ul 498 Federal Specification W-C-596 Csa C22.2 No. 42 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Grounding | Face Plate Height | Contact Material | Face Plate Width | Body Material | Color | Nema Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16362-GY | Gray | Grounded | 2.6" | Brass | 1.3" | Thermoplastic | Gray | NEMA WD-6 | €18.88 | |
 |
16352-GY | Gray | Grounded | 2.6" | Brass | 1.6" | Thermoplastic | Gray | NEMA WD-1, NEMA WD-6 | €15.97 | |
 |
16362-I | Ivory | Grounded | 2.6" | Brass | 1.3" | Thermoplastic | Ivory | NEMA WD-6 | €18.88 | |
 |
16352-I | Ivory | Grounded | 2.6" | Brass | 1.6" | Thermoplastic | Ivory | NEMA WD-1, NEMA WD-6 | €22.48 | |
 |
16362-OIG | Orange | Isolated Ground | 2 4/5" | Phosphor Bronze | 1.4" | PBT Polyester | Orange | - | €40.75 | |
 |
16362-W | White | Grounded | 2.6" | Brass | 1.3" | Thermoplastic | White | NEMA WD-6 | €26.05 | |
 |
16352-W | White | Grounded | 2.6" | Brass | 1.6" | Thermoplastic | White | NEMA WD-1, NEMA WD-6 | €16.28 |
