LEGRIS 3666 56 60 Fractional All Metal Push-to-Connect Fitting, Nickel Plated Brass
Item: CN8FXTModel: 3666 56 60Cross Ref: 791TD9
7 In Stock
Ships within 2 days via
10.00% off
€13.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish | Nickel Plated |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Metric |
| Fitting Side B Pipe Size | 10 mm |
| Fitting Thread Size | M10 |
| Length | 1.469" |
| Material | Brass |
| Max. Operating Pressure | 435 psi |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | -13°F |
| Overall Length | 1 15/32" |
| Release Ring Material | Nickel Plated |
| Release Type | Collet |
| Resistance Properties | Abrasion-Resistant, Chemical-Resistant, Corrosion-Resistant |
| Specific Fitting Shape | Reducer |
| Sub-brand | Lf3600 |
| System Of Measurement | Imperial/Metric |
| Thread Size | 10 mm |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Operating Pressure | Min. Operating Temp. | Fitting Side B Connection Type | Fitting Side A Tube Outer Diameter | Vacuum Rating | Overall Length | Fitting Material | Max. Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

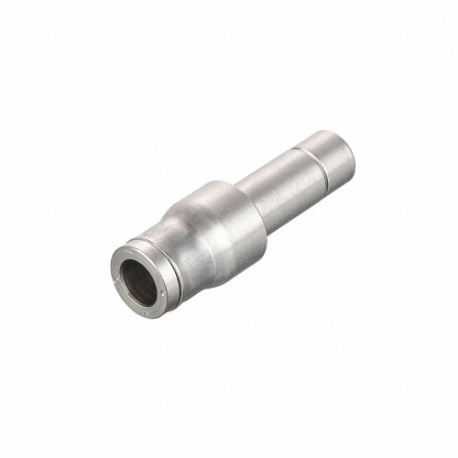

3666 04 06 | 30 BarG | -4°F | Push To Connect | 4 mm | 755 mm hg | 34.5 mm | Brass | 302°F | €26.07 | |
 |
3666 60 62 | 435 psi | -13°F | Metric | 3/8" | 28 in. hg | 1 31/32" | Brass | 302°F | €24.46 |
