LEGRIS 3616 60 00 Fractional All Metal Push-to-Connect Fitting, Nickel Plated Brass
Item: CN8FXPModel: 3616 60 00Cross Ref: 791T94
7 In Stock
Ships within 2 days via
10.00% off
€37.32 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Grease, Lubricant, Non-Potable Water |
| Color | Silver |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish | Nickel Plated |
| Finish, Coating | Nickel Plated |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 3/8" |
| Length | 1.969" |
| Material | Brass |
| Max. Operating Pressure | 30 BarG |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | -4°F |
| Resistance Properties | Abrasion Resistance, Corrosion Resistant |
| Specific Fitting Shape | Straight Connector |
| Sub-brand | Lf3600 |
| System Of Measurement | Imperial |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Max. Operating Pressure | Specific Fitting Shape | Fitting Side B Tube Outer Diameter | Fitting Side A Tube Outer Diameter | Min. Operating Temp. | Vacuum Rating | Overall Length | Fitting Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
3616 62 00 | 30 BarG | Straight Connector | 1/2" | 1/2" | -4°F | 755 mm hg | 2 1/32" | Brass | €52.84 | |
|
3616 56 00 | 30 BarG | Straight Connector | 1/4" | 1/4" | -4°F | 755 mm hg | 1 9/16" | Brass | €43.22 | |
 |

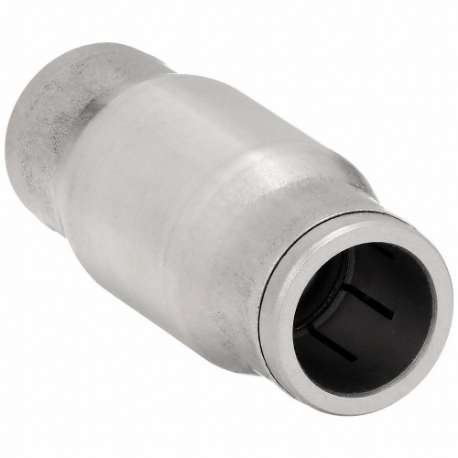

3616 14 00 | 30 BarG | Straight Connector | 14 mm | 14 mm | - | - | 55 mm | Brass | €63.86 | |
 |
3616 06 00 | 435 psi | Straight Bulkhead Union | 6 mm | 6 mm | 13°F | 28 in. hg | 39 mm | Brass | €31.51 | |
|
3616 10 00 | 435 psi | Straight Bulkhead Union | 10 mm | 10 mm | 13°F | 28 in. hg | 48 mm | Brass | €37.13 | |
|
3616 12 00 | 435 psi | Straight Bulkhead Union | 12 mm | 12 mm | 13°F | 28 in. hg | 50 mm | Brass | €43.22 | |
|
3616 08 00 | 435 psi | Straight Bulkhead Union | 5/16" | 5/16" | 13°F | 28 in. hg | 1 21/32" | Brass | €33.37 |
