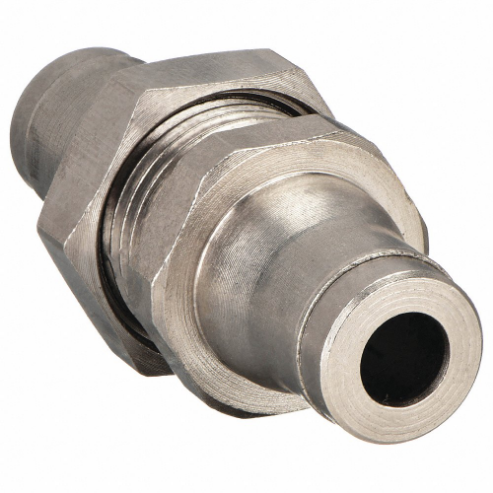

LEGRIS 3616 06 00 Bulkhead Union, Nickel Plated Brass, Push-to-Connect x Push-to-Connect
Item: CR8PYUModel: 3616 06 00Cross Ref: 18E475
7 In Stock
Ships within 2 days via
10.00% off
€28.36 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bulkhead Union |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Includes Pre-applied Thread Sealant | No |
| Length | 39 mm |
| Material | Brass |
| Max. Operating Pressure | 435 psi |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | 13°F |
| Overall Length | 39 mm |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Bulkhead Union |
| System Of Measurement | Metric |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship height (cm) | 5.08 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | ES |
Product Variants
| Product | Model | Max. Operating Pressure | Specific Fitting Shape | Fitting Side B Tube Outer Diameter | Fitting Side A Tube Outer Diameter | Min. Operating Temp. | Vacuum Rating | Overall Length | Fitting Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

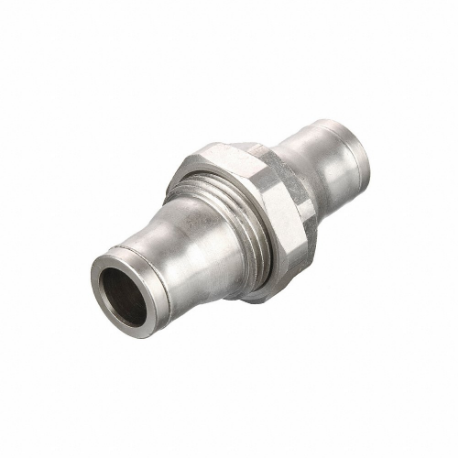

3616 60 00 | 30 BarG | Straight Connector | 3/8" | 3/8" | -4°F | 755 mm hg | - | - | €41.47 | |
|
3616 62 00 | 30 BarG | Straight Connector | 1/2" | 1/2" | -4°F | 755 mm hg | 2 1/32" | Brass | €52.84 | |
|
3616 56 00 | 30 BarG | Straight Connector | 1/4" | 1/4" | -4°F | 755 mm hg | 1 9/16" | Brass | €43.22 | |
 |
3616 14 00 | 30 BarG | Straight Connector | 14 mm | 14 mm | - | - | 55 mm | Brass | €63.86 | |
|
3616 10 00 | 435 psi | Straight Bulkhead Union | 10 mm | 10 mm | 13°F | 28 in. hg | 48 mm | Brass | €37.13 | |
|
3616 12 00 | 435 psi | Straight Bulkhead Union | 12 mm | 12 mm | 13°F | 28 in. hg | 50 mm | Brass | €43.22 | |
|
3616 08 00 | 435 psi | Straight Bulkhead Union | 5/16" | 5/16" | 13°F | 28 in. hg | 1 21/32" | Brass | €33.37 |
