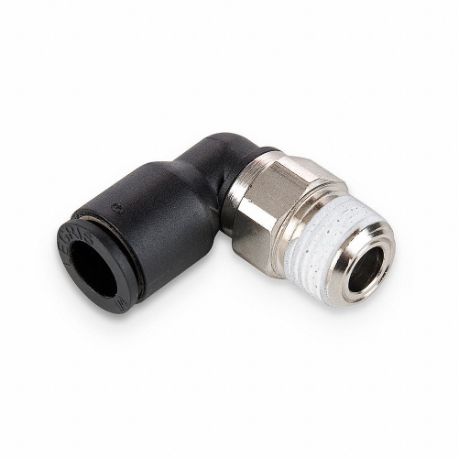

LEGRIS 3109 08 21 Push-to-Connect Fitting, Polymer, BSPT x Push-to-Connect, 8 mm Tube OD
Item: CR8QZBModel: 3109 08 21Cross Ref: 791PY3
7 In Stock
Ships within 2 days via
5.00% off
€20.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | BSPT |
| Fitting Side A Pipe Size | 1/2" |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outside Dia. | 8 mm |
| Fitting Thread Size | 1/2" |
| Included Pre-applied Thread Sealant | Yes |
| Length | 19.5 mm |
| Material | Polymer |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 19.5 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Imperial, Metric |
| Thread Sealant Type | PTFE |
| Thread Size | 1/2" |
| Vacuum | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Max. Operating Pressure | Fitting Material | Fitting Side B Connection Type | Included Pre-applied Thread Sealant | Fitting Side A Connection Type | Max. Operating Temp. | Min. Operating Temp. | Vacuum | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3109 06 11 | 290 psi | Nylon | MNPT | Yes | Push-To-Connect | 175°F | 4°F | 28 in. hg | 10 | €108.01 | |
| 3109 06 14 | 290 psi | Nylon | MNPT | Yes | Push-To-Connect | 175°F | 4°F | 28 in. hg | 10 | €107.98 | |
| 3109 08 11 | 290 psi | Nylon | MNPT | Yes | Push-To-Connect | 175°F | 4°F | 28 in. hg | 10 | €175.92 | |
| 3109 08 14 | 290 psi | Nylon | MNPT | Yes | Push-To-Connect | 175°F | 4°F | 28 in. hg | 10 | €177.94 | |
| 3109 08 18 | 290 psi | Nylon | MNPT | Yes | Push-To-Connect | 175°F | 4°F | 28 in. hg | 10 | €188.24 | |
| 3109 10 18 | 290 psi | Nylon | MNPT | Yes | Push-To-Connect | 175°F | 4°F | 28 in. hg | 10 | €305.16 | |
| 3109 10 22 | 290 psi | Nylon | MNPT | Yes | Push-To-Connect | 175°F | 4°F | 28 in. hg | 10 | €276.71 |
