LEGRIS 3109 Series Male Elbows
Filter
A
B
C
D| Style | Model | Fitting Material | Max. Operating Pressure | Max. Operating Temp. | Min. Operating Temp. | Fitting Side B Connection Type | Overall Length | Fitting Side A Connection Type | Release Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

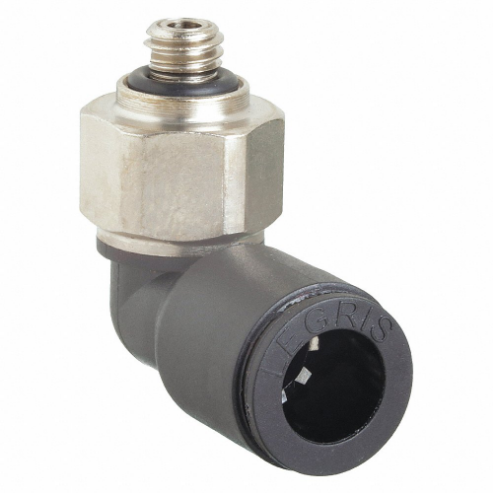

| A | 3109 53 20 | - | - | - | - | - | - | - | - | 10 | €141.41 | |
| B | 3109 06 11 | Nylon | 290 psi | 175°F | 4°F | MNPT | 5/8" | Push-To-Connect | Button | 10 | €108.01 | |
| B | 3109 60 11 | Nylon | 290 psi | 175°F | 4°F | MNPT | 29/32" | Push-To-Connect | Button | 10 | €152.45 | |
| C | 3109 06 10 | Nylon | 290 psi | 175°F | 4°F | MBSPT | 15.5 mm | Push-To-Connect | Button | 10 | €117.61 | |
| B | 3109 56 18 | Nylon | 290 psi | 175°F | 4°F | MNPT | 21/32" | Push-To-Connect | Button | 10 | €122.69 | |
| B | 3109 56 14 | Nylon | 290 psi | 175°F | 4°F | MNPT | 5/8" | Push-To-Connect | Button | 10 | €86.30 | |
| B | 3109 56 11 | Nylon | 290 psi | 175°F | 4°F | MNPT | 11/16" | Push-To-Connect | Button | 10 | €76.85 | |
| B | 3109 53 14 | Nylon | 290 psi | 175°F | 4°F | MNPT | 9/16" | Push-To-Connect | Button | 10 | €135.92 | |
| B | 3109 04 14 | Nylon | 290 psi | 175°F | 4°F | MNPT | 9/16" | Push-To-Connect | Button | 10 | €165.10 | |
| B | 3109 62 14 | Nylon | 290 psi | 175°F | 4°F | MNPT | 1 7/32" | Push-To-Connect | Button | 10 | €148.40 | |
| B | 3109 60 22 | Nylon | 290 psi | 175°F | 4°F | MNPT | 29/32" | Push-To-Connect | Button | 10 | €220.33 | |
| B | 3109 06 14 | Nylon | 290 psi | 175°F | 4°F | MNPT | 5/8" | Push-To-Connect | Button | 10 | €107.98 | |
| B | 3109 60 18 | Nylon | 290 psi | 175°F | 4°F | MNPT | 7/8" | Push-To-Connect | Button | 10 | €156.71 | |
| A | 3109 56 20 | Nylon | 290 psi | 175°F | 4°F | Munf | 5/8" | Push-To-Connect | Button | 10 | €134.30 | |
| B | 3109 53 11 | Nylon | 290 psi | 175°F | 4°F | MNPT | 17/32" | Push-To-Connect | Button | 10 | €91.42 | |
| B | 3109 04 11 | Nylon | 290 psi | 175°F | 4°F | MNPT | 17/32" | Push-To-Connect | Button | 10 | €80.13 | |
| B | 3109 12 22 | Nylon | 290 psi | 175°F | 4°F | MNPT | 1 1/32" | Push-To-Connect | Button | 10 | €328.59 | |
| B | 3109 12 18 | Nylon | 290 psi | 175°F | 4°F | MNPT | 1" | Push-To-Connect | Button | 10 | €358.25 | |
| B | 3109 10 22 | Nylon | 290 psi | 175°F | 4°F | MNPT | 29/32" | Push-To-Connect | Button | 10 | €276.71 | |
| B | 3109 10 18 | Nylon | 290 psi | 175°F | 4°F | MNPT | 7/8" | Push-To-Connect | Button | 10 | €305.16 | |
| B | 3109 08 18 | Nylon | 290 psi | 175°F | 4°F | MNPT | 23/32" | Push-To-Connect | Button | 10 | €188.24 | |
| B | 3109 08 14 | Nylon | 290 psi | 175°F | 4°F | MNPT | 23/32" | Push-To-Connect | Button | 10 | €177.94 | |
| B | 3109 08 11 | Nylon | 290 psi | 175°F | 4°F | MNPT | 3/4" | Push-To-Connect | Button | 10 | €175.92 | |
| C | 3109 53 10 | Nylon | 290 psi | 175°F | 4°F | MBSPT | 17/32" | Push-To-Connect | Button | 10 | €153.95 | |
| D | 3109 10 21 | Polymer | 20 BarG | 176°F | -4°F | Push To Connect | 22 mm | - | - | 1 | €25.37 | |
| D | 3109 10 10 | Polymer | 20 BarG | 176°F | -4°F | Push To Connect | 23 mm | BSPT | Ring | 1 | €24.10 | |
| D | 3109 10 17 | Polymer | 20 BarG | 176°F | -4°F | Push To Connect | 22 mm | BSPT | Ring | 1 | €28.27 | |
| D | 3109 06 21 | Polymer | 20 BarG | 176°F | -4°F | Push To Connect | 16.5 mm | BSPT | Ring | 1 | €17.09 | |
| D | 3109 08 21 | Polymer | 20 BarG | 176°F | -4°F | Push To Connect | 19.5 mm | BSPT | Ring | 1 | €21.12 |
