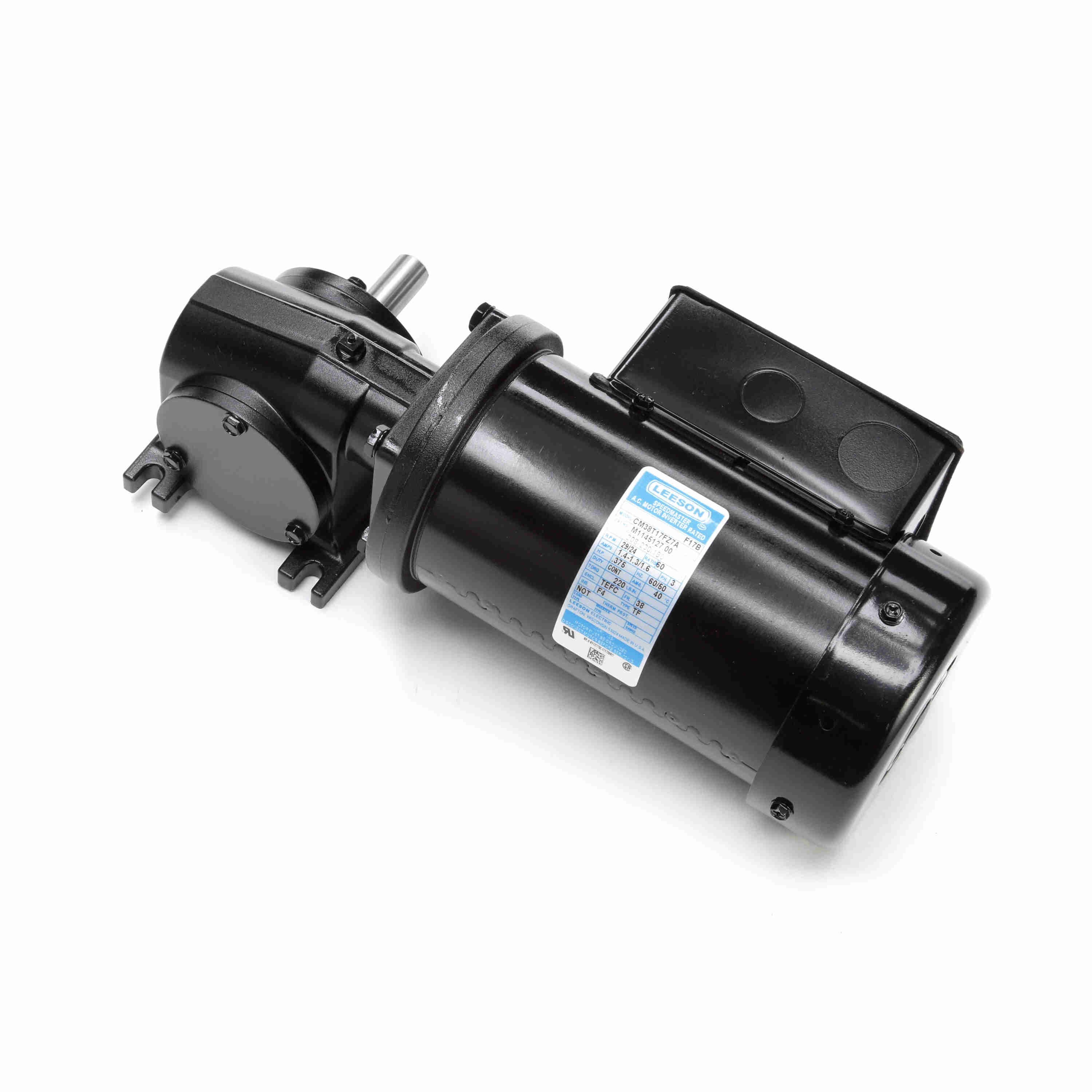

LEESON M1145127.00 CM38T17FZ7A Right Angle Gearmotor, 0.38 HP, 3 Phase, 60 Hz, 190V, 29 RPM
Get it by Tuesday, Jul 7
€1,124.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 1.4-1.3A |
| Application | Inverter Duty |
| Assembly | M1040956 |
| Bearing Size | 6201-13 |
| Bearing Type | Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball |
| Code | G |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Enclosure Type | Tefc |
| Explosion Proof | Brake Motors |
| Finish | Enamel |
| Frame | 38 |
| Frame Length | 5 22/25" |
| Frame Size | 38 |
| Frame Suffix | Not Available |
| Frequency | 60 Hz |
| Full Load Amps | 1.3A , 1.4-1.3A |
| Gear Case Material | Die Cast Aluminum |
| Gear Material | Bronze, Hardened Steel |
| Gear Ratio | 60:1 |
| Gear Type | Worm, Worm Wheel |
| Gears | Hardened Steel Worm, Bronze Worm Wheel |
| Housing Material | Rolled Steel |
| Housing Material Finish | Black High Gloss Enamel |
| Hp | 19/50 hp |
| Input Hp | 3/8 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Key Way Size | 0.18" x 1" |
| Keyway Type | 0.18 Sq. in. x 1" |
| Kw | 0.28 kW |
| Length Less Shaft | 12.31" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 29 RPM |
| Max. Torque | 220 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 38 |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Hole Center To Center Length | 3" |
| Mount Hole Center To Center Width | 3.25" |
| Mounting | All Position Except Shaft Up |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Horizontal Or Vertical Shaft Down , Special |
| Nameplate Speed | 29 RPM |
| No Load Speed | 30 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 203-230V AC |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030994 |
| Output Direction | Right Hand |
| Output Kw | 0.28 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 5 1/5" |
| Overall Length | 12.31" |
| Overall Width | 5.81" |
| Overhung Load | 235 lbs. |
| Overhung Load Capacity | 235 lbs.-ft. |
| Overrlung Ld. | 235 lbs. |
| Phase | 3 |
| Product Datasheet | leeson-m1145127-00.pdf |
| Rotation | CW, CCW |
| Rotation Type | Reversible |
| Seal Type | Heavy Duty, Single Lip, Spring Loaded |
| Seals | Heavy Duty, Single Lip, Spring Loaded |
| Series | 13 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 4/5" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Speed | 16-30 RPM , 29 RPM |
| Test Card | 01 |
| Thermal Protection | No Protection |
| Torque | 220 lbs.-in. |
| Type | TF |
| Voltage | 190V |
| Winding | MT38432 |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| HS code | 8501514020 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Motor Type | Max. Torque | Operating Voltage | Gear Ratio | Full Load Amps | Lubrication | Length Less Shaft | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145129.00 | 3-Phase | 138 lbs.-in. | 208-230V AC | 20:1 | 1.3A | Permanent Heavy Duty Gear Oil | 12.31" | TF | €1,512.37 | |
 |
M1145130.00 | 3-Phase | 105 lbs.-in. | 203-230V AC | 10:1 | 1.3A | Permanent Heavy Duty Gear Oil | 12.31" | TF | €1,558.90 | |
 |
M1145037.00 | Permanent Split Capacitor | 110 lbs.-in. | 115/230V AC | 60:1 | 2/1A | Oil Bath | 10.55" | PF | €1,187.96 | |
 |
M1145038.00 | Permanent Split Capacitor | 113 lbs.-in. | 115/230V AC | 40:1 | 2/1A | Oil Bath | 10.55" | PF | €1,187.96 | |
 |
M1145039.00 | Permanent Split Capacitor | 75 lbs.-in. | 115/230V AC | 20:1 | 2/1A | Oil Bath | 10.55" | PF | €1,667.17 | |
 |
M1145041.00 | Permanent Split Capacitor | 23 lbs.-in. | 115V AC | 5:1 | 2/1A | Oil Bath | 10.55" | PF | €1,490.03 |
