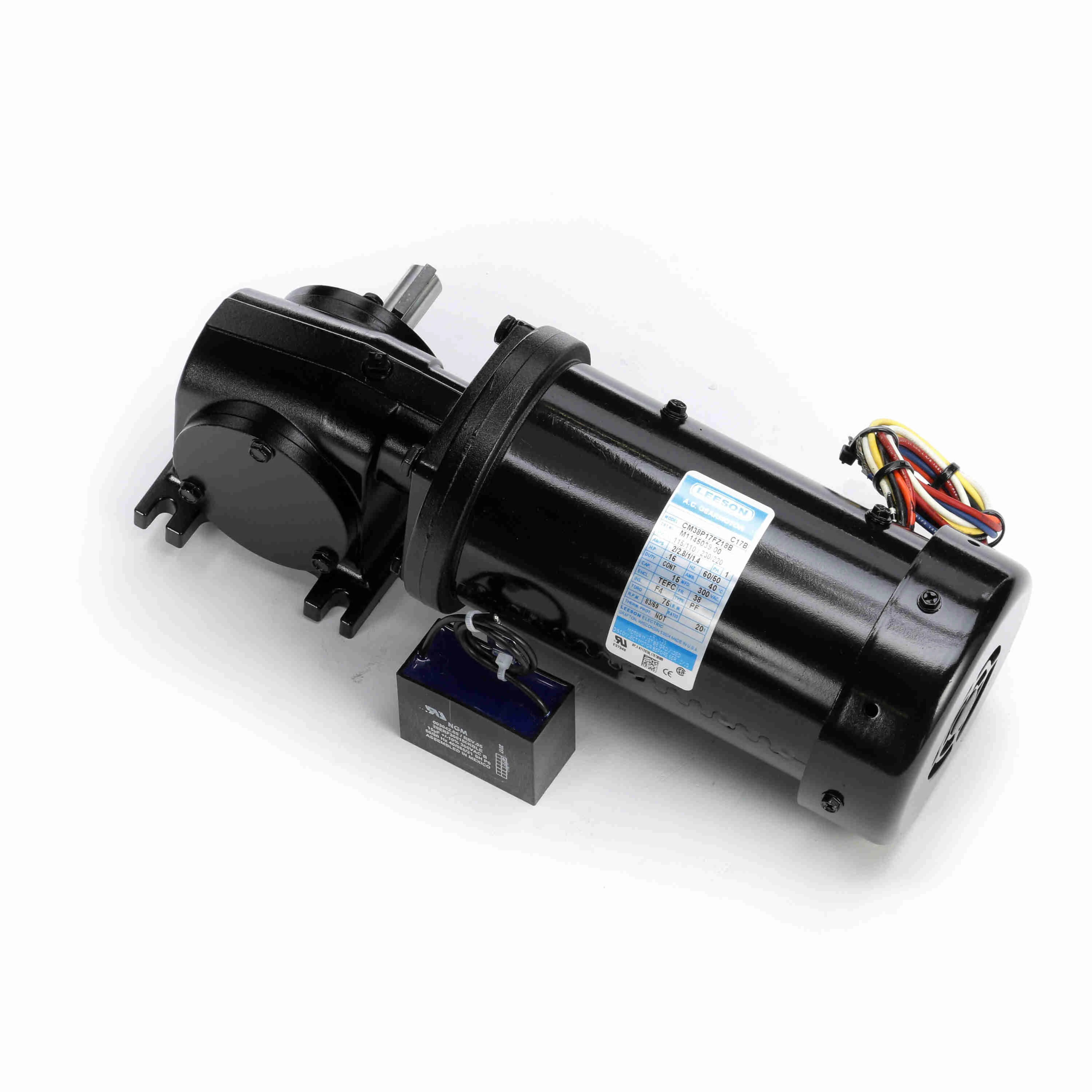

LEESON M1145039.00 CM38P17FZ18B Right Angle Gearmotor, 0.16 HP, 1 Phase, 60/50 Hz, 110V, 83 RPM
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,583.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 1/2A |
| Assembly | M1040447 |
| Base To Center Of Shaft | 1.67" |
| Bearing Type | Ball |
| Brake Type | None |
| Capacitor Required | Yes |
| Code | D |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Explosion Proof | Brake Motors |
| Frame | 38 |
| Frame Length | 5 22/25" |
| Frame Size | 38 |
| Frame Suffix | Not Available |
| Frequency | 50/60 Hz |
| Full Load Amps | 2/1A |
| Gear Ratio | 20:1 |
| Height | 6.69" |
| Housing Material | Aluminum |
| Hp | 16/100 hp |
| Included | Conduit Box |
| Included Capacitor | Capacitor Included |
| Included Junction/conduit Box | Yes |
| Input Hp | 16/100 hp |
| Insulation Class | Class F |
| Keyway Depth | 1" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.12 kW |
| Length | 16 1/2" |
| Length Less Shaft | 10.55" |
| Lubrication | Oil Bath |
| Max. Ambient Temp. | 104°F , 40°C |
| Max. Output Speed | 83 RPM |
| Max. Torque | 75 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mounting | Special |
| Mounting Orientation | Horizontal |
| Mounting Type | Horizontal , Special |
| Nameplate Speed | 83 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Opp Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030422 |
| Output Direction | Reversible |
| Output Kw | 0.12 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 5 1/5" |
| Overall Length | 12.31" |
| Overall Width | 5.81" |
| Overhung Load Capacity | 235 lbs.-ft. |
| Overrlung Ld. | 235 lbs. |
| Packaging | M1307027.01 |
| Phase | 1 |
| Product Datasheet | leeson-m1145039-00.pdf |
| Rotation | CW, CCW |
| Rotation Type | Reversible |
| Series | 13 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 4/5" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Speed | 83 RPM |
| Starting Torque | 75 lbs.-in. |
| Test Card | 01 |
| Thermal Protection | None |
| Torque | 75 lbs.-in. |
| Type | PF |
| Voltage | 110V |
| Winding | MP38440 |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Details:
- HPKW: .16/.16
- Nameplate: M1004149.02
- Overrlung Ld.: 235
- Winding: MP38440
- GROUP: 3 C
- Paint: M1305027.01
Documentation:
Product Variants
| Product | Model | Nameplate Speed | Housing Material | Phase | Full Load Amps | Operating Voltage | Frequency | Max. Torque | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1145127.00 | 29 RPM | Rolled Steel | 3 | 1.3A | 203-230V AC | 60 Hz | 220 lbs.-in. | 190V | €1,124.48 | |
 |
M1145129.00 | 86 RPM | Rolled Steel | 3 | 1.3A | 208-230V AC | 60 Hz | 138 lbs.-in. | 208-230V | €1,512.37 | |
 |
M1145130.00 | 172 RPM | Rolled Steel | 3 | 1.3A | 203-230V AC | 50/60 Hz | 105 lbs.-in. | 208-230V | €1,558.90 | |
 |
M1145037.00 | 29 RPM | Aluminum | 1 | 2/1A | 115/230V AC | 50/60 Hz | 110 lbs.-in. | 115V | €1,187.96 | |
 |
M1145038.00 | 43 RPM | Aluminum | 1 | 2/1A | 115/230V AC | 50/60 Hz | 113 lbs.-in. | 110V | €1,187.96 | |
 |

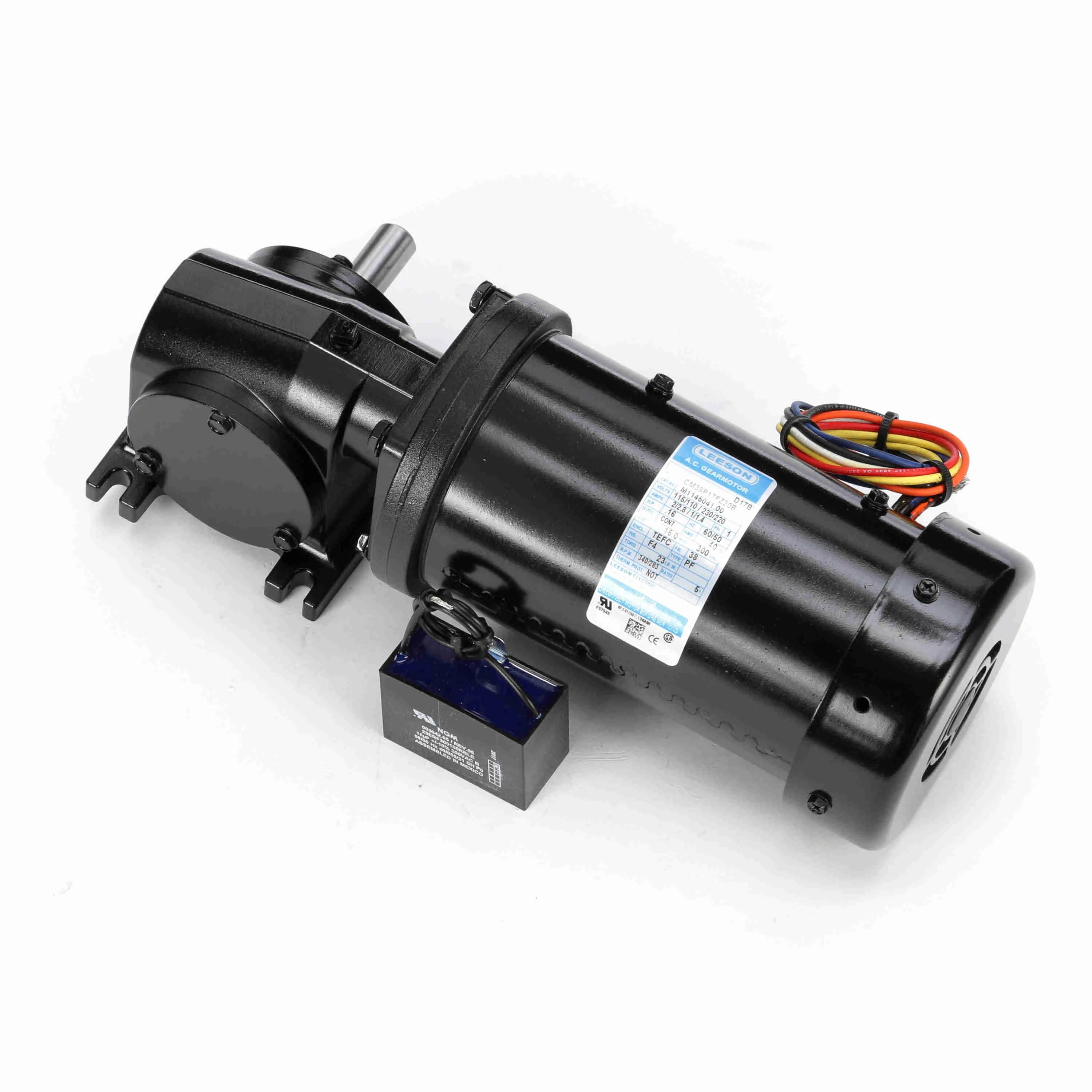

M1145041.00 | 340 RPM | Aluminum | 1 | 2/1A | 115V AC | 50/60 Hz | 23 lbs.-in. | 110V | €1,490.03 |
