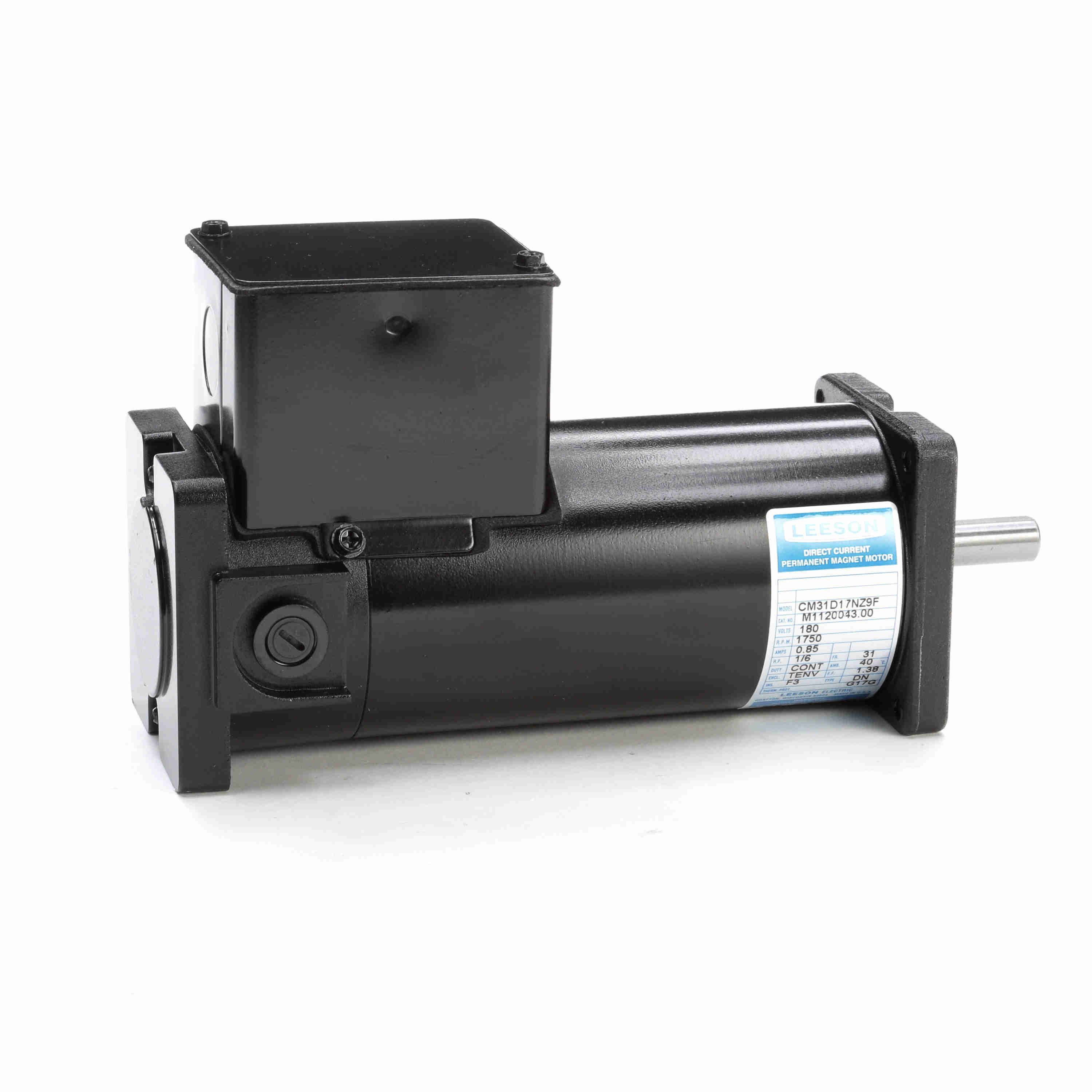

LEESON M1120043.00 CM31D17NZ9F Sub Fractional Motor, 0.17 HP, 180V, 1750 RPM
Item: CR8PPBModel: M1120043.00Cross Ref: 805YD4 / CM31D17NZ9F
7 In Stock
Ships within 2 days via
€463.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Permanent Magnet Motor |
| Ambient Temp. | 40°C |
| Amps | 0.85A |
| Assembly | M1041221 |
| Bearing Type | Ball |
| Brush Type | External |
| Drive End Bearing Size | 6201-13 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 75.1% |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Form Factor | 1.38 |
| Frame | 31 |
| Frame Length | 5 1/2" |
| Frame Size | 31 |
| Frame Suffix | Not Available |
| Full Load Amps | 0.85A |
| Height | 6.69" |
| Hp | 17/100 hp |
| Inertia | 10.3 oz./sq. in. |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 0.13 kW |
| Length | 16 1/2" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | Sub-Fractional Motor |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Sub Application | General Purpose |
| Motor Thermal Protection | No Protection |
| Mounting Type | Square Flange |
| Nameplate Rpm | 1750 RPM |
| Nominal Efficiency | 75.1% |
| Opp. Drive End Bearing Size | 6201-13 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1031034 |
| Output Kw | 0.13 kW |
| Overall Length | 9.45" |
| Power | 0.13 kW |
| Product Datasheet | leeson-m1120043-00.pdf |
| Rotation Type | Reversible |
| Rpm | 1750 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Test Card | 01 |
| Thermal Protection | No Protection |
| Torque | 96 oz./in. |
| Type | Dn |
| Voltage | 180V |
| Winding | MD312386 |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Motor Mounting Type | Full Load Amps | Insulation Class | Service Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1110003.00 | 90V | 1/25 hp | 1750 RPM | 25 | Face, Base | 0.7A | Class H | 1 | €705.51 | |
 |
M1120013.00 | 90V | 7/100 hp | 1750 RPM | 31 | Face, Base | 0.8A | Class F | 1 | €383.38 | |
 |
M1120027.00 | 90V | 13/100 hp | 1750 RPM | 31 | Face, Base | 1.3A | Class H | 1.3 | €668.52 | |
 |
M1120040.00 | 12-24V | 7/100 hp to 14/100 hp | 1750-4200 RPM | 31 | - | - | Class F | 1 | €383.38 | |
 |
M1120041.00 | 180V | 1/10 hp | 1750 RPM | 31 | - | - | Class F | 1 | €134.15 | |
 |
M1120042.00 | 90V | 17/100 hp | 1750 RPM | 31 | Square Flange | - | Class F | 1 | €870.57 | |
 |
M1120046.00 | 12-24V | 17/100 hp to 33/100 hp | 1800-3900 RPM | 31 | - | - | Class F | 1 | €536.21 |
