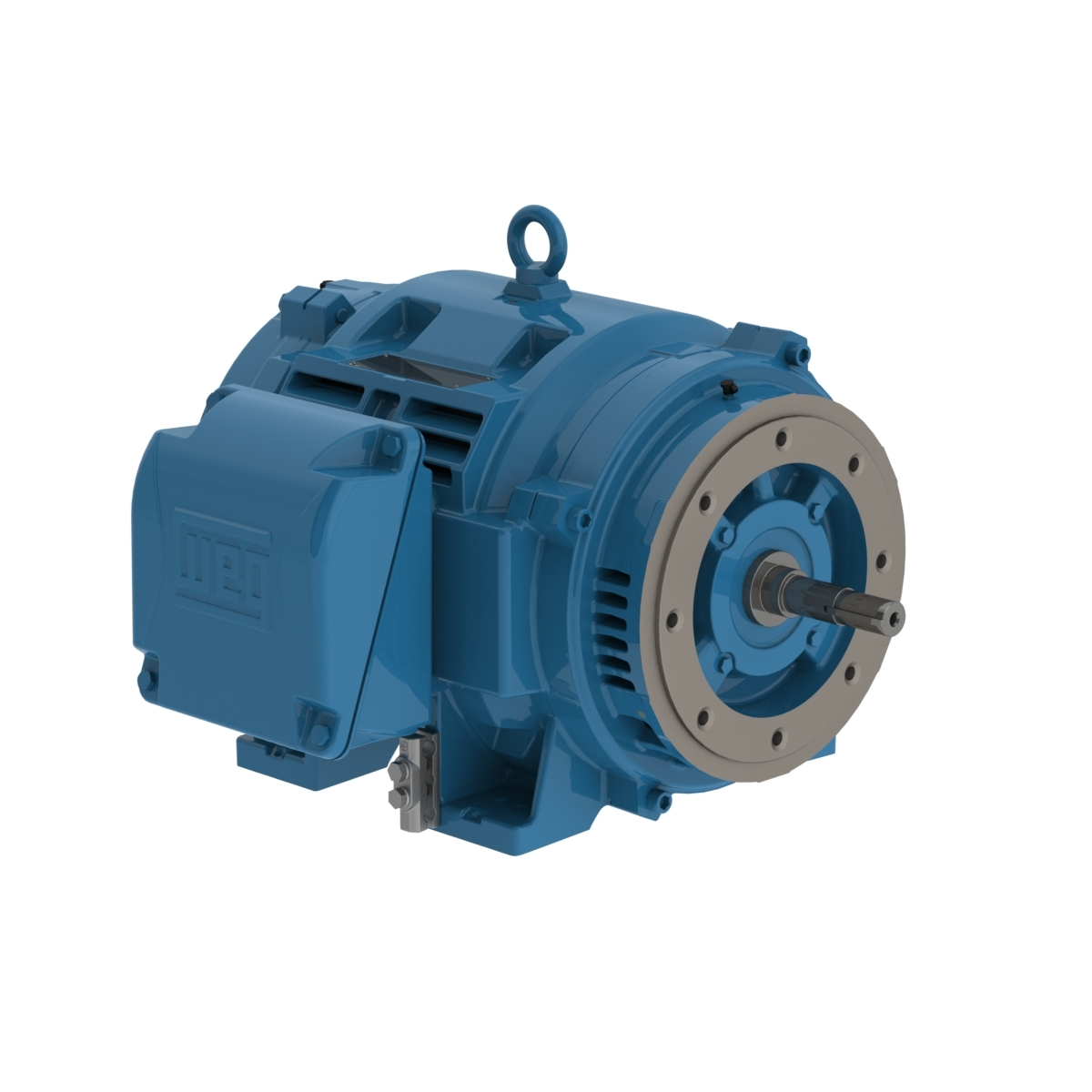

WEG 05012OT3E365JM-W40 14267795 Pump Motor, 50 HP, 1200 RPM, 208-230/460V, ODP, 364/5JM, Footed
Get it by Tuesday, Sep 1
€6,005.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 53.5A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 260% |
| Cold Locked Rotor Time | 25 sec. |
| Connection Cables Quantity | 12 |
| De Bearing Seal | No |
| Degree Of Protection | IP23 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 50% |
| Efficiency @ 100% | 94.1% |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 364JM |
| Frame Material | Cast Iron |
| Frame Size | 364/5JM |
| Frequency | 60 Hz |
| Full Load Amps | 58.8/118-130A |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Hp | 50 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L. R. Amps | 412A |
| Locked Rotor Time(hot) | 14 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 7.7x(Code J) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 22/44A |
| No. Of Poles | 6 |
| Noise | 68 dBA |
| Noise Level | 68 dBA |
| Output Rating | 30 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 100% | 0.84 |
| Product Datasheet | weg-05012ot3e365jm-w40.pdf |
| Rated Speed | 986 RPM |
| Rated Torque | 213 lbs.-ft. |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Service Factor | 1 |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.4% |
| Speed | 1100-1200 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 219 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V , 415V |
Shipping Info:
| Ship weight (kg) | 387.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
