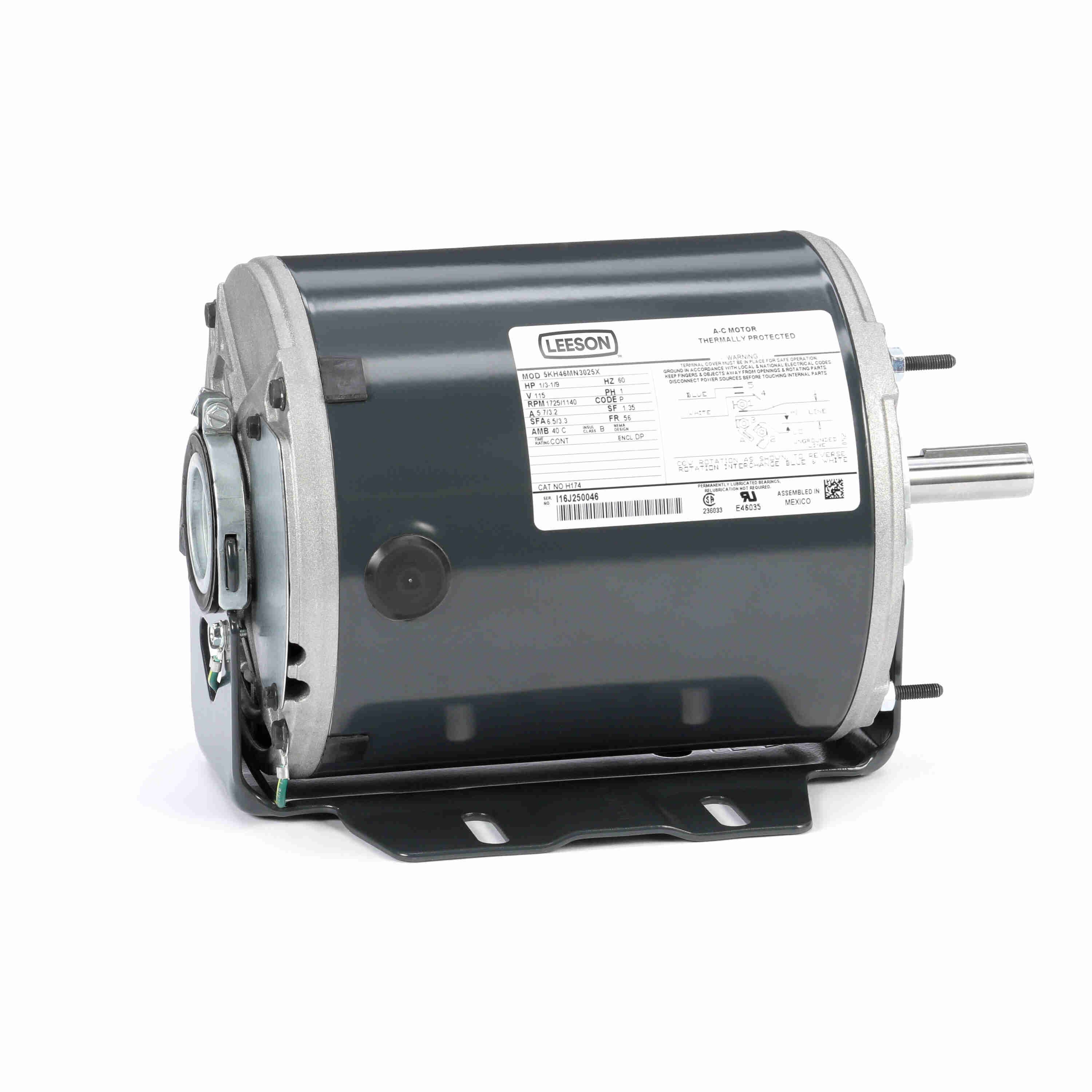

LEESON 5KH46MN3025X H174 Fan and Blower Motor, .33,.11 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Tuesday, Aug 25
€442.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 5.7/3.2A |
| Hp | 1/9 hp to 1/3 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting Type | Resilient Base |
| Nameplate Speed | 1725/1140 RPM |
| No. Of Speed | 2 |
| Phase | 1 |
| Product Datasheet | leeson-5kh46mn3025x.pdf |
| Service Factor | 1.35 |
| Shaft Dia. | 0.63" |
| Shaft Length | 1 22/25" |
| Shaft Orientation | Horizontal/Vertical |
| Speed | 1725/1140 RPM |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Switch and Mech
- KVA Code: P
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Mounting Type | Service Factor | Motor Enclosure Design | Frame | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048S17D2017 | 115V AC | 1/6 hp | 3.6A | Resilient Base | 1.35 | Open Dripproof | 48 | CW, CCW | €310.86 | |
 |
5KH39QN5512T | 115V AC | 1/4 hp | 5.1A | Resilient Base | 1.35 | Open Dripproof | 48Y | CCW | €222.86 | |
 |
5KH32FN3083 | 115V AC | 1/4 hp | 5.1A | Resilient Base | 1.35 | Dripproof | 48Z | CCW | €268.55 | |
 |
5KH32HN5620T | 115V AC | 1/3 hp | 6.6A | Resilient Base | 1.35 | Open Dripproof | 48Y | CW | €259.28 | |
 |
048S17D2086 | 115V AC | 1/3 hp | 6.1A | Resilient Base | 1.35 | Dripproof | 48 | Selective CCW | €264.23 | |
 |
5KH35MNA519T | 115V AC | 1/2 hp | 7.9A | Resilient Base | 1.25 | Open Dripproof | 48Y | CW | €529.20 | |
 |
5KH32JN3128 | 115V AC | 1/3 hp | 6.2A | Resilient Base | 1.35 | Dripproof | 48Z | CCW | €309.91 |
