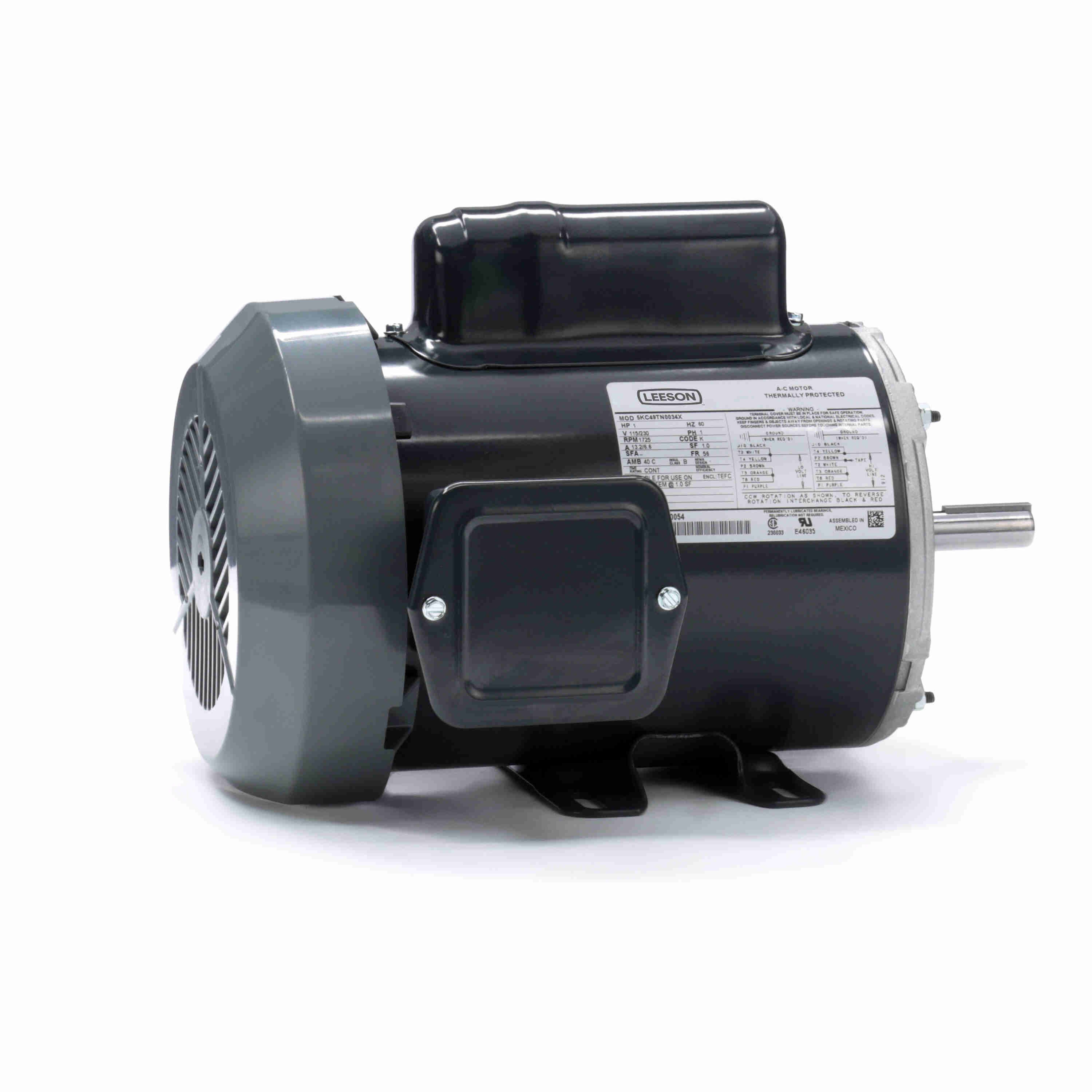

LEESON 5KC49TN0034X C276 General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, Apr 8
5.00% off
€713.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Duty Cycle | Continuous |
| Efficiency | 72.2% |
| Efficiency Group | Standard |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.2/6.6A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 11 1/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 72.2% |
| Number Of Speeds | 1 |
| Overall Length | 12 15/16" |
| Phase | 1 |
| Product Datasheet | leeson-5kc49tn0034x.pdf |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Automatic |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501406040 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Full Load Amps | Motor Type | Service Factor | Hp | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
184TBFW17044 | 115/208-230V AC | 1755 RPM | 28/15-14A | Capacitor Start/Run | 1 | 3 hp | 184T | 104°F | €1,333.18 | |
 |
184TBFW7701 | 208-230V AC | 3530 RPM | 19.8-22.5A | Capacitor Start/Run | 1 | 5 hp | 184T | 104°F | €1,695.17 | |
 |
184TBFW7726 | 208-230V AC | 1755 RPM | 19.5-21.5A | Capacitor Start/Run | 1.15 | 5 hp | 184T | 104°F | €1,729.97 | |
 |
213TBFW7001 | 208-230V AC | 3465 RPM | 32-36A | Capacitor Start/Run | 1 | 7 1/2 hp | 213T | 104°F | €2,474.88 | |
 |
213TBFW7026 | 208-230V AC | 1750 RPM | 22-24.5A | Capacitor Start/Run | 1 | 5 hp | 213T | 104°F | €1,780.85 | |
 |
215TBFW7026 | 208-230V AC | 1740 RPM | 30-35A | Capacitor Start/Run | 1 | 7 1/2 hp | 215T | 104°F | €2,591.54 | |
 |
215TBFW7027 | 230V AC | 1759 RPM | 41.5A | Capacitor Start/Run | 1 | 10 hp | 215T | 104°F | €3,108.36 |
