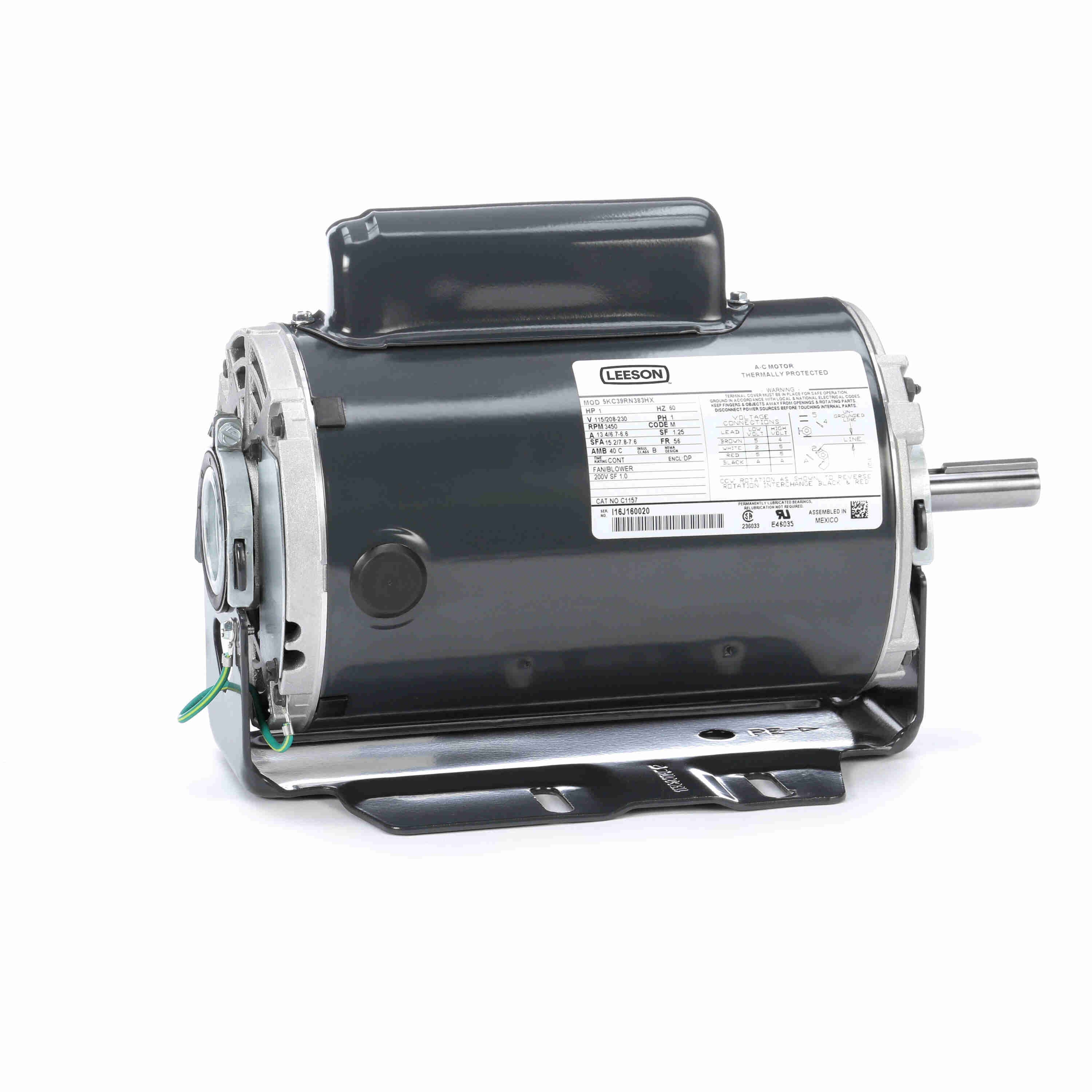

LEESON 5KC39RN383X 5KC39RN383HX / C1157 General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Tuesday, Jul 7
€496.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Efficiency Group | Standard |
| Enclosure Type | Open Dripproof |
| Frame | 56 |
| Frame Material | Rolled Steel , Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.4/6.6-6.7A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length | 11 7/8" |
| Length Less Shaft | 10" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Speed | 3450 RPM |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Overall Length | 11 7/8" |
| Phase | 1 |
| Product Datasheet | leeson-5kc39rn383x.pdf |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Keyed |
| Speed | 3001-3600 RPM , 3450 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501406040 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Frequency | Voltage | Hp | Full Load Amps | Phase | Service Factor | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 60 Hz | 115/230V AC | 1/3 hp | 3.8-4/1.9-2A | 1 | 1.35 | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 60 Hz | 115/230V AC | 1/2 hp | 5.6-5.8/2.8-2.9A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 60 Hz | 115/230V AC | 3/4 hp | 8.8-9/4.4-4.5A | 1 | 1.25 | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 60 Hz | 115/230V AC | 1 hp | 11.4-11.8/5.7-5.9A | 1 | 1.15 | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 60 Hz | 115/230V AC | 1 hp | 11.4-11.8/5.7-5.9A | 1 | 1.15 | Face, Base | Capacitor Start, Run | €1,060.60 |
