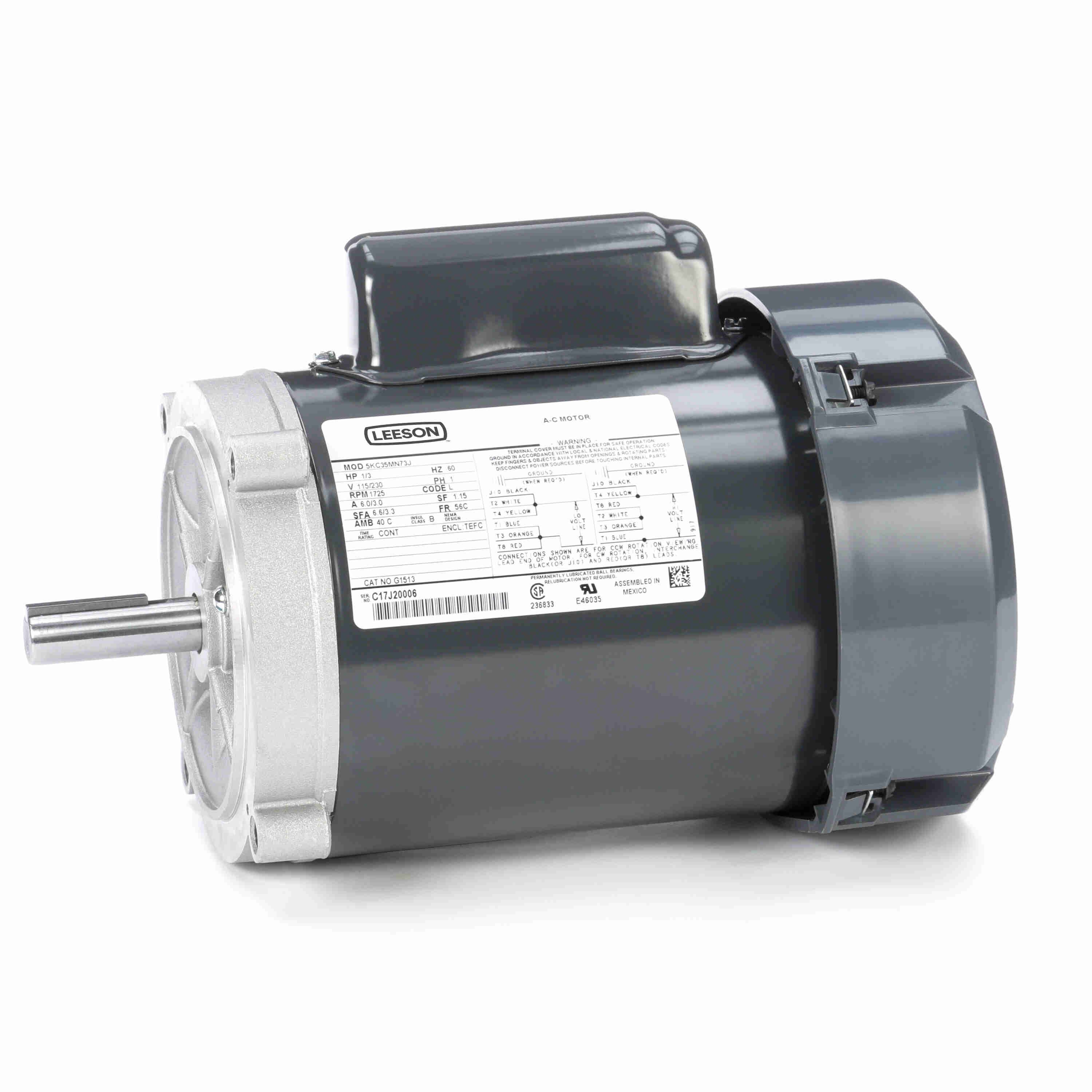

LEESON 5KC35MN73 G1513 / 5KC35MN73J General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€465.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Capacitor Required | No |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 63.8% |
| Efficiency Group | Standard |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6/3A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 9" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 63.8% |
| Number Of Speeds | 1 |
| Overall Length | 10 7/8" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Warranty | 2 yrs. |
| Weight | 19 lbs. |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 39.22 |
| Ship width (cm) | 25.88 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Service Factor | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46MN0093 | 115/230V AC | 1/2 hp | 60 Hz | 5.6-5.8/2.8-2.9A | Face | Capacitor Start/Run | 1.25 | 1725 RPM | €814.28 | |
 |
5KCR49UN0107 | 115/230V AC | 1 hp | 60 Hz | 11.4-11.8/5.7-5.9A | Face | Capacitor Start | 1.15 | 1725 RPM | €1,031.58 | |
 |
5KC49SN2156X | 115/230V AC | 1 1/2 hp | 60 Hz | 16.4/8.2A | Face | Capacitor Start | 1 | 3450 RPM | €698.56 | |
 |
056C34F5324 | 115/208-230V AC | 1 hp | 60 Hz | 12.4/6.2-6.7A | Rigid Base | Capacitor Start | 1.15 | - | €634.41 | |
 |
5KC32GN25 | 115/230V AC | 1/4 hp | 60 Hz | 5.4/2.7A | Rigid Base | Capacitor Start | 1.0 | 1725 RPM | €401.90 | |
 |
5KC33FN31 | 115/230V AC | 1/3 hp | 60 Hz | 5.6/2.8A | Rigid Base | Capacitor Start | 1.15 | 3450 RPM | €428.16 | |
 |
5KC42GN0018 | 115/230V AC | 1/2 hp | 60 Hz | 8.6/4.3A | Rigid Base | Capacitor Start | 1.15 | 1725 RPM | €618.34 |
