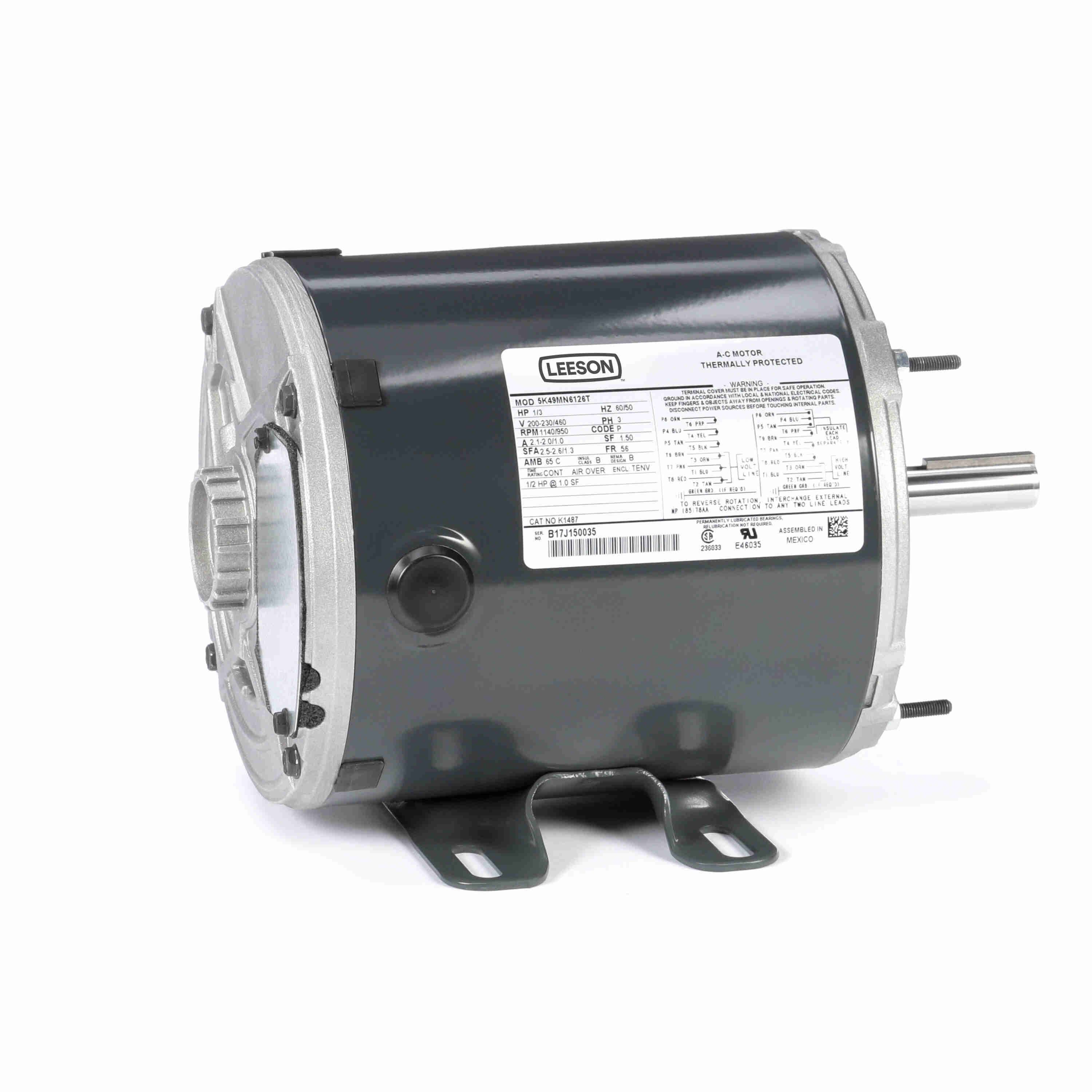

LEESON 5K49MN6126T K1487 Fan and Blower Motor, 0.33 HP, 3 Phase, 60 Hz, 200-230/460V, 1200 RPM
Get it by Tuesday, Aug 25
€1,006.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 65°C |
| Ambient Temp. | 65°C |
| Design | B |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frame | 56 |
| Frequency | 50/60 Hz |
| Full Load Amps | 2-2.1/1A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Three Phase |
| No. Of Speed | 1 |
| Phase | 3 |
| Service Factor | 1.5 |
| Shaft Dia. | 0.63" |
| Shaft Length | 1 22/25" |
| Shaft Orientation | Horizontal/Vertical |
| Speed | 1140/950 RPM |
| Thermal Protection | Automatic |
| Voltage | 200-230/460V AC |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Squirrel Cage Induction
- KVA Code: P
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Service Factor | Mounting Type | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5K37MN37 | 208-230/460V AC | 3/4 hp | 60 Hz | 1.3/2.6A | 1.5 | Face | 56C | 40°C | €422.89 | |
 |
5K49MN6080 | 208-230/460V AC | 1/2 hp | 60 Hz | 1.3/2.6A | 1 | Resilient Base | 56 | 40°C | €1,001.30 | |
 |
5K33KN52 | 230/460V AC | 1/3 hp | 60 Hz | 1.5/0.8A | 1.35 | Resilient Base | 48 | 40°C | €752.13 | |
 |
5K42HN4128 | 208-230/460V AC | 1/2 hp | 60 Hz | 2.2-2.3/1.1A | 1 | Resilient Base | 56 | 40°C | €619.48 | |
 |
5K49MN6081 | 208-230/460V AC | 1/2 hp | 60 Hz | 1.3/2.6A | 1 | Resilient Base | 56 | 40°C | €1,164.15 |
