LEESON 5K33KN52 K283 / 5K33KN52A Fan and Blower Motor, 0.33 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€662.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frame | 48 |
| Frequency | 60 Hz |
| Full Load Amps | 1.5/0.8A |
| Full Load Efficiency | 60.2% |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 7 11/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 60.2% |
| Number Of Speeds | 1 |
| Overall Length | 9 3/16" |
| Phase | 3 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 7 9/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Horizontal/Vertical |
| Standards | Csa (Mc236833), Ul (E46035) |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 1 yr. |
| Weight | 16 lbs. |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 17.63 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Squirrel Cage Induction
- KVA Code: L
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Rpm Range | Frame | Shaft Length | Nameplate Rpm | Shaft Dia. | Usable @ 208v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

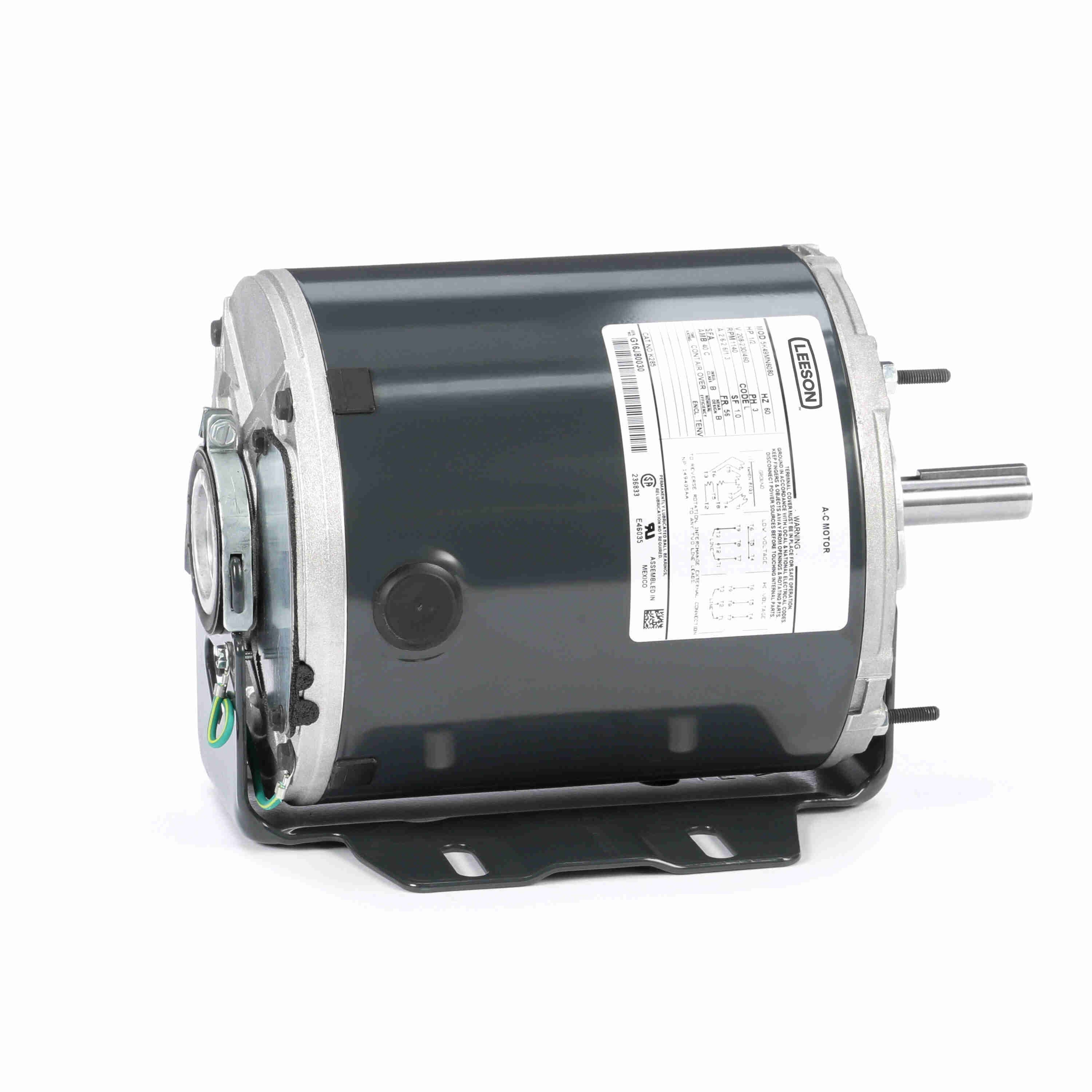

5K49MN6080 | 208-230/460V AC | 1/2 hp | 1101-1200 RPM | 56 | 1 7/8" | 1140 RPM | 5/8" | Yes | €943.31 | |
 |

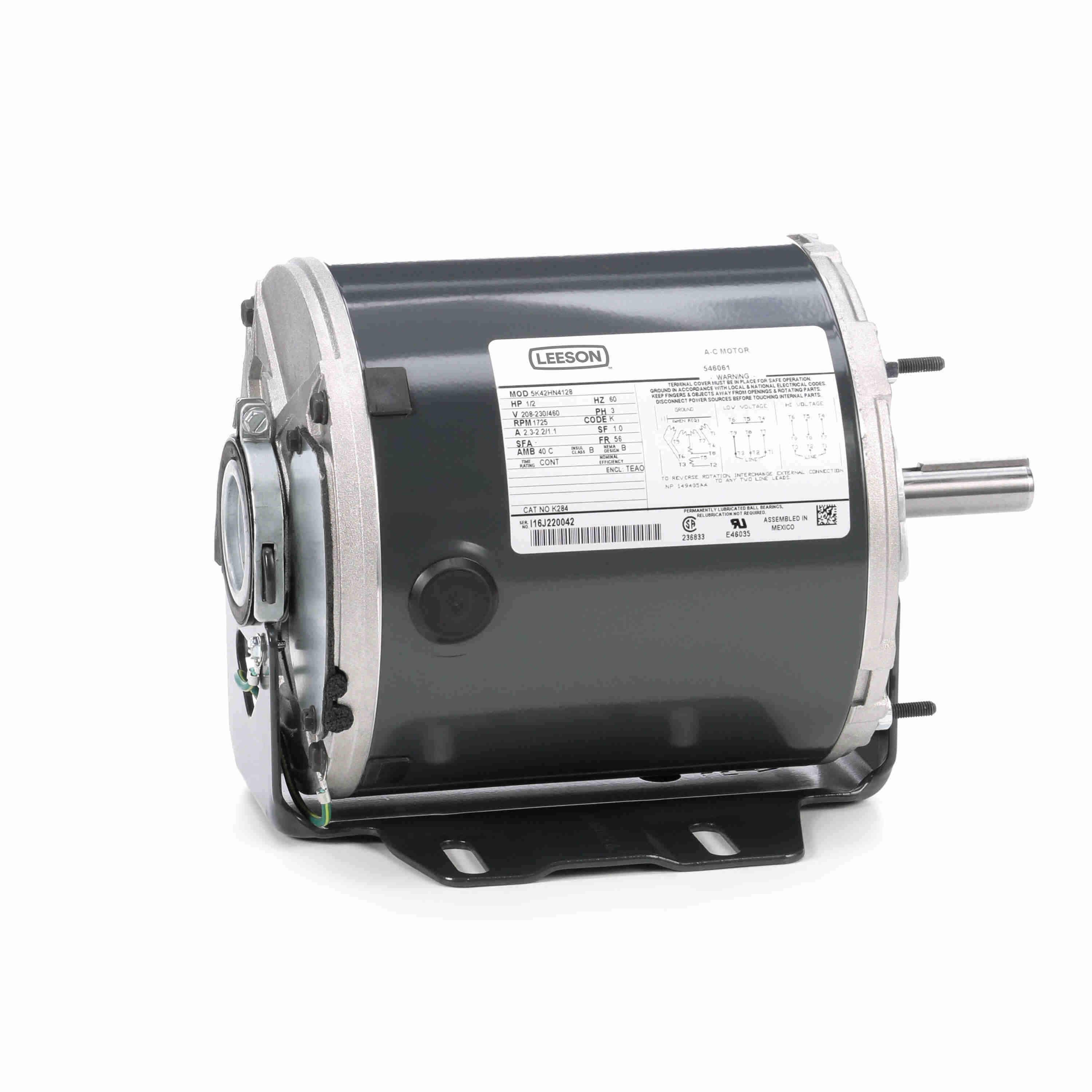

5K42HN4128 | 208-230/460V AC | 1/2 hp | 1701-1800 RPM | 56 | 1 7/8" | - | 5/8" | Yes | €616.74 | |
 |

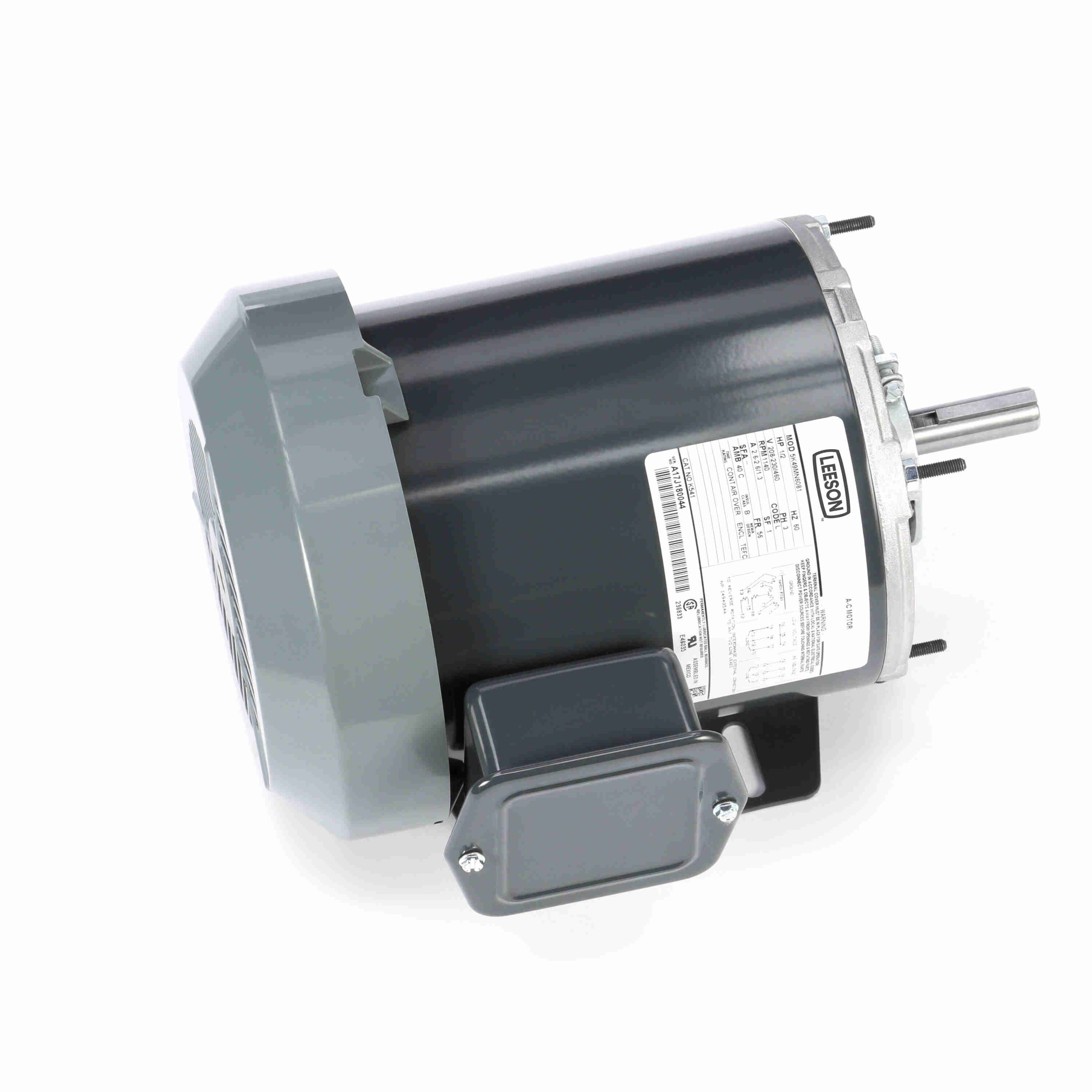

5K49MN6081 | 208-230/460V AC | 1/2 hp | 1101-1200 RPM | 56 | 1 7/8" | - | 5/8" | Yes | €1,013.46 |
