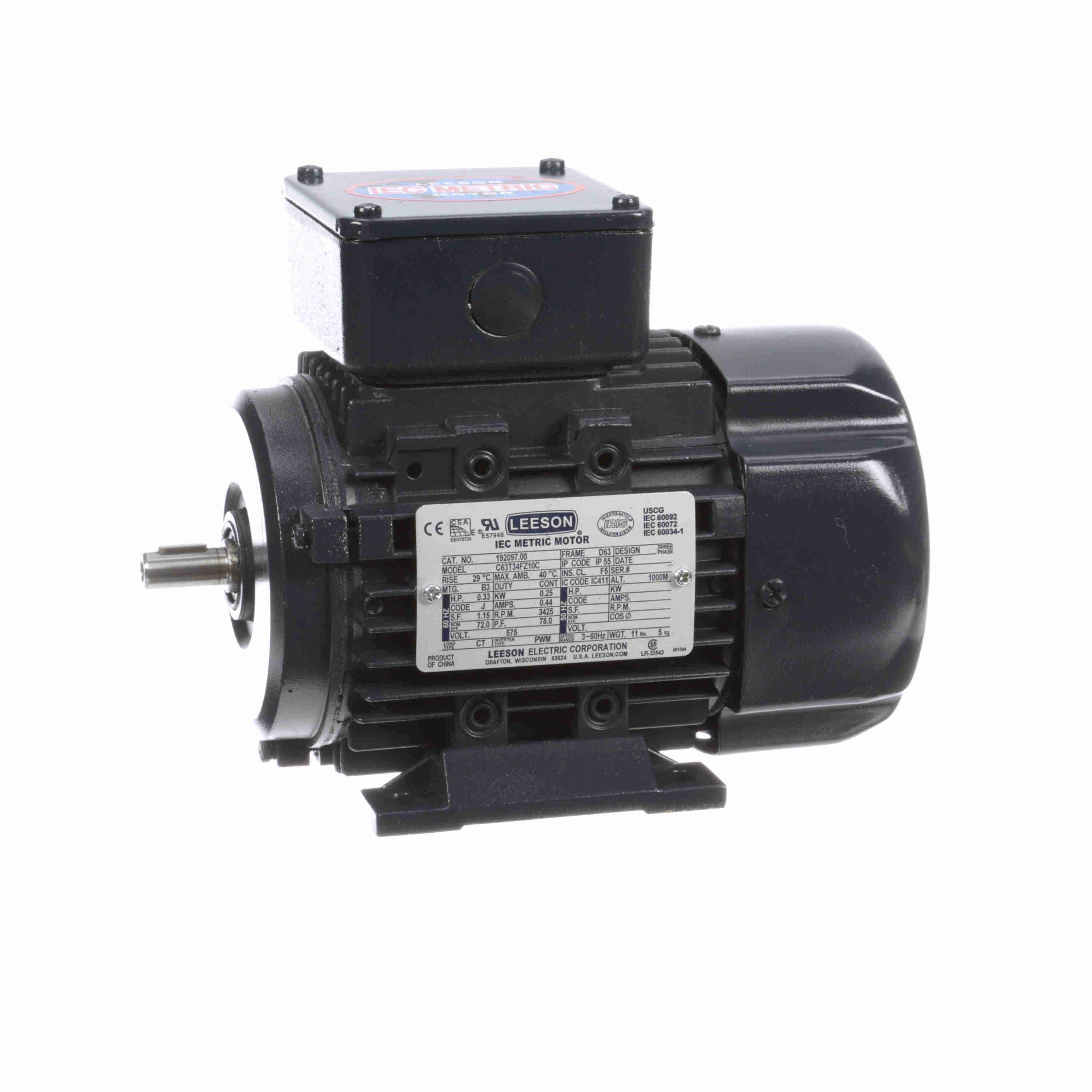

LEESON 192097.00 C63T34FZ10C General Purpose Motor, 1/3 HP, 3420 RPM
Get it by Wednesday, Dec 24
€91.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Motor |
| Amps | 0.44A |
| Assembly | B3 |
| Code | J |
| Design | B, J |
| Design Code | B |
| Drive End Bearing Size | 6202 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Efficiency Group | Premium |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Frame | D63 |
| Frame Length | 4 11/25" |
| Frame Material | Aluminum |
| Frame Type | 63 |
| Frequency | 60 Hz |
| Full Load Amps | 0.44A |
| Height | 7 17/25" |
| Hp | 33/100 hp |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | J |
| Kw | 0.25 kW |
| Length | 10.19" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 3430 RPM |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Nameplate Rpm | 3600 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6202 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | None |
| Phase | 3 |
| Power | 0.25 kW |
| Power Factor | 78 |
| Resistance Main | 111.5 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 0.437" |
| Shaft Length | 0.9" |
| Shaft Type | IEC |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Type | TF |
| Voltage | 575V |
| Width | 6.89" |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 19.51 |
| Ship length (cm) | 25.88 |
| Ship width (cm) | 17.5 |
| Country of Origin | CN |
Product Details:
- Supersedes Leeson - 192097.30 / C63T34FZ20A
- S. F Amps: .52
- Eff 100%: 72
- Bearing OPE: 6202
- Bearing PE: 6202
- Nameplate: 081044
- Winding: QT6322
- GROUP: 4
- Paint: VERIFY
