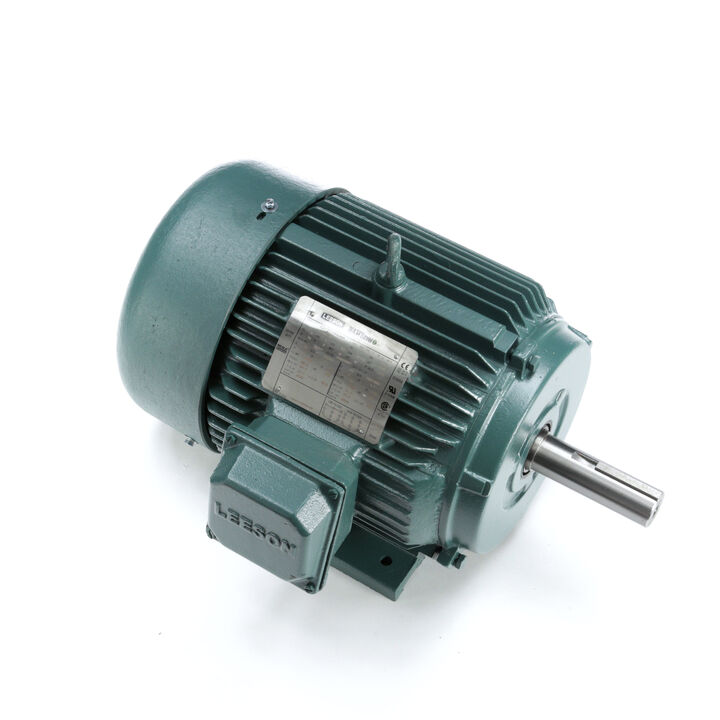

LEESON 171847.60 C213T17FK48A Grain Stirring Motor, 3 Phase, 1800 RPM, 208-230/460V, 7.50 HP
Get it by Monday, Aug 24
€1,471.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Stirring Motor |
| Drive End Bearing Size | 6308 |
| Efficiency | 91.7% |
| Electrical Phase | 3 |
| Enclosure | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors |
| Frequency | 60 Hz |
| Full Load Amps | 2-18.6/9.3A |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Kw | 5.6 kW |
| Mounting Type | Foot Mount |
| No. Of Poles | 4 |
| Nominal Voltage | 208/240/480V AC |
| Opp Drive End Bearing Size | 6306 |
| Phase | 3 |
| Product Datasheet | leeson-171847-60.pdf |
| Service Factor | 1.15 |
| Shaft Dia. | 1.375 |
| Shaft Length | 4.38 |
| Speed | 1770 RPM |
| Type | General Purpose |
| Voltage | 208-230V/460V |
| Voltage Ac | 208V AC, 230V AC, 460V AC |
Shipping Info:
| Ship weight (kg) | 70.2 |
| Ship height (cm) | 39.22 |
| Ship length (cm) | 58.34 |
| Ship width (cm) | 43.1 |
| Country of Origin | CN |
Documentation:
