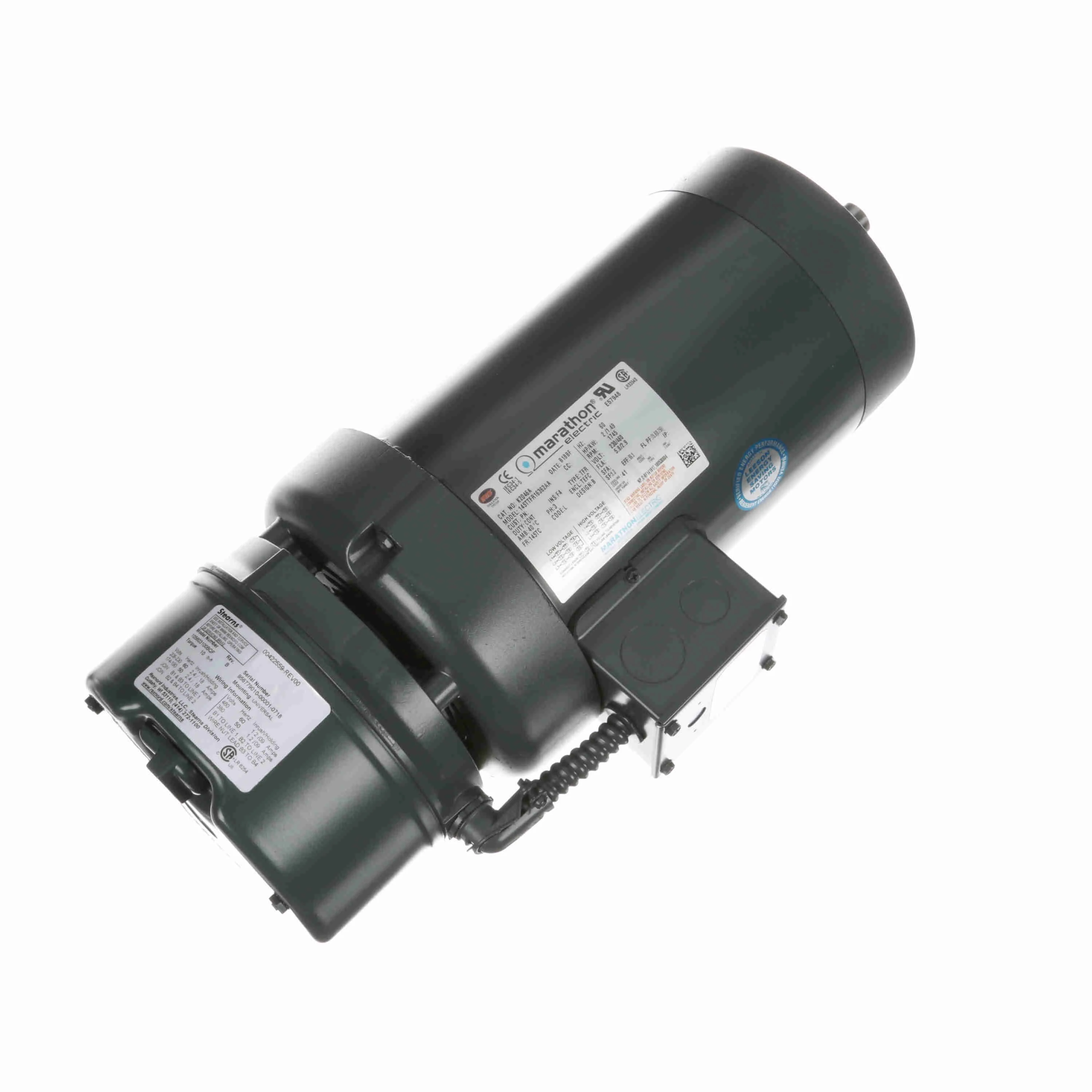

LEESON 145TTFR16362 K2046A / 145TTFR16362AA Brake Motor, 2 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Item: CH9TPKModel: 145TTFR16362Cross Ref: 61KN07 / K2046A / 145TTFR16362AA
In Stock
Get it by Thursday, Dec 25
€1,920.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Ambient Temp. | 40°C |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Brake Model/series | Series 56000 |
| Brake Rating | 10 lbs.-ft. |
| Break-down Torque | 28.8 lbs.-ft. |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 145TC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2A |
| Hp | 2 hp |
| Includes | Key |
| Insulation Class | Class F |
| Inverter Rated | No |
| Length Less Shaft | 15 1/2" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 40°C |
| Motor Application | Brake Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | No Protection |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Face |
| Nameplate Rpm | 1745 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 17 11/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Series | Series 56000 |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 46 lbs. |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 31.88 |
| Ship length (cm) | 114.3 |
| Ship width (cm) | 106.68 |
| Country of Origin | US |
Product Variants
| Product | Model | Hp | Frame | Phase | Mounting Type | Nameplate Rpm | Service Factor | Frame Material | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17F15677 | 1 1/2 hp | 56HC | 3 | Rigid Base | 1725 RPM | 1.15 | Steel | 18 11/16" | €2,129.90 | |
 |

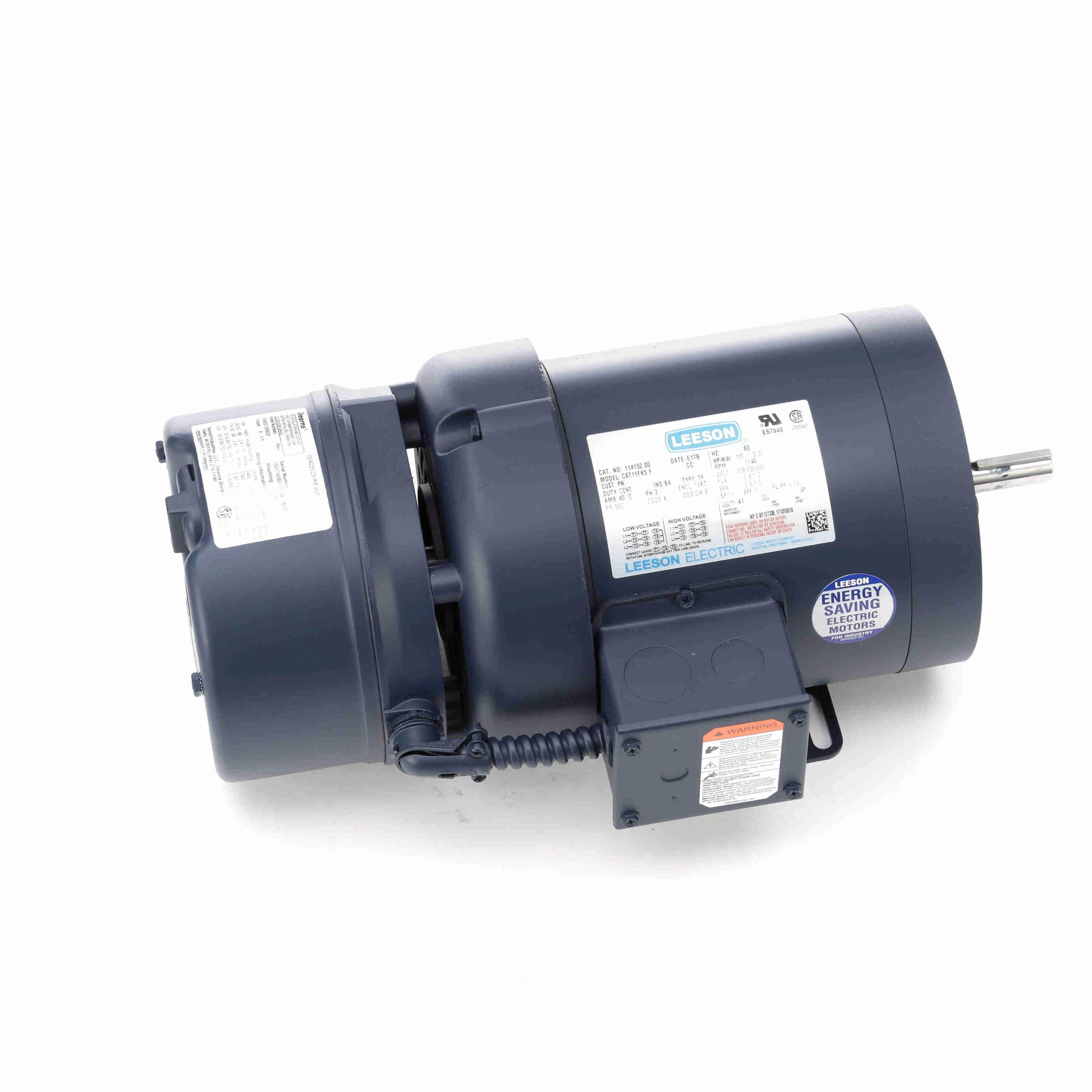

114152.00 | 1/2 hp | 56C | 3 | Rigid Base | - | 1.15 | Rolled Steel | 15 13/16" | €2,324.41 | |
 |

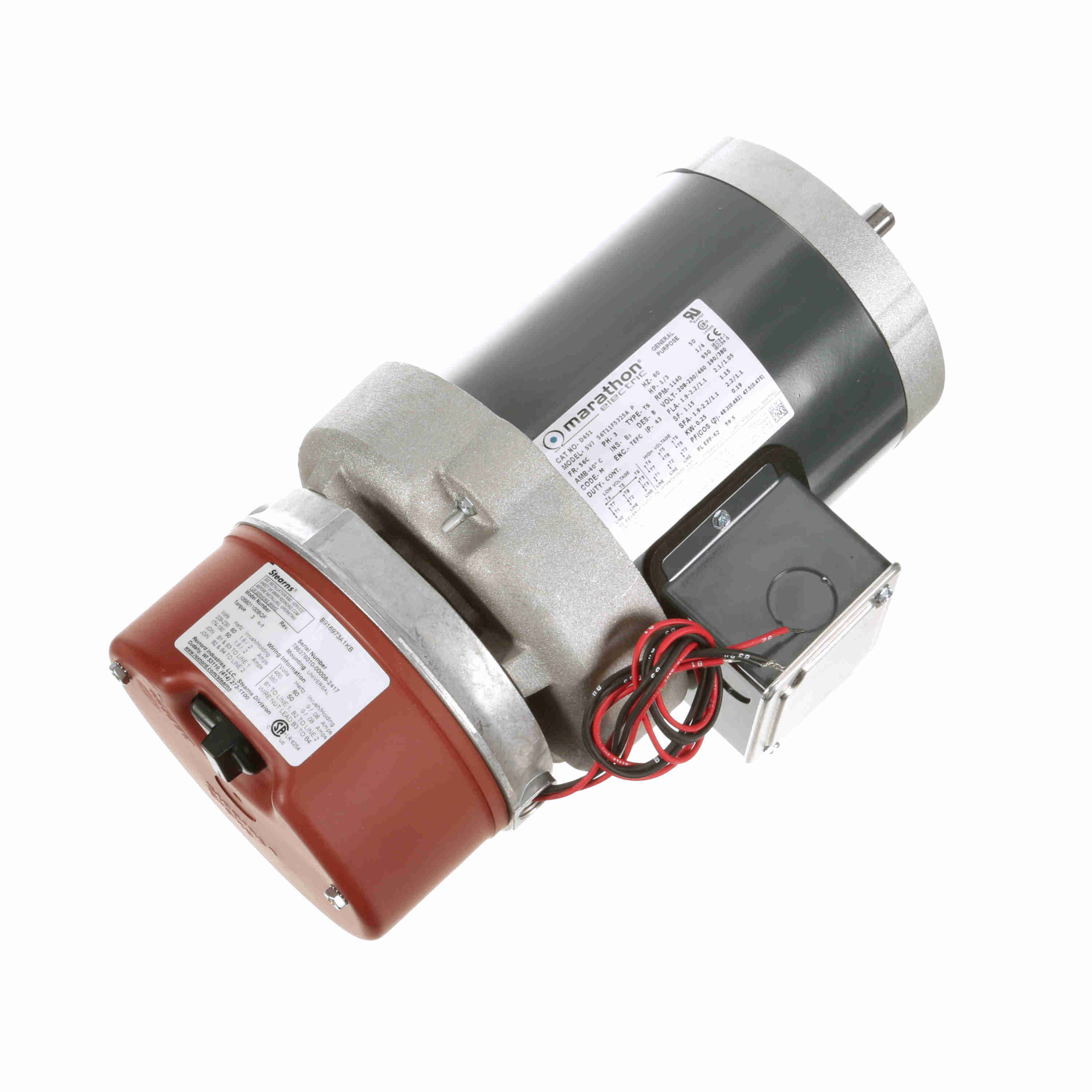

056T11F5325 | 1/3 hp | 56 | 3 | Rigid Base | 1140 RPM | 1.15 | Steel | 15 11/16" | €1,256.22 | |
 |
056B17F5330 | 1 1/2 hp | 56C | Single | Rigid Base | 1725 RPM | 1.15 | Steel | 19" | €1,789.69 |
