LEESON 056T11F5325 D451 / 56T11F5325A Brake Motor, 0.33/0.25 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1200 and 1000 RPM
Get it by Thursday, Dec 18
10.00% off
€1,130.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Ambient Temp. | 40°C |
| Bearing Protection | Double Seal Full Contact |
| Bearing Type | Ball |
| Brake Model/series | Series 56000 |
| Brake Rating | 3 lbs.-ft. |
| Break-down Torque | 6.4 lbs.-ft. |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Steel |
| Full Load Amps | 1.1A |
| Hp | 1/3 hp |
| Hz | 50/60 Hz |
| Includes | Key |
| Ins. Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 13 11/16" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 40°C |
| Motor Application | Brake Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | No Protection |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1140 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 62% |
| Overall Length | 15 11/16" |
| Phase | 3 |
| Power | 0.25/0.19 kW |
| Power Factor | 48.2 |
| Rpm Range | 1101-1200 RPM |
| Series | Series 56000 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 30 lbs. |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Frame | Phase | Mounting Type | Nameplate Rpm | Service Factor | Frame Material | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

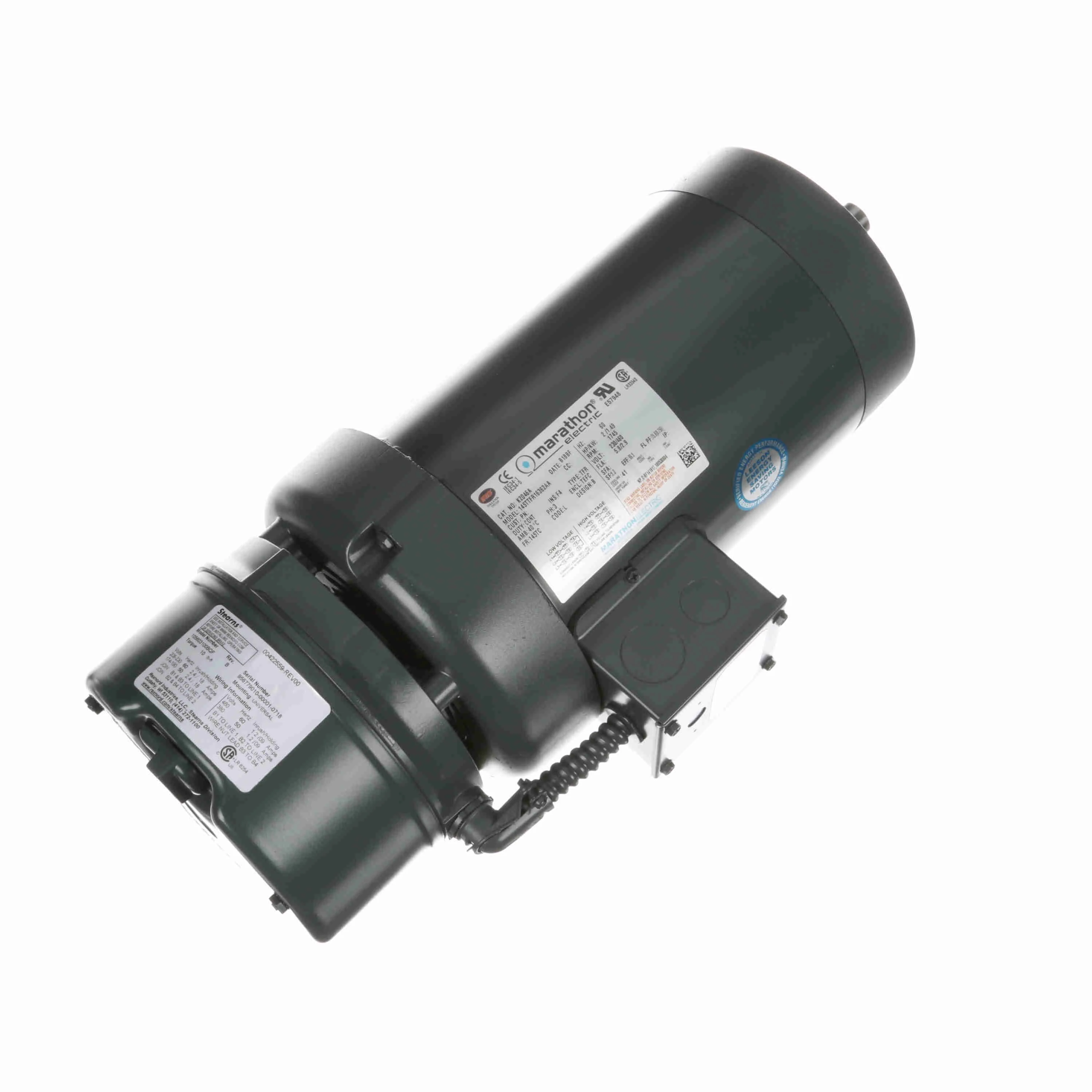

145TTFR16362 | 2 hp | 145TC | 3 | Face | 1745 RPM | 1 | Steel | 17 11/16" | €1,920.67 | |
 |

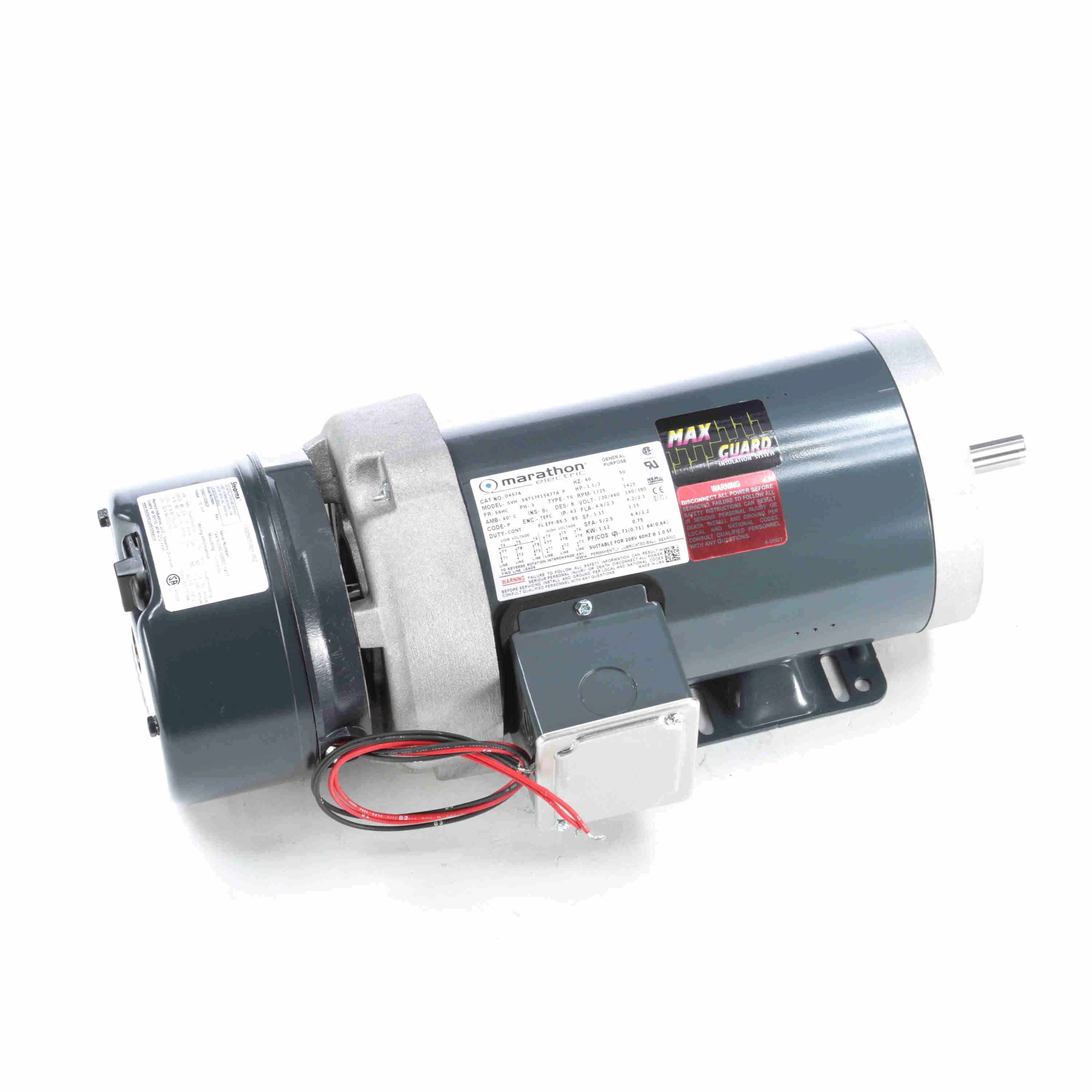

056T17F15677 | 1 1/2 hp | 56HC | 3 | Rigid Base | 1725 RPM | 1.15 | Steel | 18 11/16" | €2,129.90 | |
 |
114152.00 | 1/2 hp | 56C | 3 | Rigid Base | - | 1.15 | Rolled Steel | 15 13/16" | €2,324.41 | |
 |

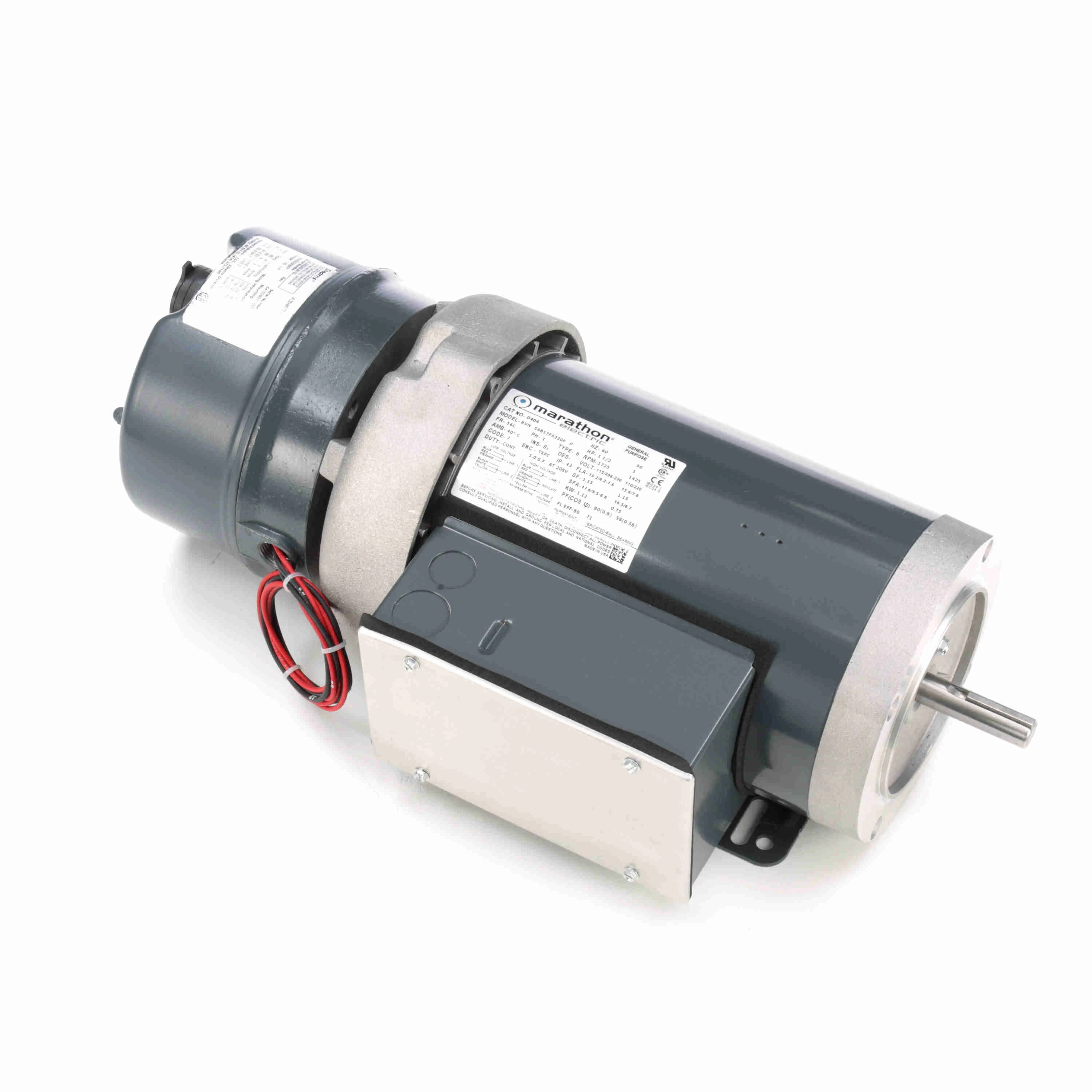

056B17F5330 | 1 1/2 hp | 56C | Single | Rigid Base | 1725 RPM | 1.15 | Steel | 19" | €1,789.69 |
