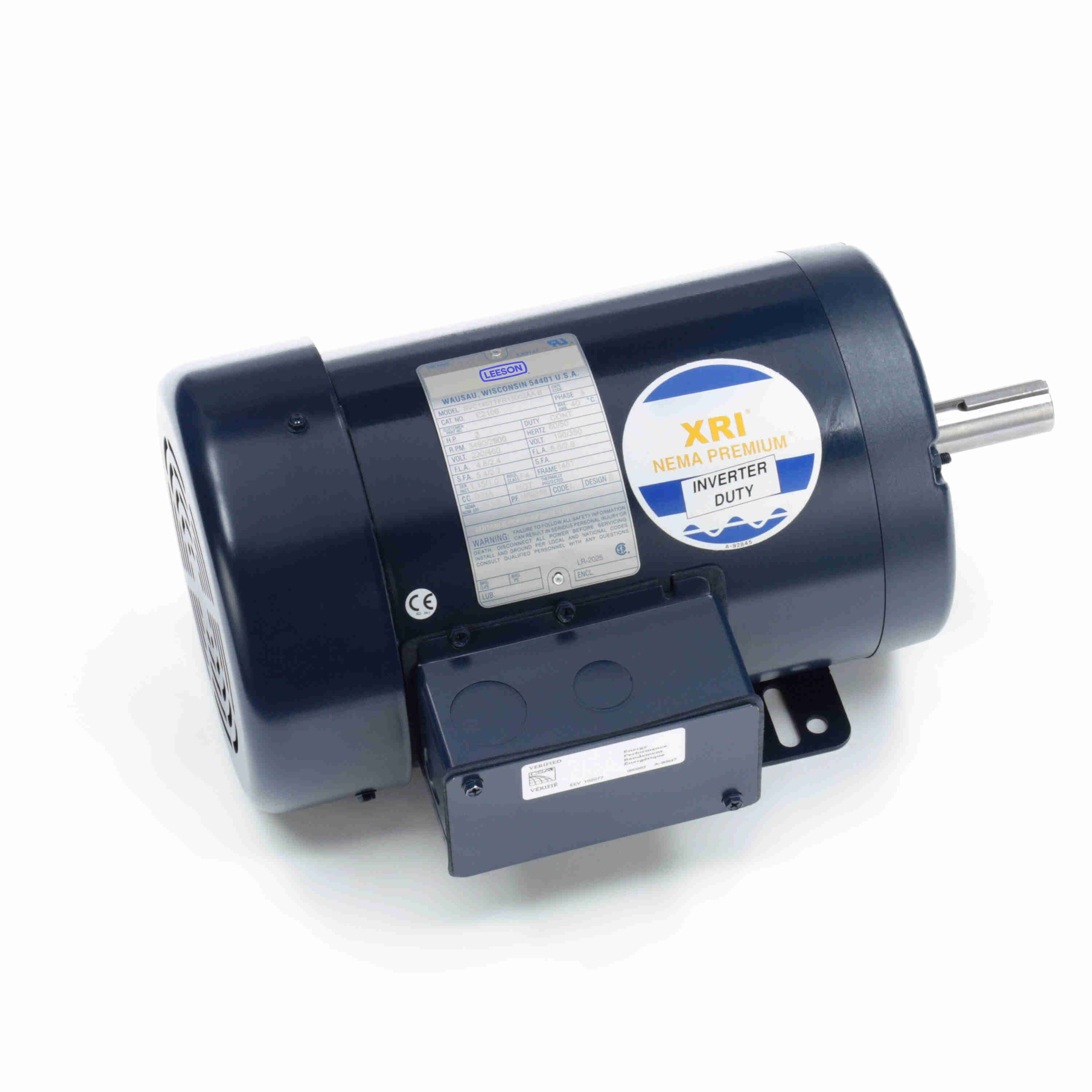

LEESON 145TTFR13002 E2106 / 145TTFR13002AA General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,109.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | NEMA Premium |
| Frame | 145T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 4.8/2.4A |
| Hp | 2 hp |
| Insulation Class | Class F |
| Inverter Rated | yes |
| Length Less Shaft | 11 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3490 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 13 3/4" |
| Phase | 3 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 3/8" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 1 yr. |
| Weight | 44 lbs. |
Shipping Info:
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501524000 |
| Country of Origin | US |
Product Variants
| Product | Model | Nameplate Rpm | Hp | Frequency | Full Load Amps | Motor Type | Frame | Ambient Temp. | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
143TTFN16040 | 1735 RPM | 1 hp | 50/60 Hz | 3/1.5A | Three Phase | 143T | 40°C | 85.5% | €1,192.91 | |
 |
145TTFN16045 | 1755 RPM | 2 hp | 50/60 Hz | 6/3A | Three Phase | 145T | 40°C | 86.5% | €1,025.41 | |
 |
143TTFR15642 | 1760 RPM | 1 hp | 50/60 Hz | 1.6/3.2A | Three Phase | 143T | 40°C | 85.5% | €905.25 | |
 |
145TTFR16033 | 1750 RPM | 1 1/2 hp | 50/60 Hz | 4.8/2.4A | Three Phase | 145T | 40°C | 86.5% | €774.15 | |
 |
145TTFR16078 | 1170 RPM | 1 hp | 50/60 Hz | 3.8/1.9A | Three Phase | 145T | 40°C | 82.5% | €1,154.54 | |
 |
145TTFR16035 | 1745 RPM | 2 hp | 50/60 Hz | 5.8/2.9A | Three Phase | 145T | 40°C | 86.5% | €863.86 | |
 |
254TTFL16026 | 1775 RPM | 15 hp | 50/60 Hz | 37.5/18.8A | Three Phase | 254T | 104°F | 91.7% | €3,477.60 |
