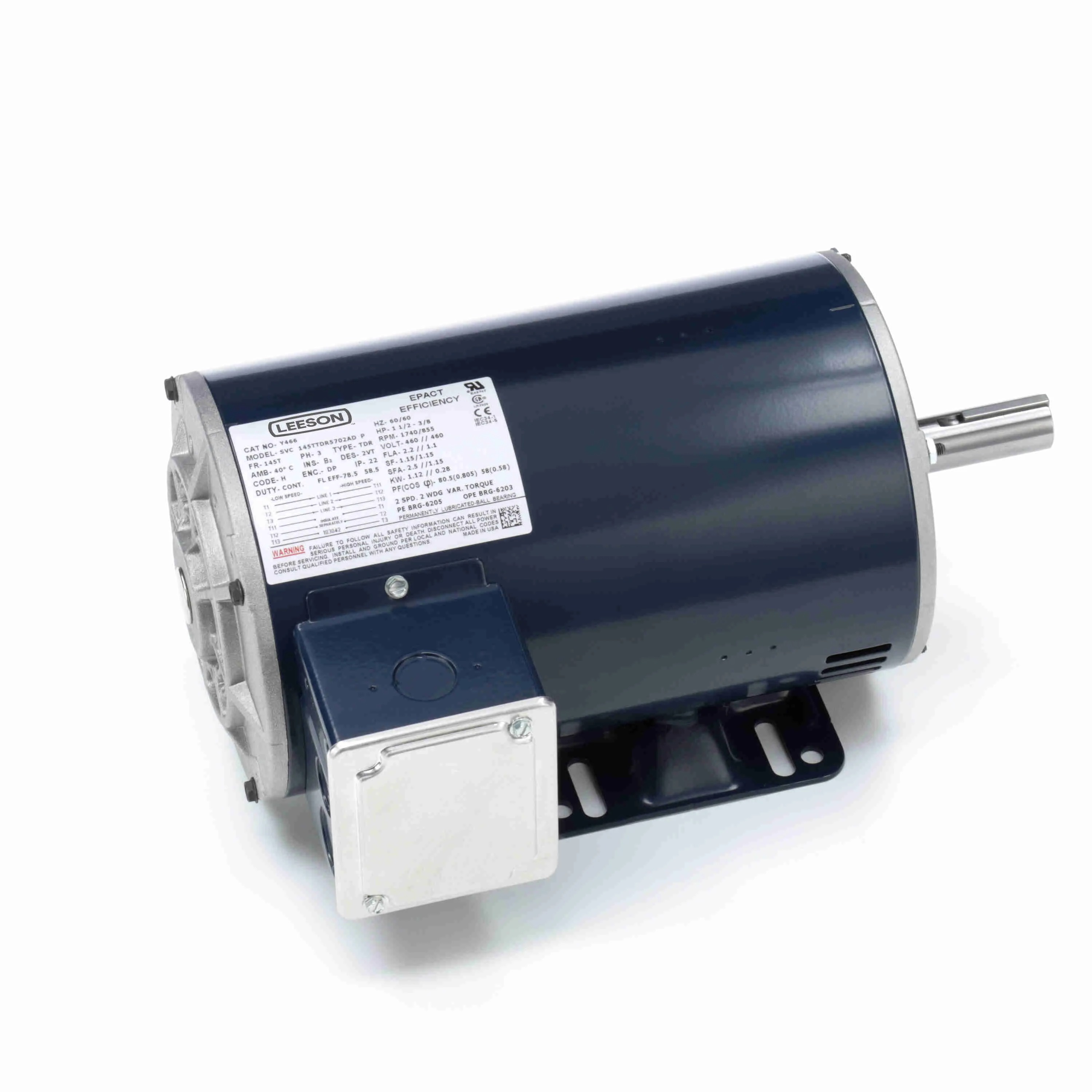

LEESON 145TTDR5702 Y466 / 145TTDR5702AD Motor, 1.50 and 0.38 HP, 3 Phase, 60 Hz, 460V, 1800 and 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,501.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Belt Drive Motor |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Duty Cycle | Continuous |
| Frame | 145T |
| Frame Material | Steel |
| Full Load Amps | 2.2/1.1A |
| Hp | 1 1/2 hp, 3/8 hp |
| Hz | 60 Hz |
| Insulation Class | Class B |
| Length | 13 1/2" |
| Length Less Shaft | 11 3/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740/885 RPM |
| No. Of Speeds | 2 |
| Nominal Efficiency | 78.5% |
| Number Of Speeds | 2 |
| Overall Length | 13 1/2" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Weight | 47 lbs. |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Nameplate Rpm | No. Of Speeds | Frame | Shaft Dia. | Voltage | Frame Material | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

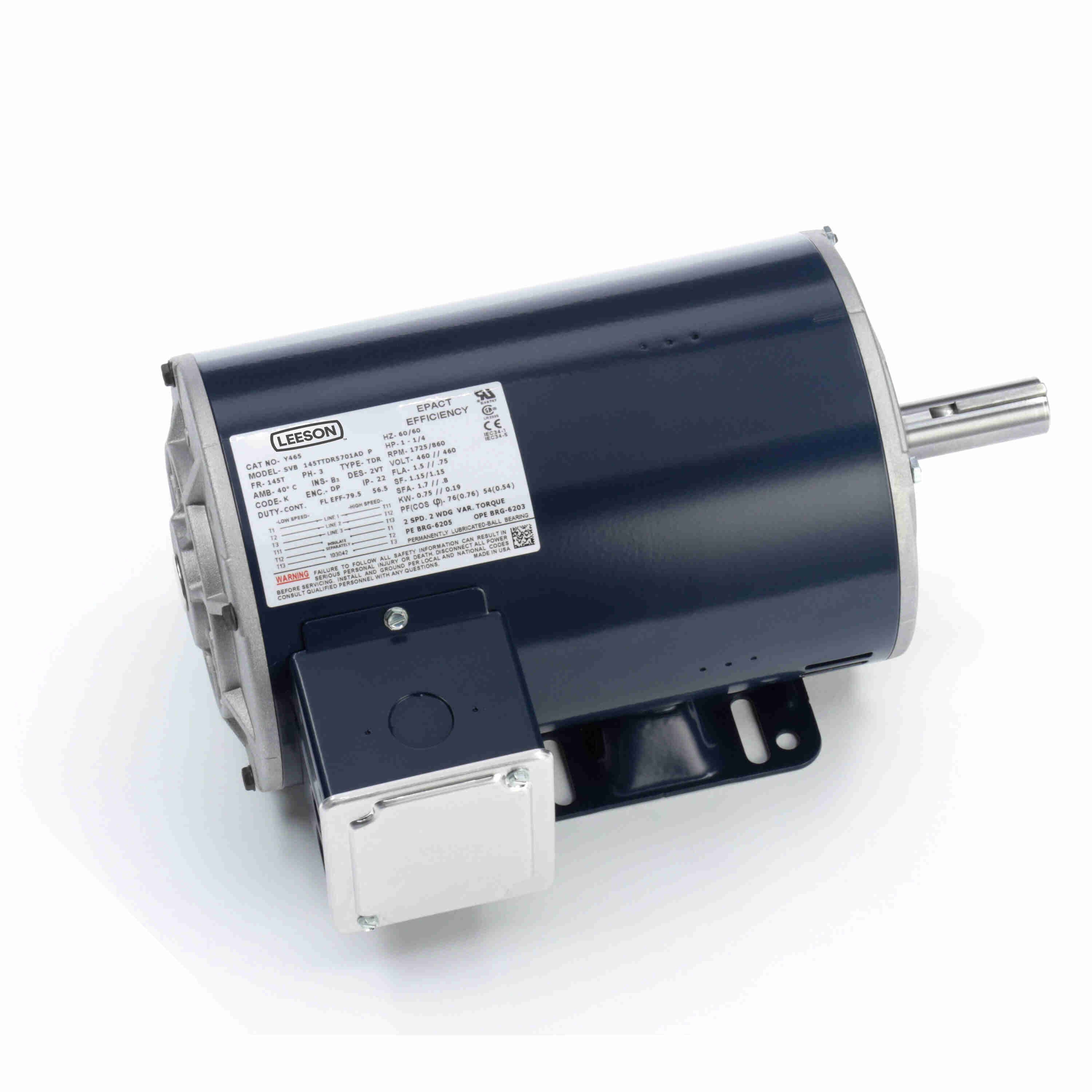

145TTDR5701 | 1 hp, 1/4 hp | 1725/860 RPM | 2 | 145T | 7/8" | - | Steel | 1.5/0.75A | €1,669.23 | |
![]() |

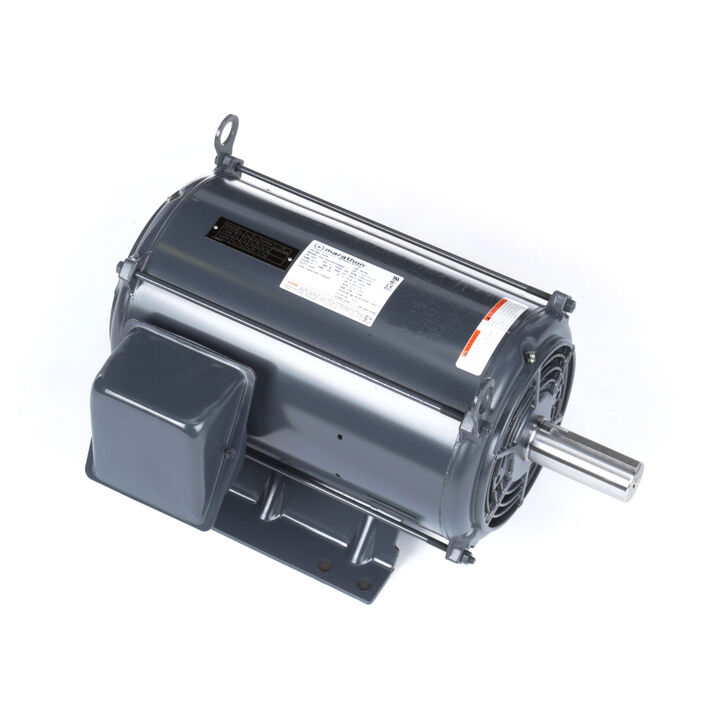

254TTDX7208 | 3 1/3 hp, 7 1/2 hp | 1755 RPM | 1 | 254T | 1 5/8" | 460V AC | Rolled Steel | 10/5.6A | €3,657.05 | |
![]() |

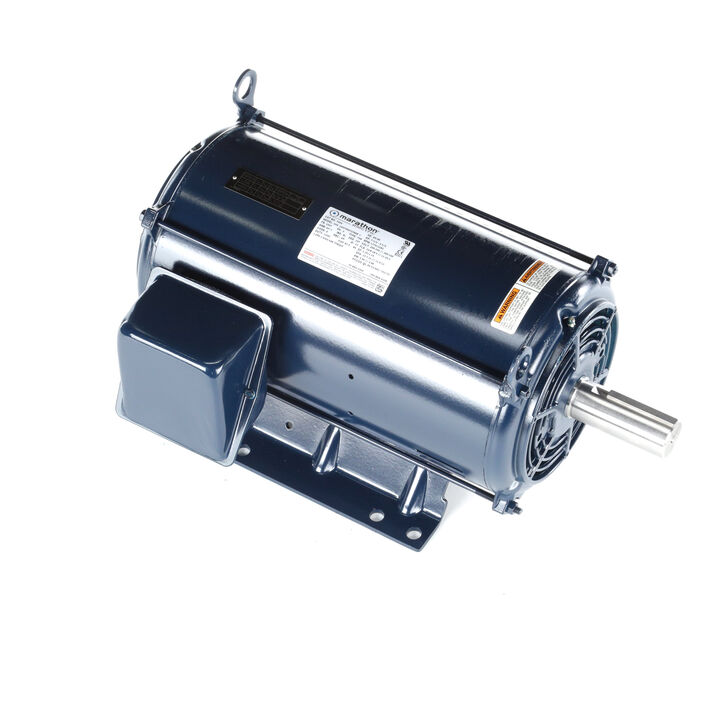

254TTDX7278 | 7 1/2 hp, 3 1/3 hp | 1770/1180 RPM | 2 | 254T | 1 5/8" | 200-230V AC | Rolled Steel | 20.8/11A | €3,657.05 |
