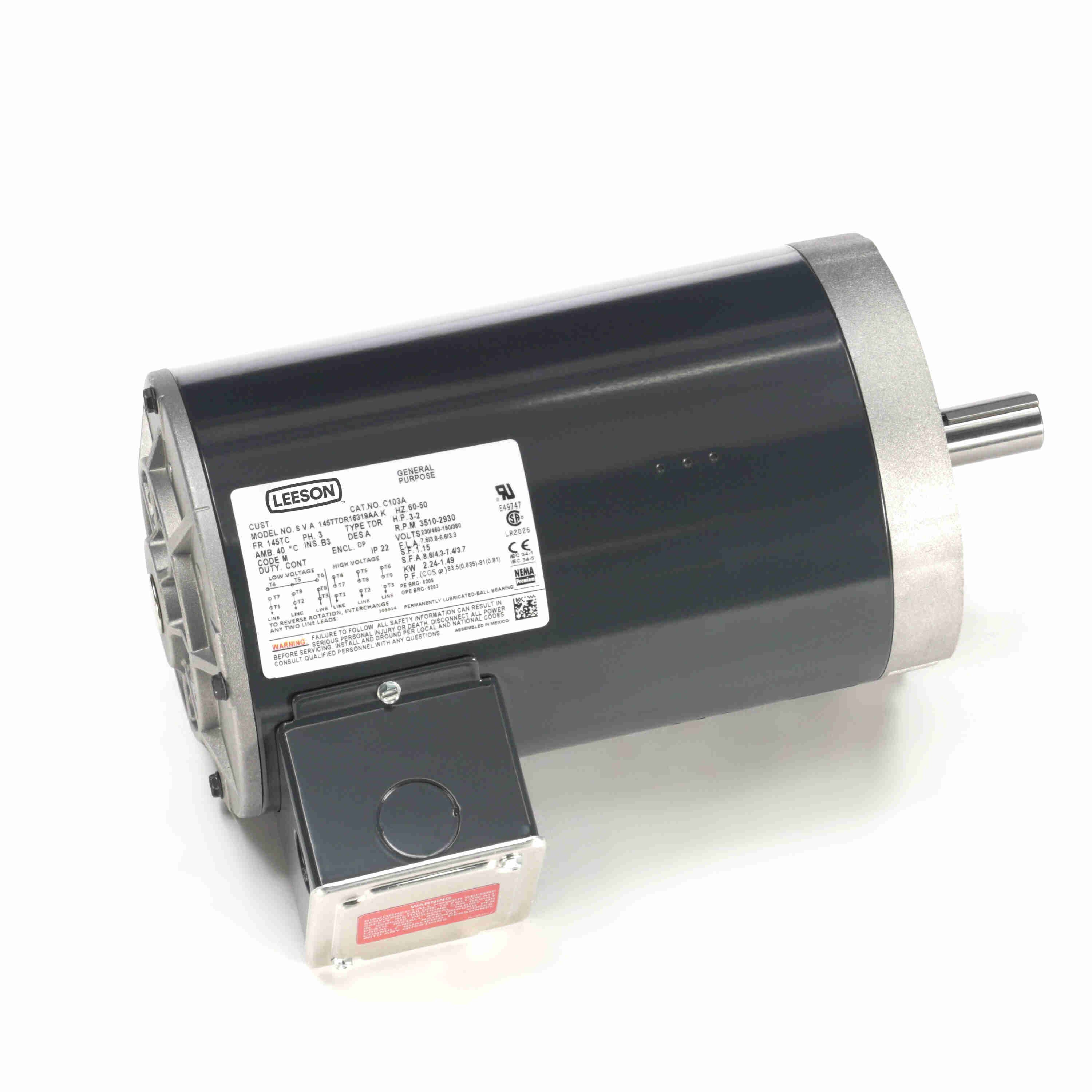

MARATHON MOTORS 145TTDR16319 3 HP General Purpose Motor, 3-Phase, 3510 Nameplate RPM | CD2FQR 122163.00

LEESON 145TTDR16319 145TTDR16319AA / C103A General Purpose Motor, 3/2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Item: CD2FQRModel: 145TTDR16319Cross Ref: 52XR47 / 145TTDR16319AA / C103A
Check Availability
In Stock
Output KW
Frame

Get it by Tuesday, Jun 30

€933.09
5.00% off
€886.44 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Bearing Type Ball
Cc Number CC003A
Conduit Box Position F1 Only
Duty Cycle Continuous
Efficiency 87.5%
Efficiency Group NEMA Premium
Frame 145TC
Frame Material Rolled Steel
Frequency 50/60 Hz
Full Load Amps 7.6/3.8A
Full Load Amps @ 50 Hz 7.6/3.8A
Hp 3 hp
Hp @ 50 Hz 3 hp
Insulation Class Class B
Inverter Rated No
Length Less Shaft 10 7/8"
Max. Ambient Temp. 40°C
Motor Application General Application
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Open Dripproof
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation CW, CCW
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Type Three Phase
Mounting Type Face
Nameplate Speed 3510 RPM
No. Of Speed 1
Nominal Efficiency 87.5%
Number CC003A
Overall Length 13"
Phase 3
Service Factor 1.15
Shaft Dia. 7/8"
Shaft Length 2 1/8"
Speed Over 3600 RPM
Standards Ce, Csa, Ul Recognized
Thermal Protection None
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V AC

Shipping Info:

Ship weight (kg) 26.1
Ship height (cm)21.89
Ship length (cm)41.61
Ship width (cm)26.67
HS code8501524000
Country of OriginMX

Product Variants

ProductModelFrequencyVoltageHpFull Load AmpsPhaseService FactorMounting TypeMotor TypePrice
MARATHON MOTORS 5KCR46JN0087Y General Purpose Motor Carbon Steel Tefc 1/3 Hp 1725/1425 Rpm 56c | AA9ZKL 1K124 / E255 5KCR46JN0087Y60 Hz115/230V AC1/3 hp3.8-4/1.9-2A11.35Face, BaseCapacitor Start€942.30
MARATHON MOTORS 5KCR46MN0055Y General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKP 1K127 / E264 5KCR46MN0055Y60 Hz115/230V AC1/2 hp5.6-5.8/2.8-2.9A11.25Face, BaseCapacitor Start, Run€841.44
MARATHON MOTORS 5KCR46MN0093 General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKQ 1K128 / E265 5KCR46MN009360 Hz115/230V AC1/2 hp5.6-5.8/2.8-2.9A11.25FaceCapacitor Start, Run€814.28
MARATHON MOTORS 5KCR46MN0055X General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKR 1K129 / E266 5KCR46MN0055X60 Hz115/230V AC1/2 hp5.6-5.8/2.8-2.9A11.25Face, BaseCapacitor Start, Run€886.09
MARATHON MOTORS 5KCR49PN0099X General Purpose Motor Carbon Steel Tefc 3/4 Hp 1725/1425 Rpm 56c | AA9ZKV 1K132 / E275 5KCR49PN0099X60 Hz115/230V AC3/4 hp8.8-9/4.4-4.5A11.25Face, BaseCapacitor Start, Run€1,094.78
MARATHON MOTORS 5KCR49UN0107 General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKX 1K134 / EG283 5KCR49UN010760 Hz115/230V AC1 hp11.4-11.8/5.7-5.9A11.15FaceCapacitor Start€1,031.58
MARATHON MOTORS 5KCR49UN0106X General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKY 1K135 / EG284 5KCR49UN0106X60 Hz115/230V AC1 hp11.4-11.8/5.7-5.9A11.15Face, BaseCapacitor Start, Run€1,060.60
