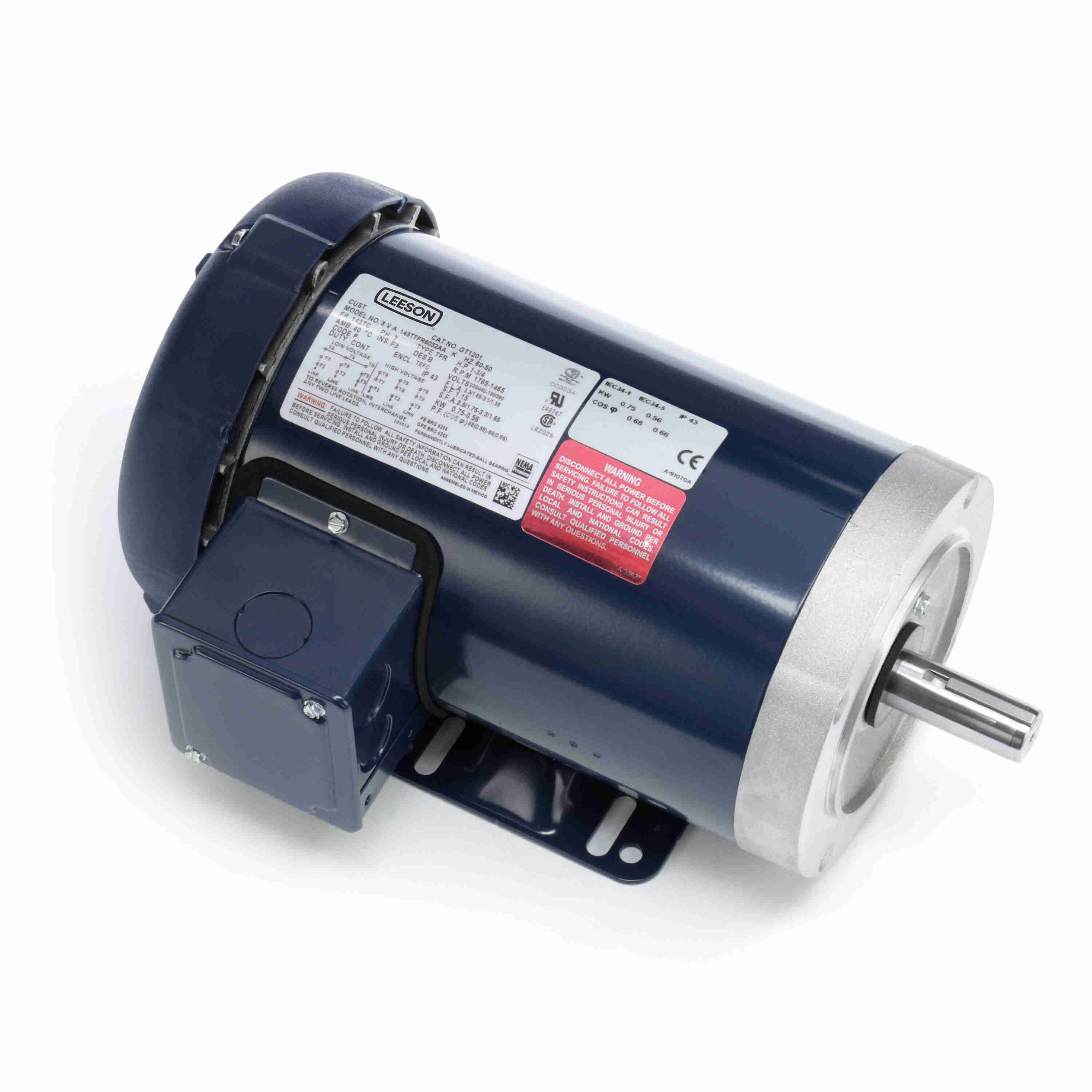

LEESON 143TTFR6032 GT1201 / 143TTFR6032AA General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€708.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | NEMA Premium |
| Frame | 143TC |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3.3/1.65A |
| Full Load Amps @ 50hz | 3.3/1.7A |
| Hp | 1 hp |
| Hp @ 50hz | 1 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 11 1/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 13 3/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 1 yr. |
| Weight | 42 lbs. |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Details:
- Supersedes Marathon - U701 / 143TTFR4032
Product Variants
| Product | Model | Nameplate Rpm | Hp | Full Load Amps | Full Load Amps @ 50hz | Frame | Frame Material | Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
145TTFR6009 | 3500 RPM | 2 hp | 5/2.5A | 5/2.5A | 145TC | Rolled Steel | 85.5% | 14 3/8" | €837.40 | |
 |
145TTFR6040 | 1760 RPM | 2 hp | 6/3A | 6/3A | 145TC | Steel | 86.5% | 14 7/8" | €727.35 | |
 |
145TTFR6058 | 1755 RPM | 1 1/2 hp | 4.6/2.3A | 4.6/2.3A | 145TC | Rolled Steel | 86.5% | 14 3/8" | €472.16 |
