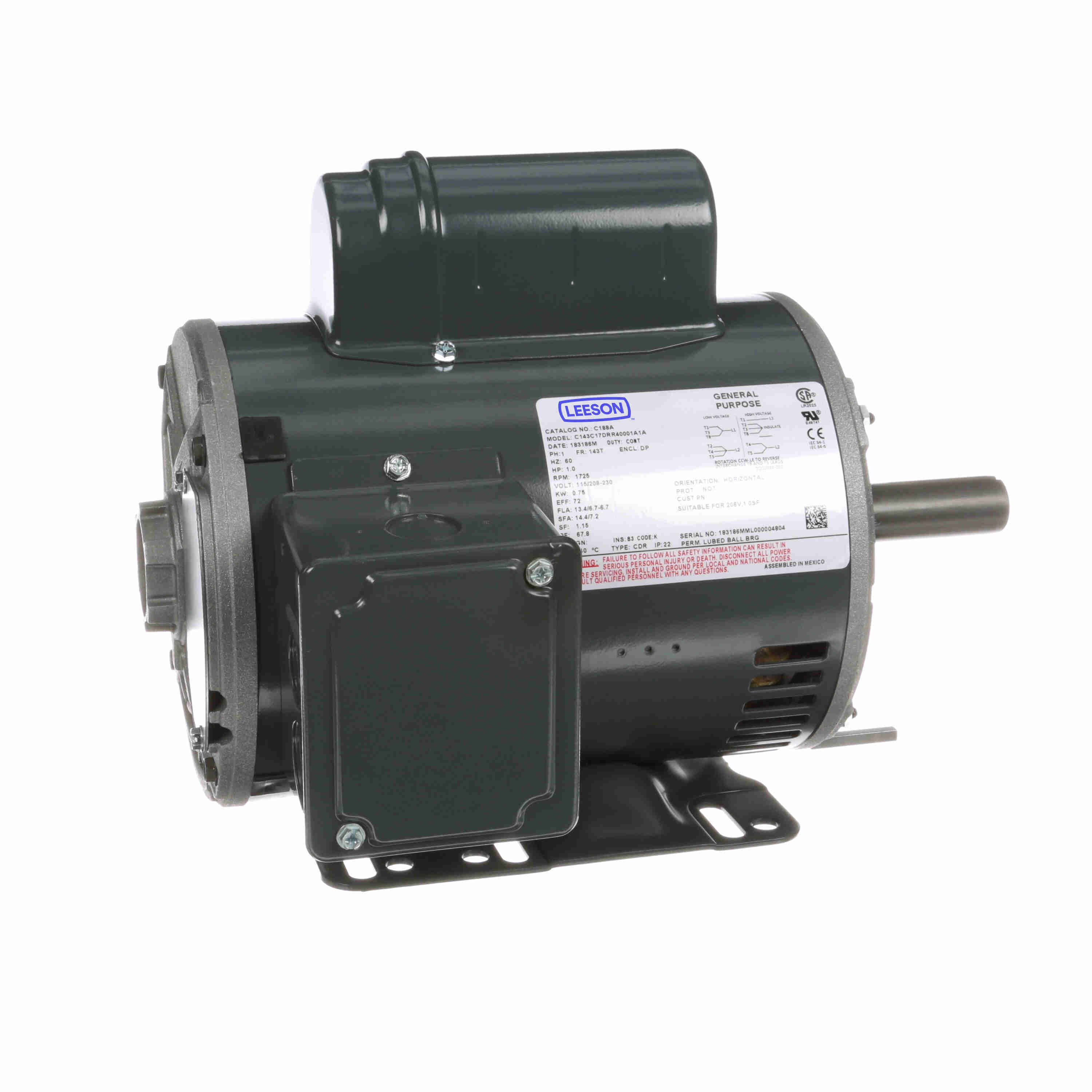

LEESON 143C17DRR40001A1 143C17DRR40001A1A / C188A General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Item: CT2FQNModel: 143C17DRR40001A1Cross Ref: 482R57 / 143C17DRR40001A1A / C188A
In Stock
Get it by Monday, Aug 31
5.00% off
€619.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 143T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 13.4/6.7-6.7A |
| Hp | 1 hp |
| Ins. Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| Nominal Efficiency | 72% |
| Overall Length | 12 3/8" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Speed | 1701-1800 RPM |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
