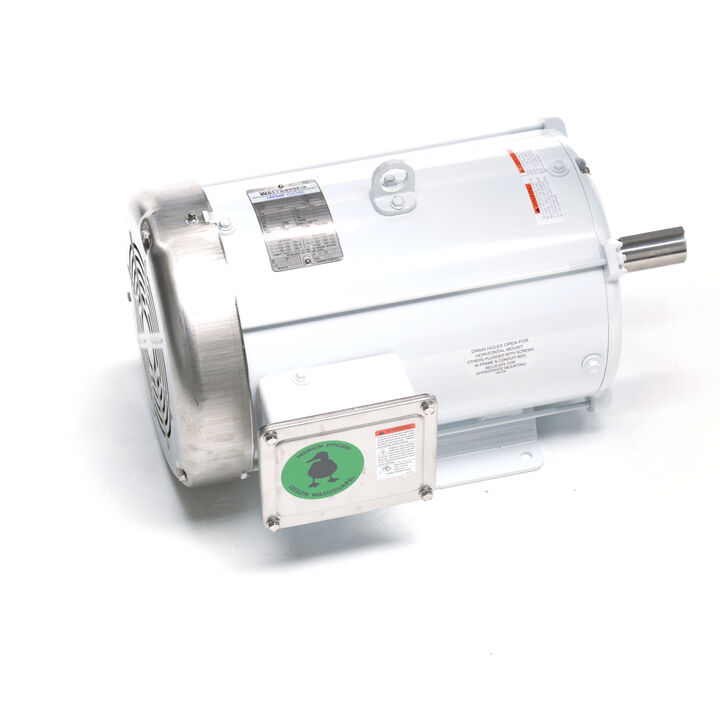

LEESON 140820.00 C215T17WB5A General Purpose Motor, 10 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
10.00% off
€3,703.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | 210-009 |
| Bearing Type | Ball |
| Body Dia. | 9.63" |
| Code | H |
| Color | White |
| Conduit Box Location | Exterior |
| Design | B |
| Drive End Bearing Size | 6209 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Enclosure Type | Tefc |
| Finish | Epoxy Coated |
| Frame | 215T |
| Frame Material | Rolled Steel |
| Frame Type | 215T |
| Frequency | 60 Hz |
| Full Load Amps | 26.8/13.4A |
| Grease Type | Polyrex EM |
| Hp | 10 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 7.5 kW |
| Length Less Shaft | 16 3/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CWSE |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1765 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.5% |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 19 11/16" |
| Packaging | B |
| Phase | 3 |
| Power | 7.5 kW |
| Power Factor | 77 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Standards | Bissc, Ce, Csa, Ul |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Weight | 181 lbs. |
Shipping Info:
| Ship weight (kg) | 81.45 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 57.48 |
| Ship width (cm) | 40.97 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 91.7
- Bearing OPE: 6206
- CC Number: CC005A
- Bearing PE: 6209
- Nameplate: 081341
- Winding: T9497
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 32.4 / 16.2
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Finish | Frame | Full Load Amps | Service Factor | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
112427.00 | 208-230/460V | 1/2 hp | 1725 RPM | Epoxy Coated | 56 | 2A | 1.15 | 5/8" | €872.33 | |
 |
112428.00 | 208-230/460V | 3/4 hp | 1725 RPM | Epoxy Coated | 56 | 1.4A | 1.15 | 5/8" | €1,146.51 | |
 |
119475.00 | 208-230/460V | 1 hp | 1760 RPM | Epoxy Coated | 143JM | 3.2/1.6A | 1.15 | 5/8" | €1,599.78 | |
 |
121865.00 | 230/460V | 1 hp | 1760 RPM | Unfinished | 143T | 3.2/1.6A | 1.15 | 7/8" | €1,514.71 | |
 |
121866.00 | 230/460V | 2 hp | 1745 RPM | Epoxy Coated | 145T | 2A | 1.15 | 7/8" | €1,559.84 | |
 |
121869.00 | 230/460V | 1 1/2 hp | 1750 RPM | Epoxy Coated | 145T | 2.4A | 1.15 | 7/8" | €891.01 | |
 |
132196.00 | 230/460V | 3 hp | 1760 RPM | Epoxy Coated | 182T | 7.8/3.9A | 1.15 | 1 1/8" | €1,594.30 |
