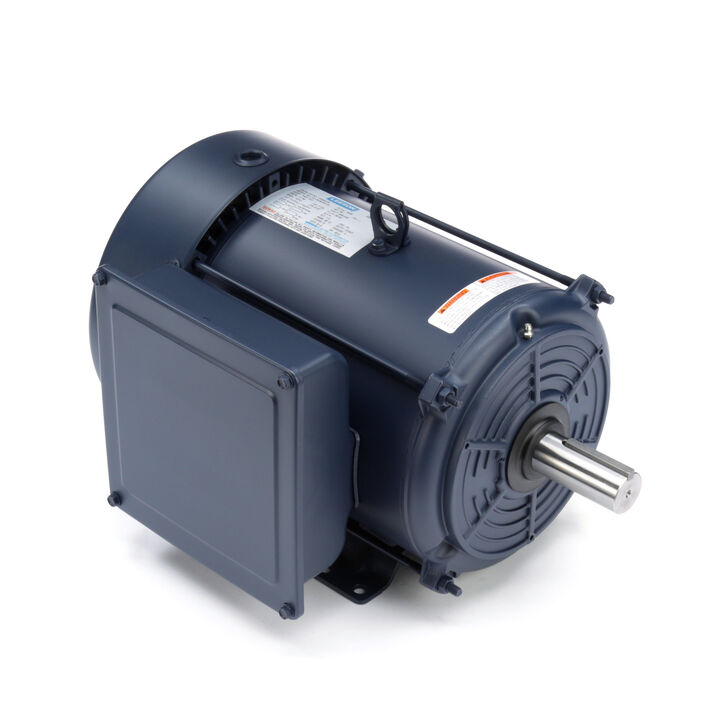

LEESON 140581.00 C215K17FB12B General Purpose Motor, 10 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Get it by Wednesday, Apr 8
€2,048.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Assembly | 210-005.02 |
| Code | G |
| Drive End Bearing Size | 6207 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Type | Tefc |
| Frame | 215T |
| Frame Material | Rolled Steel |
| Frame Type | 215T |
| Frequency | 60 Hz |
| Full Load Amps | 40A |
| Grease Type | Polyrex EM |
| Hp | 10 hp |
| Insulation Class | Class F |
| Kw | 7.5 kW |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | G |
| No. Of Poles | 4 |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 7.5 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 95 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Type | KF |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 95.4 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 57.48 |
| Ship width (cm) | 40.97 |
| Country of Origin | MX |
Product Details:
- S. F Amps: 45
- Eff 100%: 86.5
- Bearing OPE: 6206
- CC Number: EXEMPT
- Bearing PE: 6207
- Nameplate: 081285.04
- Winding: K9425
- GROUP: 2
- Paint: BLUE - LEESON (ENAMEL)
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Motor Type | Service Factor | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131509.00 | 115/208-230V | 1800 RPM | 2 hp | 24.8/13-12.4A | Squirrel Cage Induction Run | 1 | 182T | 40°C | €956.75 | |
 |
131526.00 | 115/208-230V | 1200 RPM | 1 1/2 hp | 11/12A | Squirrel Cage Induction Run | 1 | 184T | 40°C | €1,661.59 | |
 |
131533.00 | 115/208-230V | 1800 RPM | 3 hp | 33.6/18-16.8A | Capacitor Start | 1 | 184T | 40°C | €1,074.25 | |
 |
131538.00 | 230V | 1800 RPM | 5 hp | 23A | Capacitor Start/Run | 1 | 184T | 40°C | €1,350.52 | |
 |
131549.00 | 230V | 3600 RPM | 5 hp | 19.8A | Capacitor Start/Run | 1.15 | 184T | 40°C | €1,256.97 | |
 |
131637.00 | 115/208-230V AC | 3600 RPM | 3 hp | 26.8/14.4-13.4A | Capacitor Start/Run | 1.15 | 9.5" | 40°C | €1,502.85 | |
 |
131856.00 | 208-230V | 1800 RPM | 5 hp | 21-23A | Capacitor Start/Run | 1 | 184T | 40°C | €1,290.62 |
