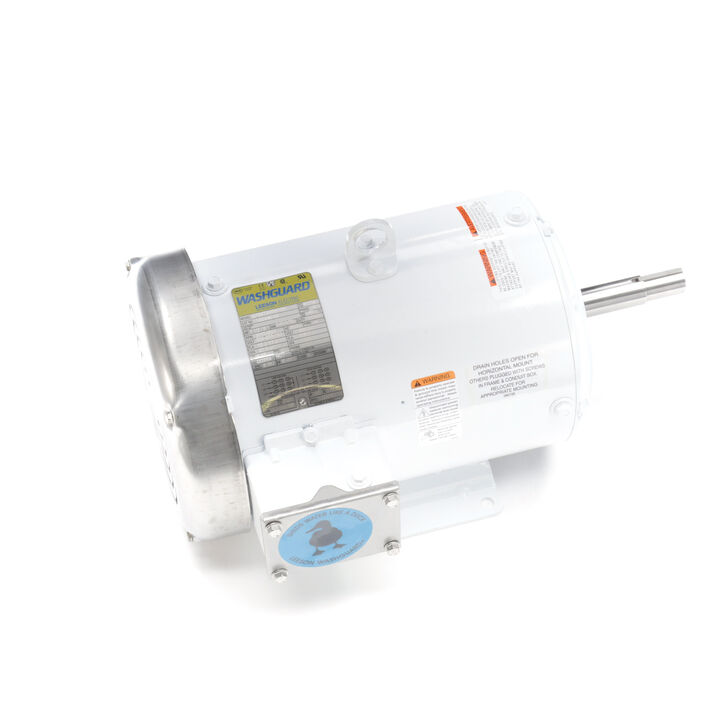

LEESON 132446.00 C184T34WK19A Washdown Pump Motor, 7.50/5 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 3600 RPM
Get it by Tuesday, Dec 23
10.00% off
€2,968.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Color | White |
| Conduit Box Location | Exterior |
| Design | A |
| Drain Plug | (1) Drain Plugs In Conduit Box |
| Drive End Bearing Size | 6207 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 90.1% |
| Enclosure Type | Tefc |
| Endshield Material | Steel |
| Finish | Epoxy Coated |
| Frame | 184JM |
| Frame Material | Rolled Steel |
| Frame Type | 184JM |
| Frequency | 60 Hz |
| Full Load Amps | 8.8A |
| Grease Type | Polyrex EM |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Kw | 5.6 kW |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3510 RPM |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 90.1% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 17 5/8" |
| Packaging | F |
| Phase | 3 |
| Power | 5.6 kW |
| Power Factor | 88.4 |
| Rotation | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.2 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4.21" |
| Stud Length | 6 1/2" |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 40.5 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - G131970.00
- Eff 75%: 91.2
- Bearing OPE: 6205
- CC Number: CC005A
- Bearing PE: 6207
- Nameplate: 081292.02
- Winding: T82153
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 21.8-20 / 10
- Eff 100%: 90.1 / 90.2
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Finish | Frame | Full Load Amps | Insulation Class | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

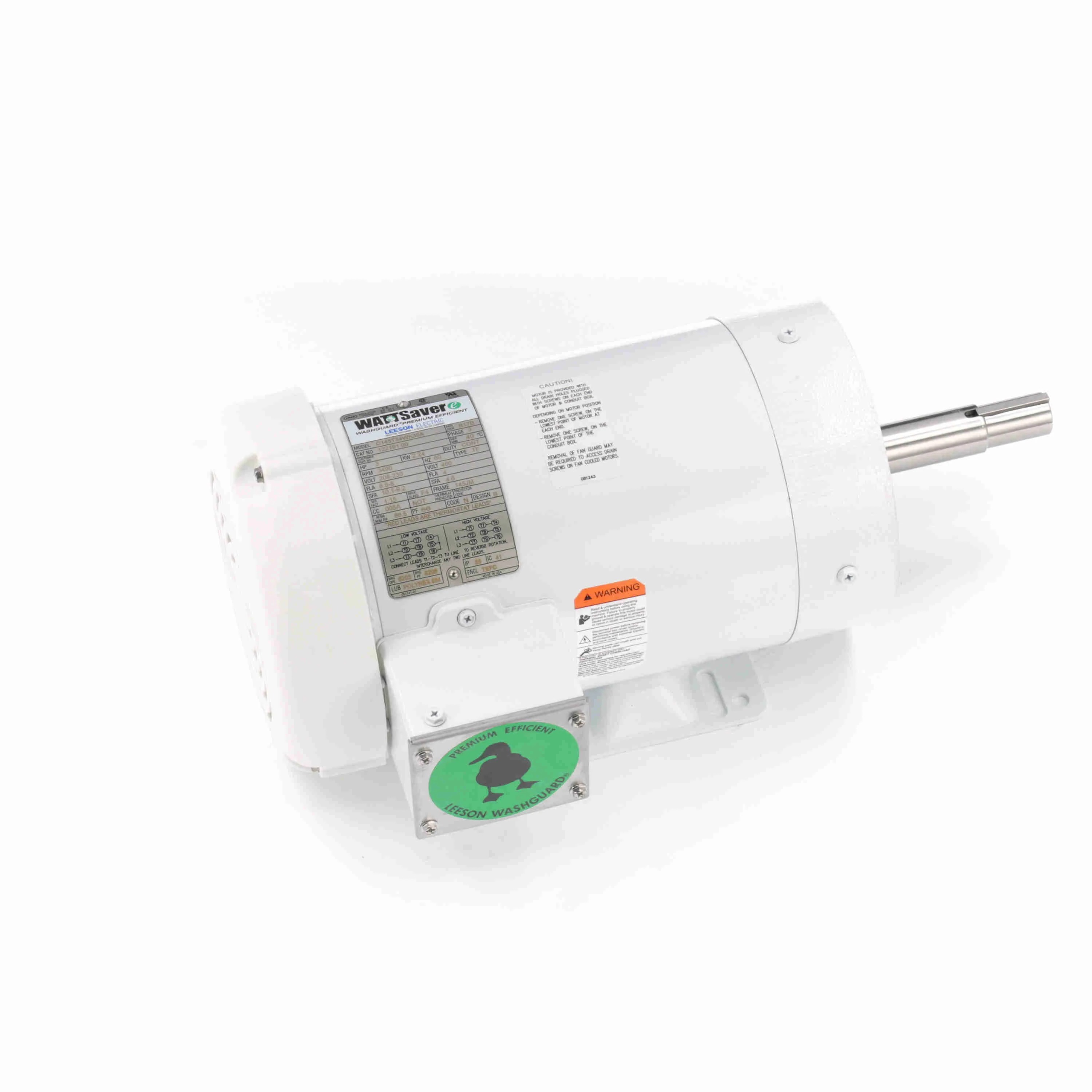

122191.00 | 208-230/460V | 3 hp | 3490 RPM | Unfinished | 145JM | 8-8.8/4A | Class F | 40°F | €2,261.74 | |
 |

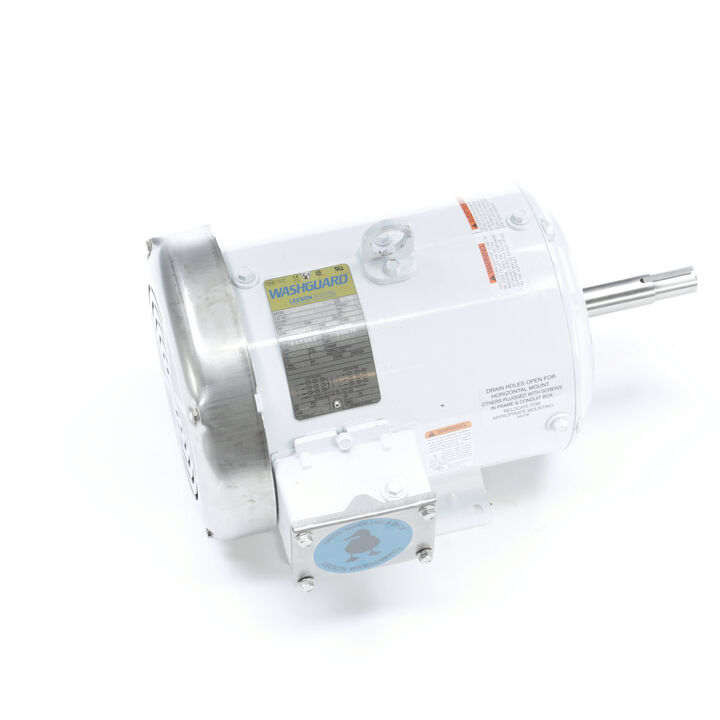

132442.00 | 208-230/460V | 3 hp | 1770 RPM | Epoxy Coated | 182JM | 7.8-8.4/3.9A | Class F | 104°F | €3,027.58 | |
 |

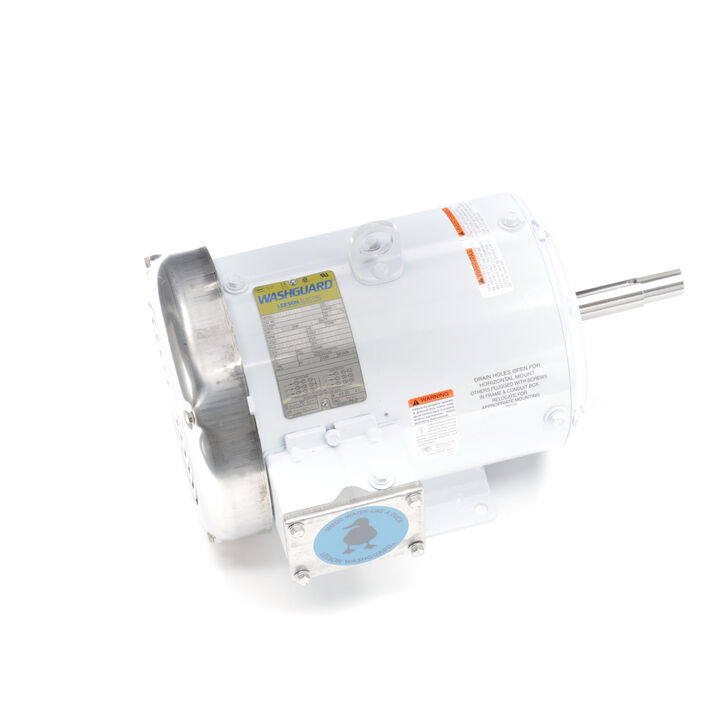

132443.00 | 208-230/460V | 5 hp | 3495 RPM | Epoxy Coated | 184JM | 12-13.2/6A | Class F | 104°F | €3,301.70 | |
 |

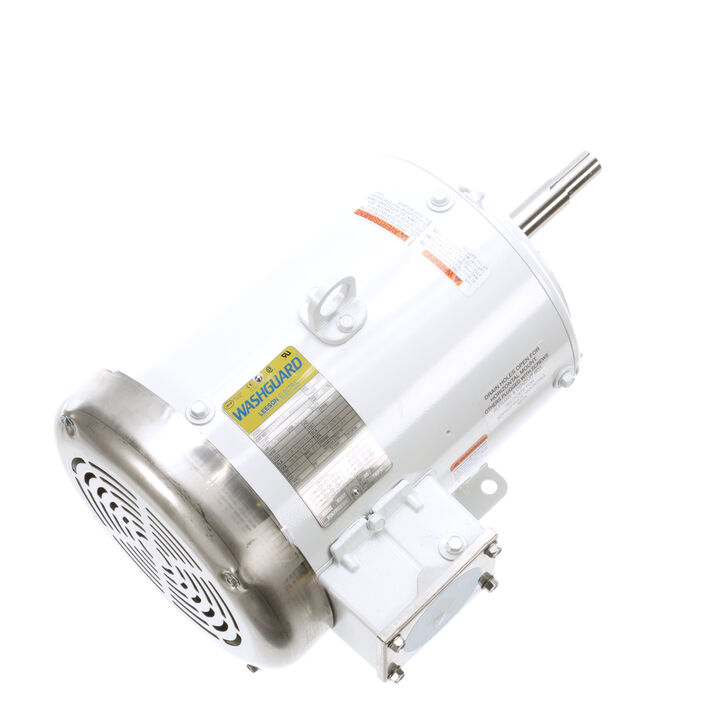

132444.00 | 208-230/460V | 5 hp | 1760 RPM | Epoxy Coated | 184JM | 12.6-13.8/6.3A | Class F | 104°F | €1,993.73 | |
 |

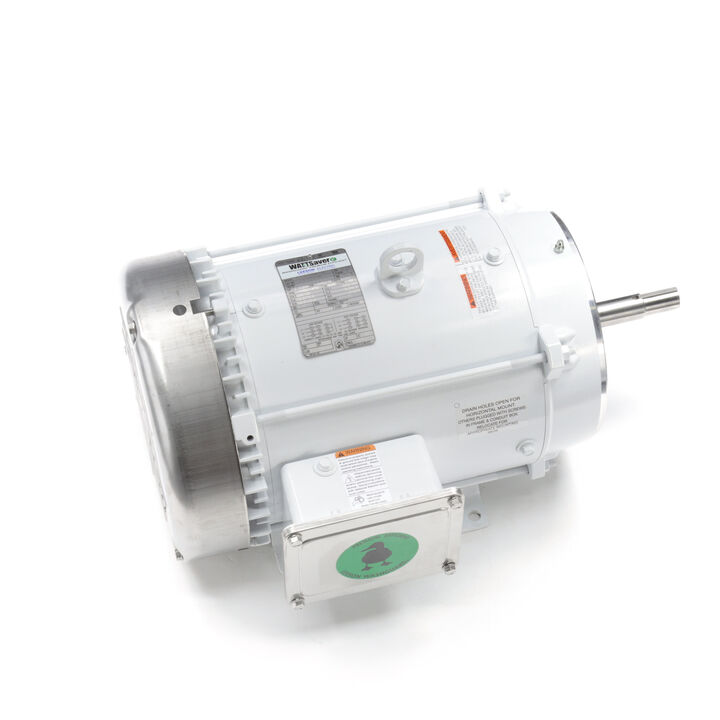

141270.00 | 230/460V | 7 1/2 hp | 1765 RPM | Epoxy Coated | 215JM | 19.6/9.8A | Class F | 104°F | €2,683.90 | |
 |

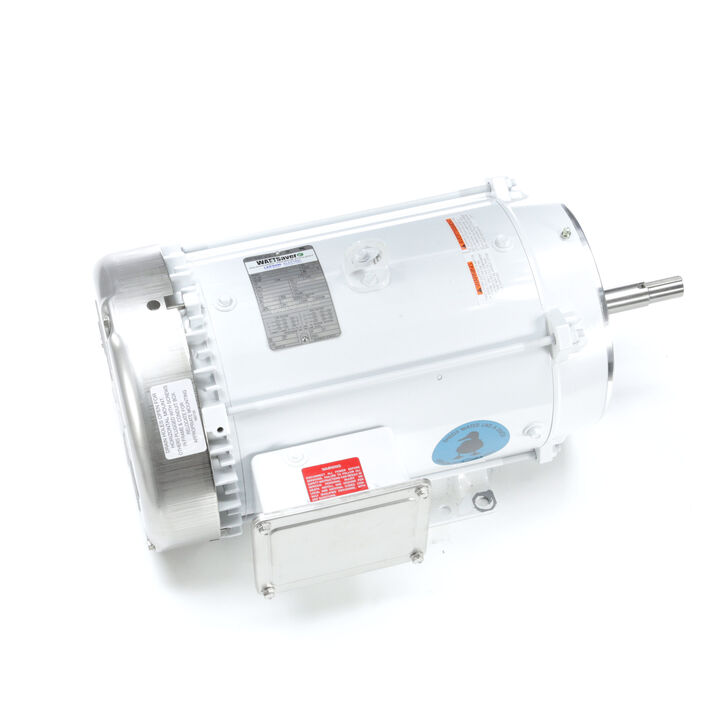

141271.00 | 230/460V | 10 hp | 3525 RPM | Epoxy Coated | 215JM | 23.6/11.8A | Class B | 104°F | €4,948.86 | |
 |

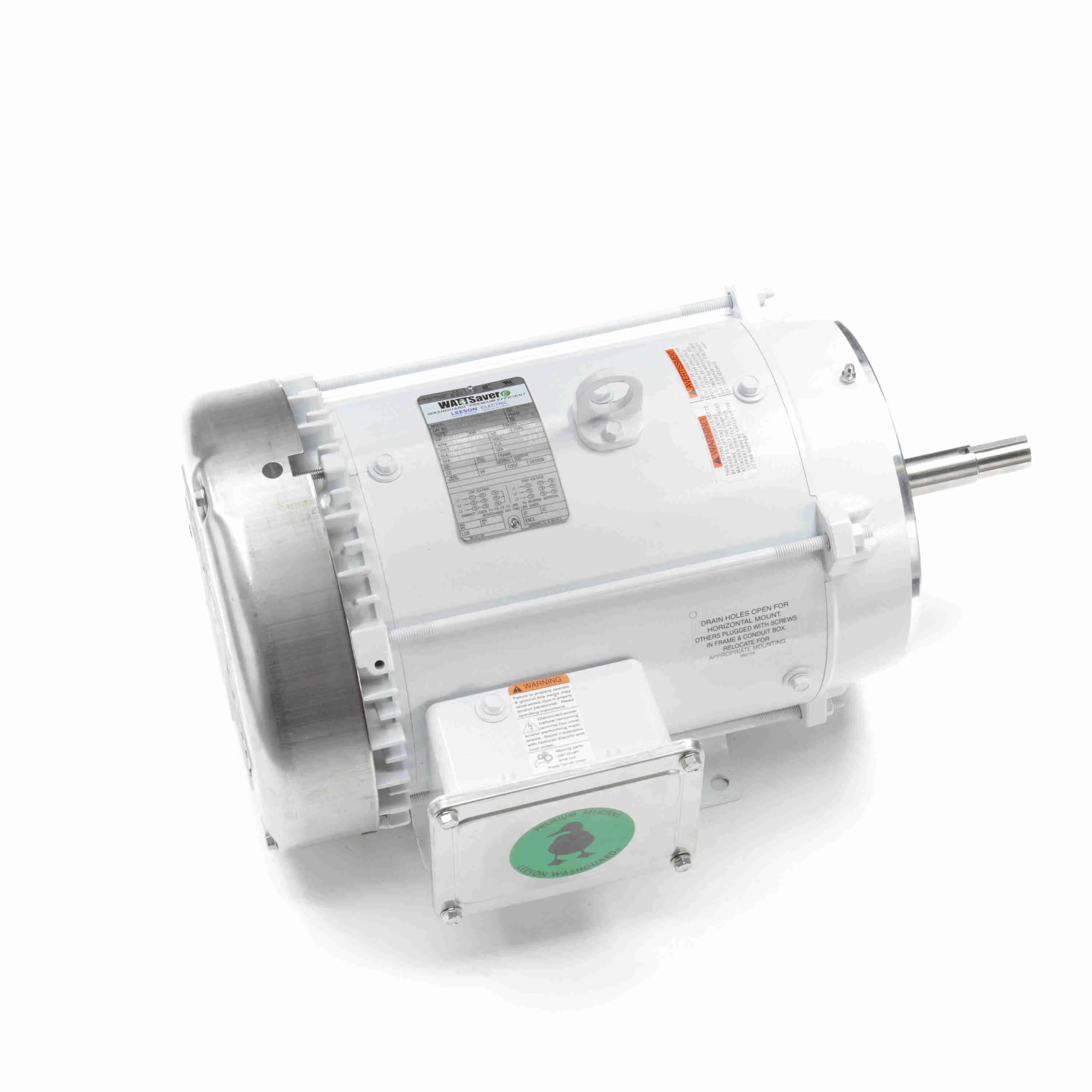

141272.00 | 230/460V | 10 hp | 1760 RPM | Epoxy Coated | 215TC | 26.4/13.2A | Class F | 104°F | €3,072.13 |
