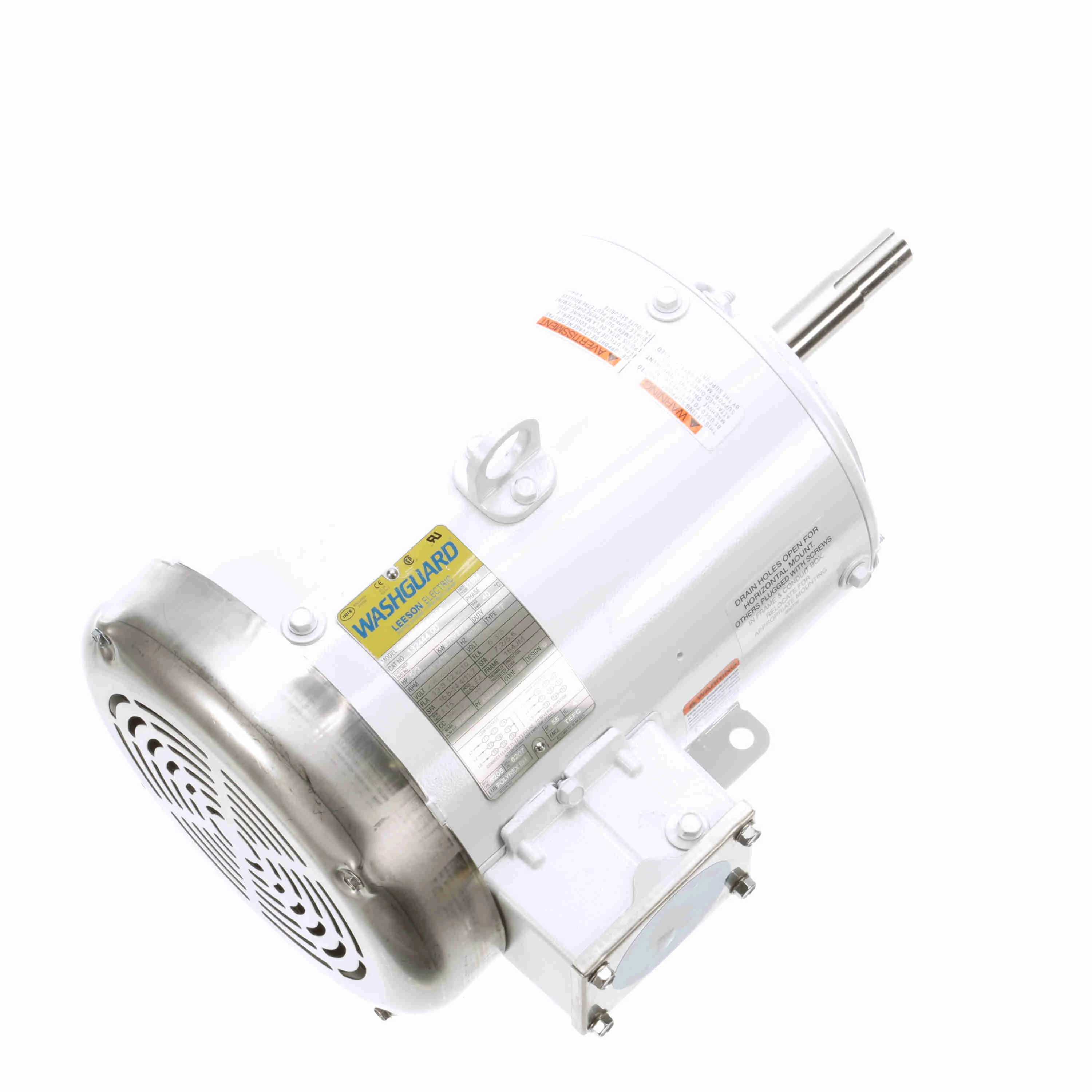

LEESON 132444.00 C184T17WK24A Washdown Motor 50-60 Hertz | AJ2RXF C184T17WK24A

LEESON 132444.00 C184T17WK24A Washdown Pump Motor, 5/3 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM

Item: AJ2RXFModel: 132444.00Cross Ref: 798GC8 / C184T17WK24A
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,993.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 104°F
Application Washdown
Bearing Type Ball
Body Dia. 8 1/2"
Code G
Color White
Drive End Bearing Size 6207
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 89.5%
Enclosure Type Tefc
Finish Epoxy Coated
Frame 184JM
Frame Material Rolled Steel
Frame Type 184JM
Frequency 60 Hz
Full Load Amps 12.6-13.8/6.3A
Grease Type Polyrex EM
Hp 5 hp
Hz 60 Hz
Insulation Class Class F
Kw 3.7 kW
Max. Ambient Temp. 40°C
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Rolled Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Design JM
Motor Shaft Rotation Clockwise/Counter Clockwise
Motor Shaft Rotation Clockwise, Counter Clockwise
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 1760 RPM
Nema Design B
No. Of Poles 4
No. Of Speeds 1
Nominal Efficiency 89.5%
Opp. Drive End Bearing Size 6205
Opp. Drive End Bearing Type Ball
Overall Length 16 5/8"
Packaging F
Phase 3
Power 3.7 kW
Power Factor 83
Product Type Washdown Pump Motor
Rotation Reversible
Rpm 1700-1800 RPM
Service Factor 1.15
Shaft Dia. 7/8"
Shaft Length 4.21"
Standards Bissc Approved, Ce Certified, Csa Certified, Ul Listed, Usda-Approved
Thermal Protection None
Type TF
Usable @ 208v Yes
Voltage 208-230/460V

Shipping Info:

Ship weight (kg) 40.01
Ship height (cm)32.72
Ship length (cm)45.57
Ship width (cm)33.17
Country of OriginMX

Product Details:

    • Supersedes Leeson - G131969.00 / C184T17WK17AA
    • Eff 75%: 90.2
    • Bearing OPE: 6205
    • CC Number: CC005A
    • Bearing PE: 6207
    • Nameplate: 081292.02
    • Winding: T84170
    • GROUP: 3
    • Paint: WHITE - LEESON (EPOXY)
    • S. F Amps: 15.6-14.4 / 7.2
    • Eff 100%: 89.5 / 88.5

Product Variants

ProductModelVoltageHpNameplate RpmFinishFrameFull Load AmpsInsulation ClassAmbient Temp.Price
LEESON 122191.00 C145T34WK39A Washdown Motor | AJ2RPG C145T34WK39A 122191.00208-230/460V3 hp3490 RPMUnfinished145JM8-8.8/4AClass F40°F€2,261.74

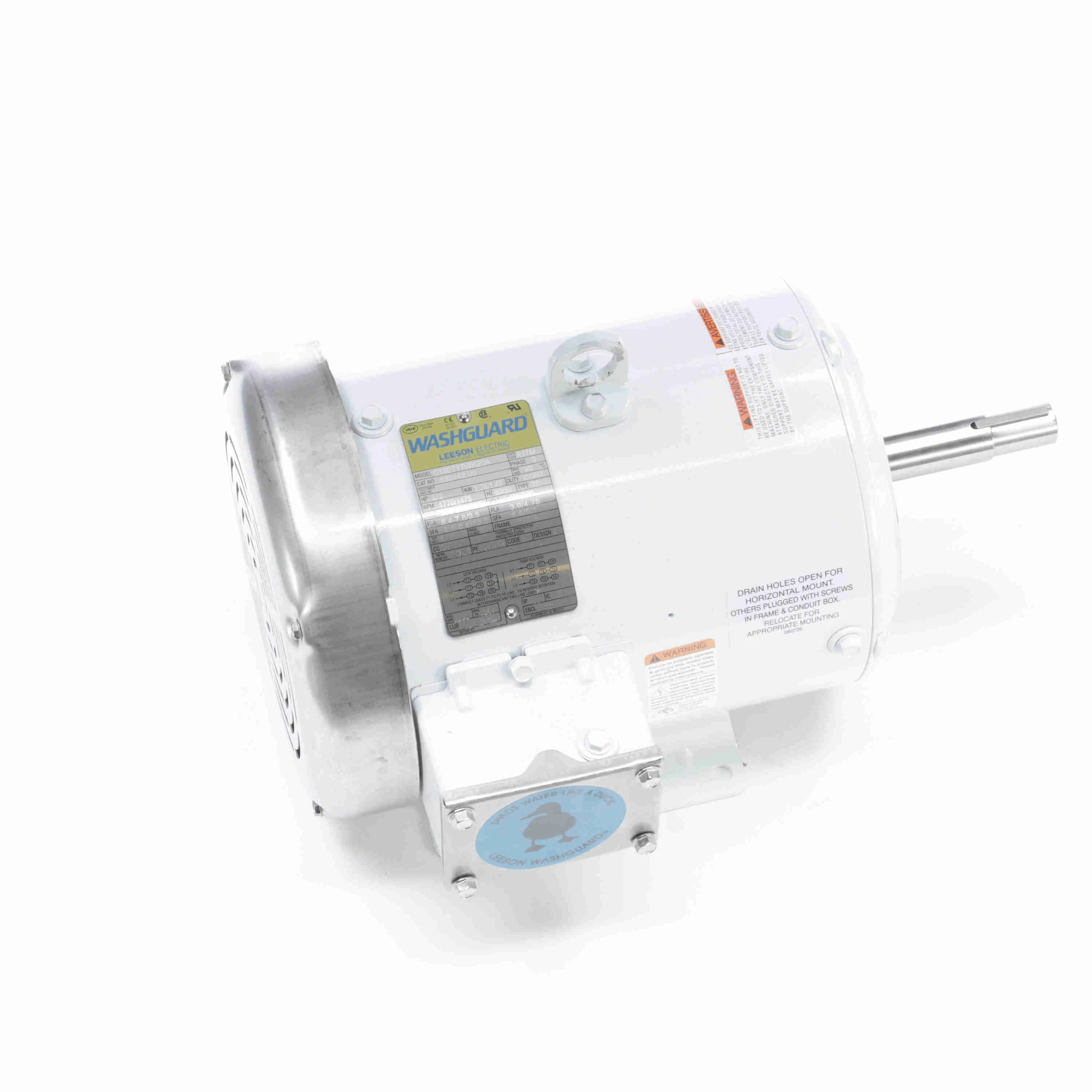

LEESON 132442.00 C182T17WK20A Washdown Motor 50-60 Hertz | AJ2RXD C182T17WK20A 132442.00208-230/460V3 hp1770 RPMEpoxy Coated182JM7.8-8.4/3.9AClass F104°F€3,027.58

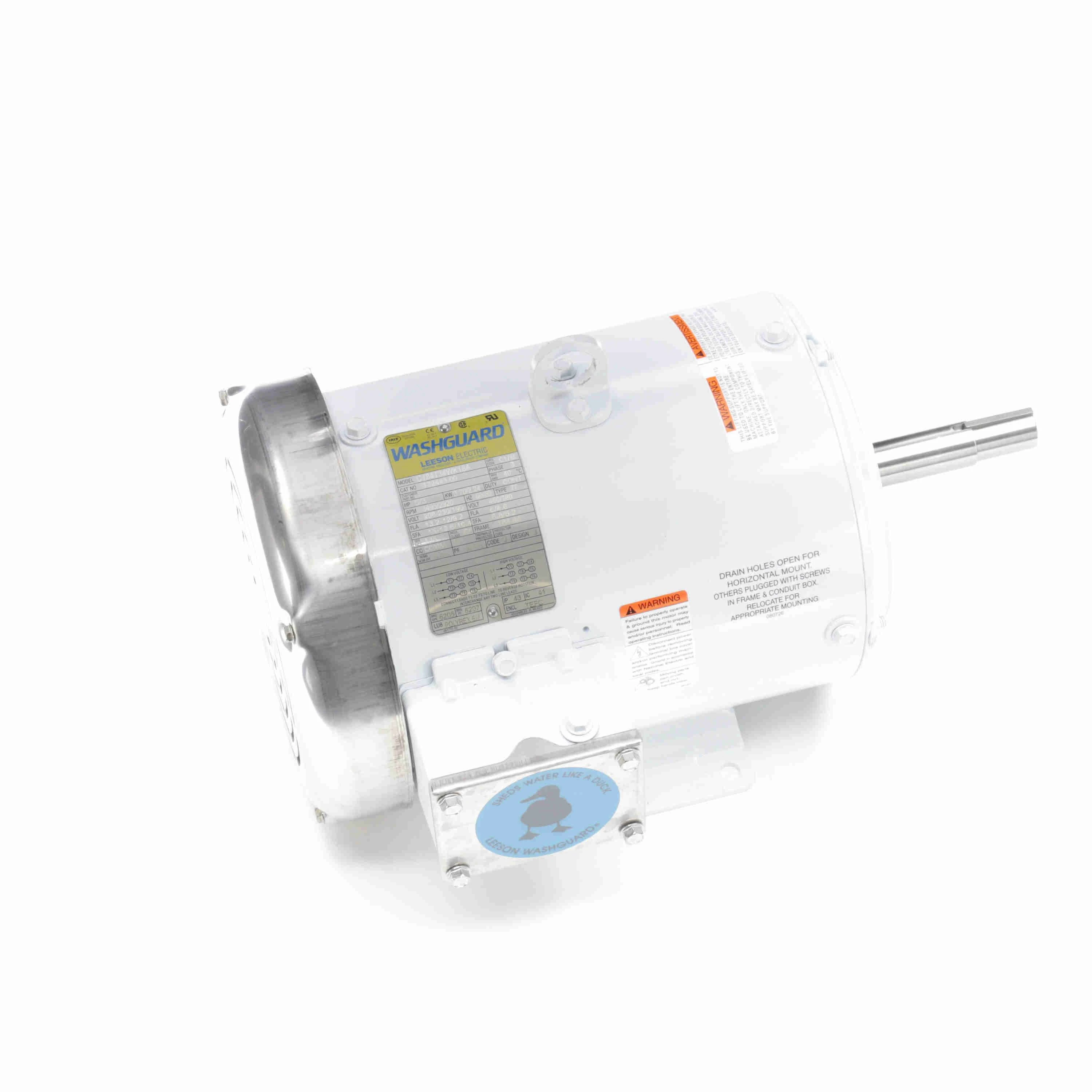

LEESON 132443.00 C184T34WK18A Washdown Motor 50-60 Hertz | AJ2RXE C184T34WK18A 132443.00208-230/460V5 hp3495 RPMEpoxy Coated184JM12-13.2/6AClass F104°F€3,301.70

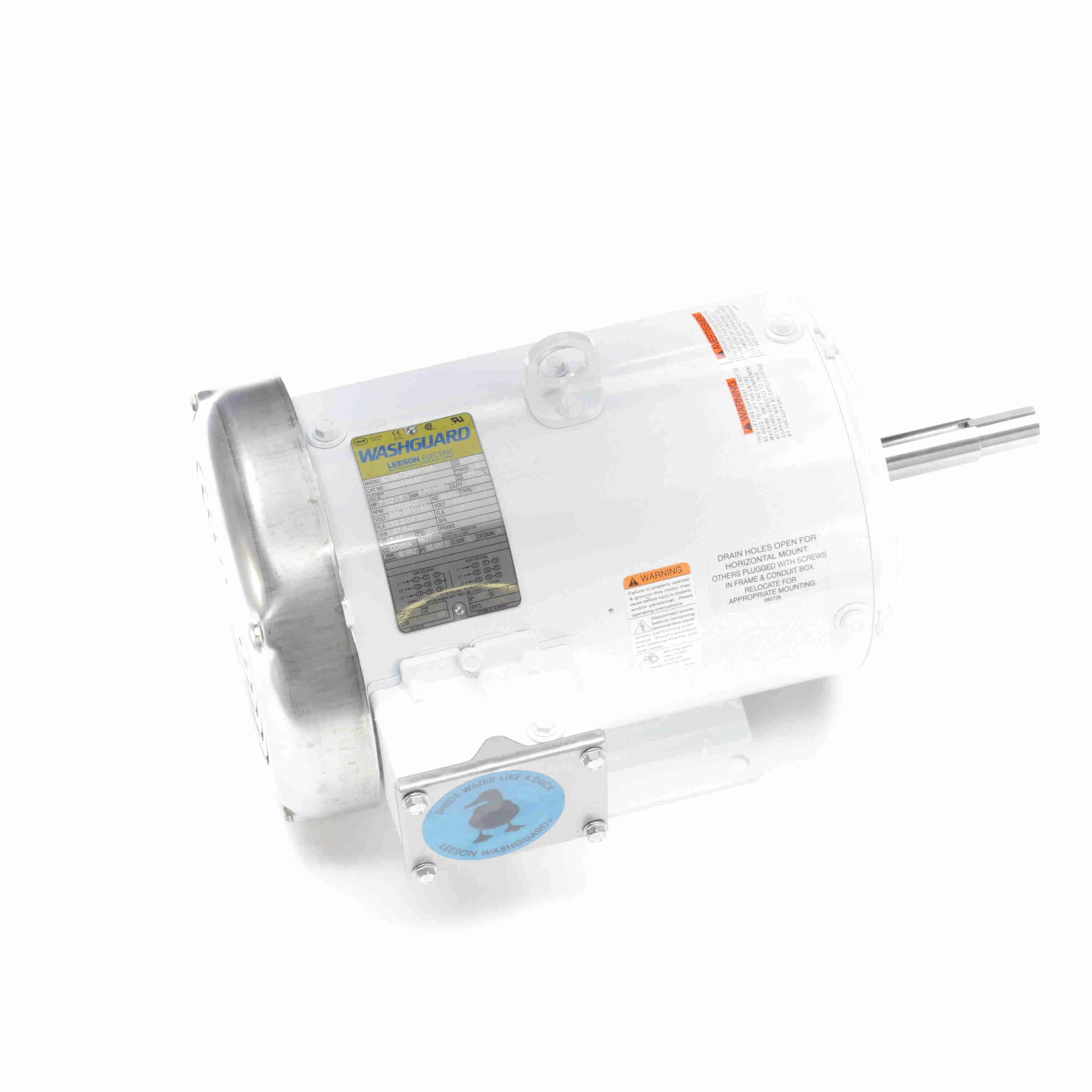

LEESON 132446.00 C184T34WK19A Washdown Motor 50-60 Hertz | AJ2RXG C184T34WK19A 132446.00208-230/460V7 1/2 hp3510 RPMEpoxy Coated184JM8.8AClass F104°F€3,297.79

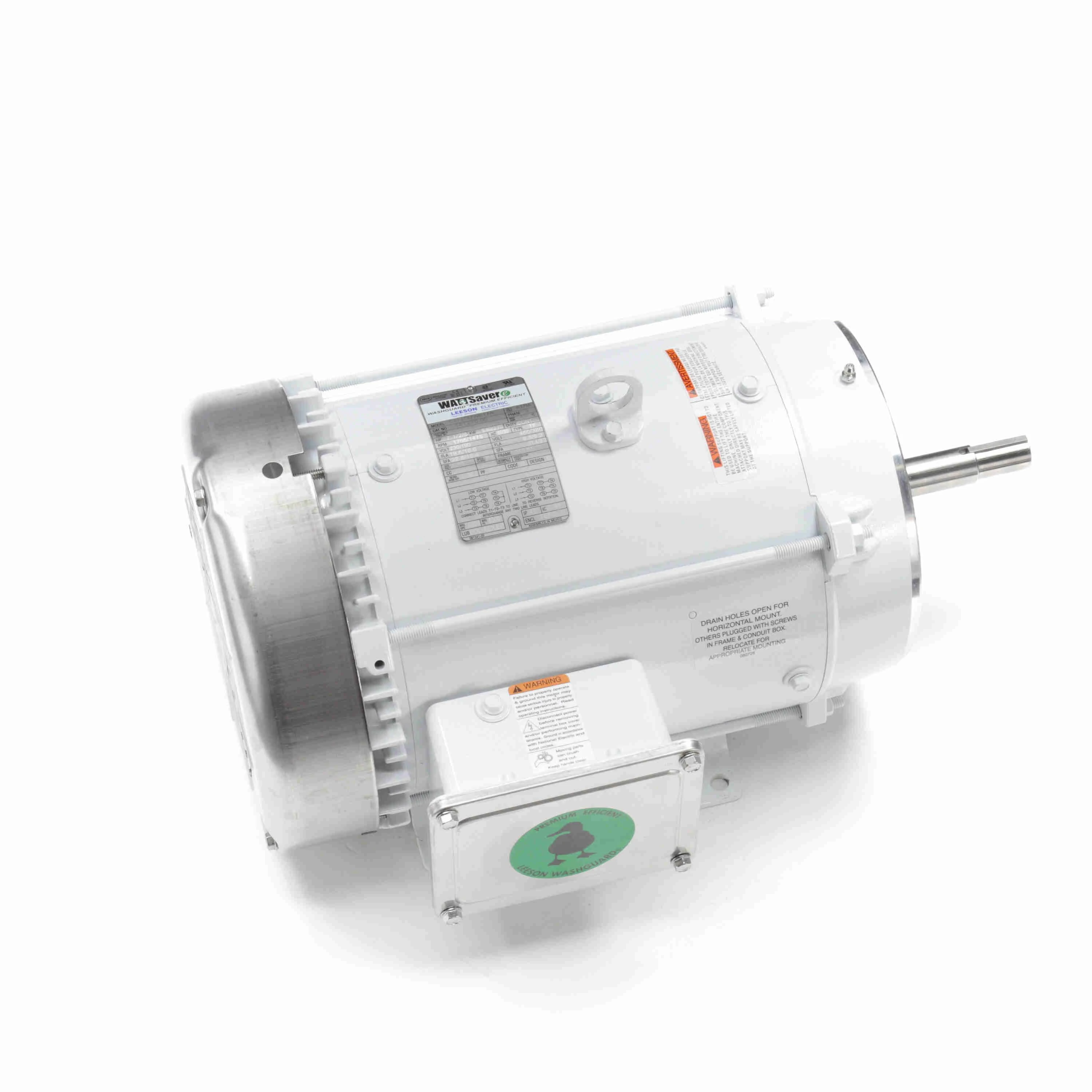

LEESON 141270.00 C213T17WK17A Washdown Motor 50-60 Hertz | AJ2TBY C213T17WK17A 141270.00230/460V7 1/2 hp1765 RPMEpoxy Coated215JM19.6/9.8AClass F104°F€2,683.90

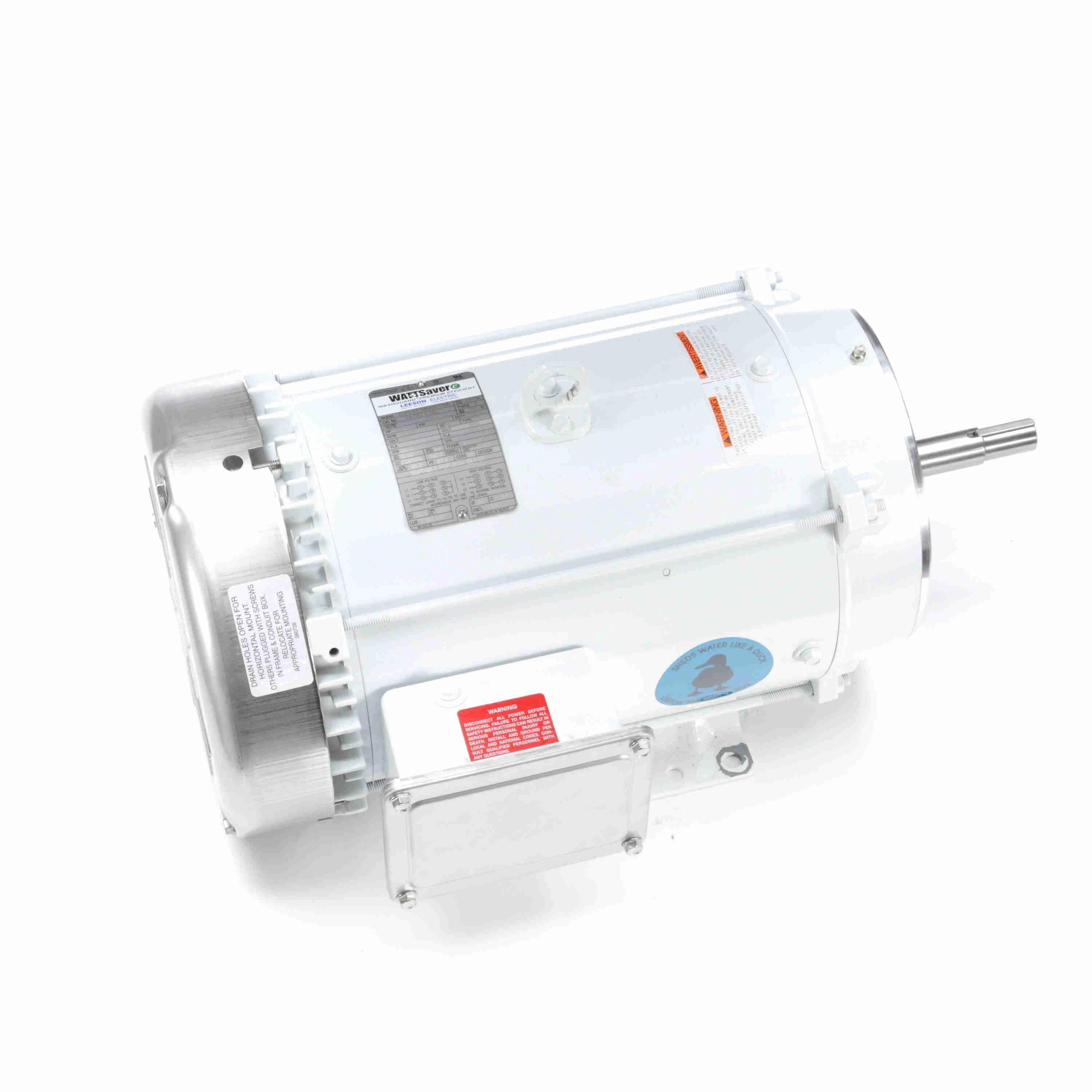

LEESON 141271.00 C215T34WK15A Washdown Motor | AJ2TBZ C215T34WK15A 141271.00230/460V10 hp3525 RPMEpoxy Coated215JM23.6/11.8AClass B104°F€4,948.86
LEESON 141272.00 C215T17WK18A Washdown Motor 50-60 Hertz | AJ2TCA C215T17WK18A 141272.00230/460V10 hp1760 RPMEpoxy Coated215TC26.4/13.2AClass F104°F€3,072.13
