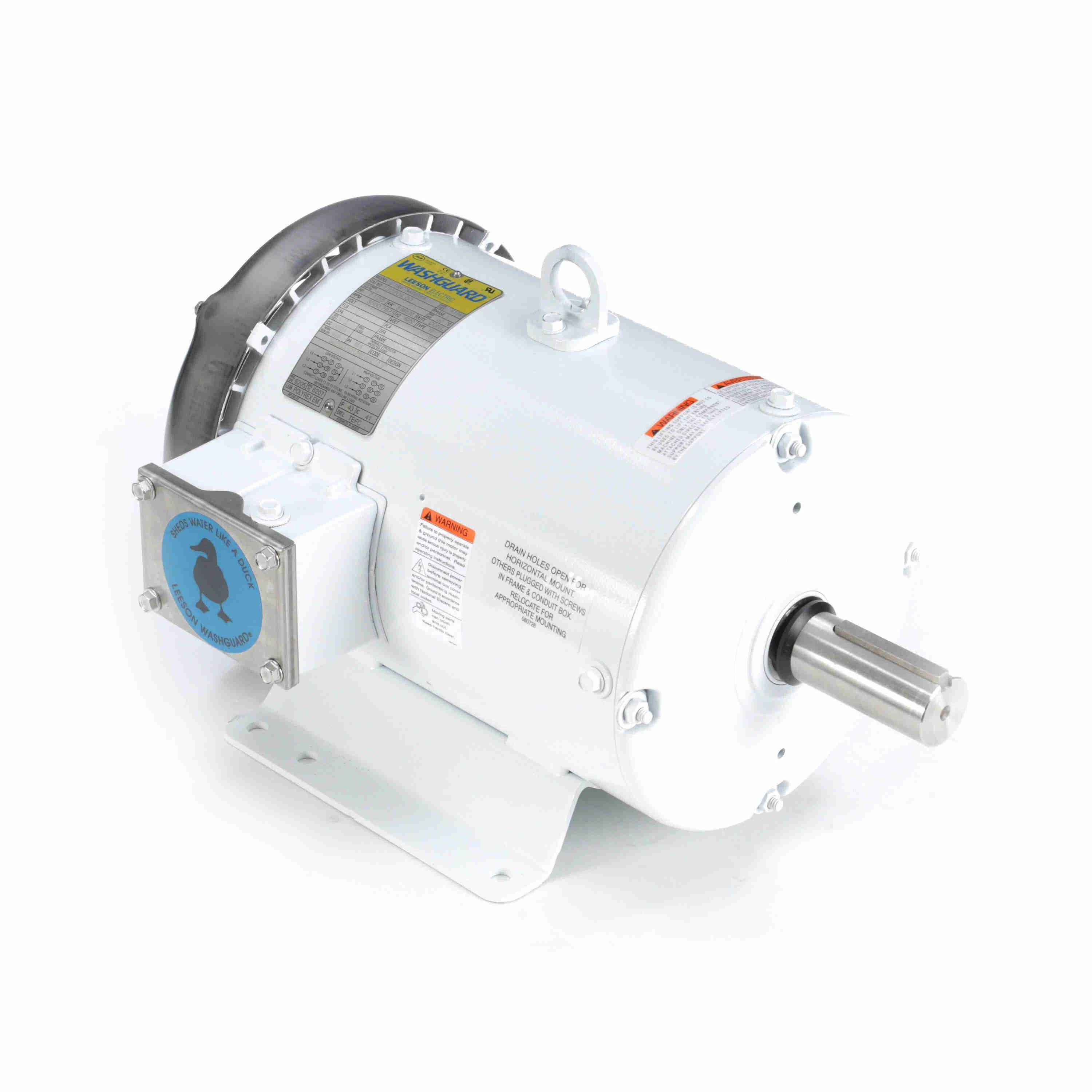

LEESON 132306.00 C184T34WB6A General Purpose Motor, 7.50/5 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Get it by Tuesday, Aug 25
5.00% off
€4,040.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Code | L |
| Color | White |
| Conduit Box Location | Exterior |
| Design | A |
| Drain Plug | (1) Drain Plugs In Conduit Box |
| Duty Cycle | Continuous |
| End Shield Material | Steel |
| Finish | Epoxy Coating |
| Frame | 184T |
| Frequency | 50/60 Hz |
| Full Load Amps | 8.8A |
| Grease Type | Polyrex EM |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Length Less Shaft | 13 3/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Stud Length | 6 1/2" |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3500 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Overall Length | 15 15/16" |
| Packaging | B |
| Phase | 3 |
| Power | 5.6 kW |
| Power Factor | 88.5 |
| Product Type | Washdown Motor |
| Rotation | Reversible |
| Service Factor | 1.2 |
| Shaft Dia. | 1 1/8" |
| Stud Length | 6 1/2" |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 89.5
- Bearing OPE: 6205
- CC Number: CC005A
- Bearing PE: 6207
- Nameplate: 081292
- Winding: T82153
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 19.8 / 9.9
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Full Load Amps | Nameplate Speed | Finish | Frequency | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

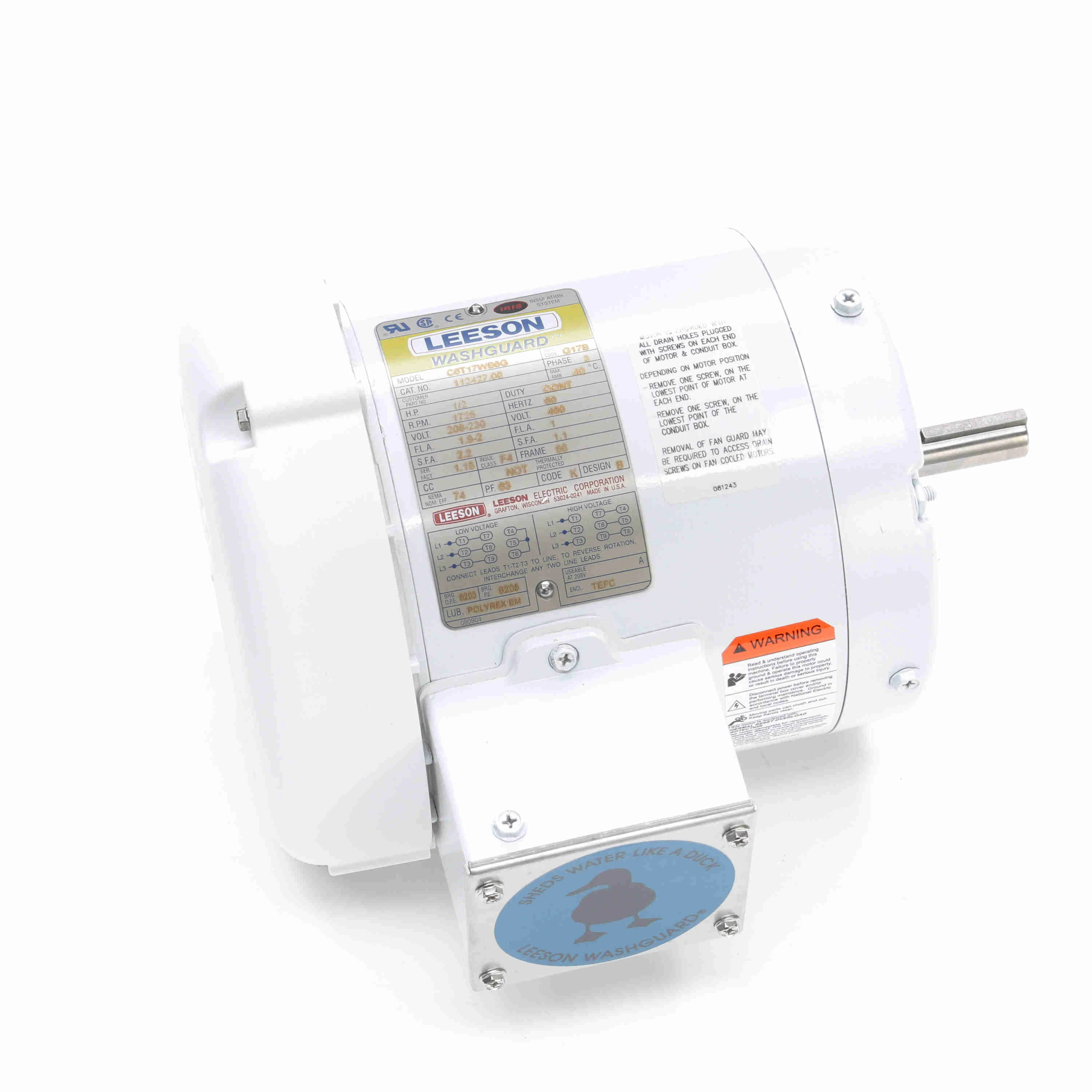

112427.00 | 208-230/460V | 1/2 hp | 5/8" | 2A | 1725 RPM | Epoxy Coating | 60 Hz | 74% | €879.13 | |
 |

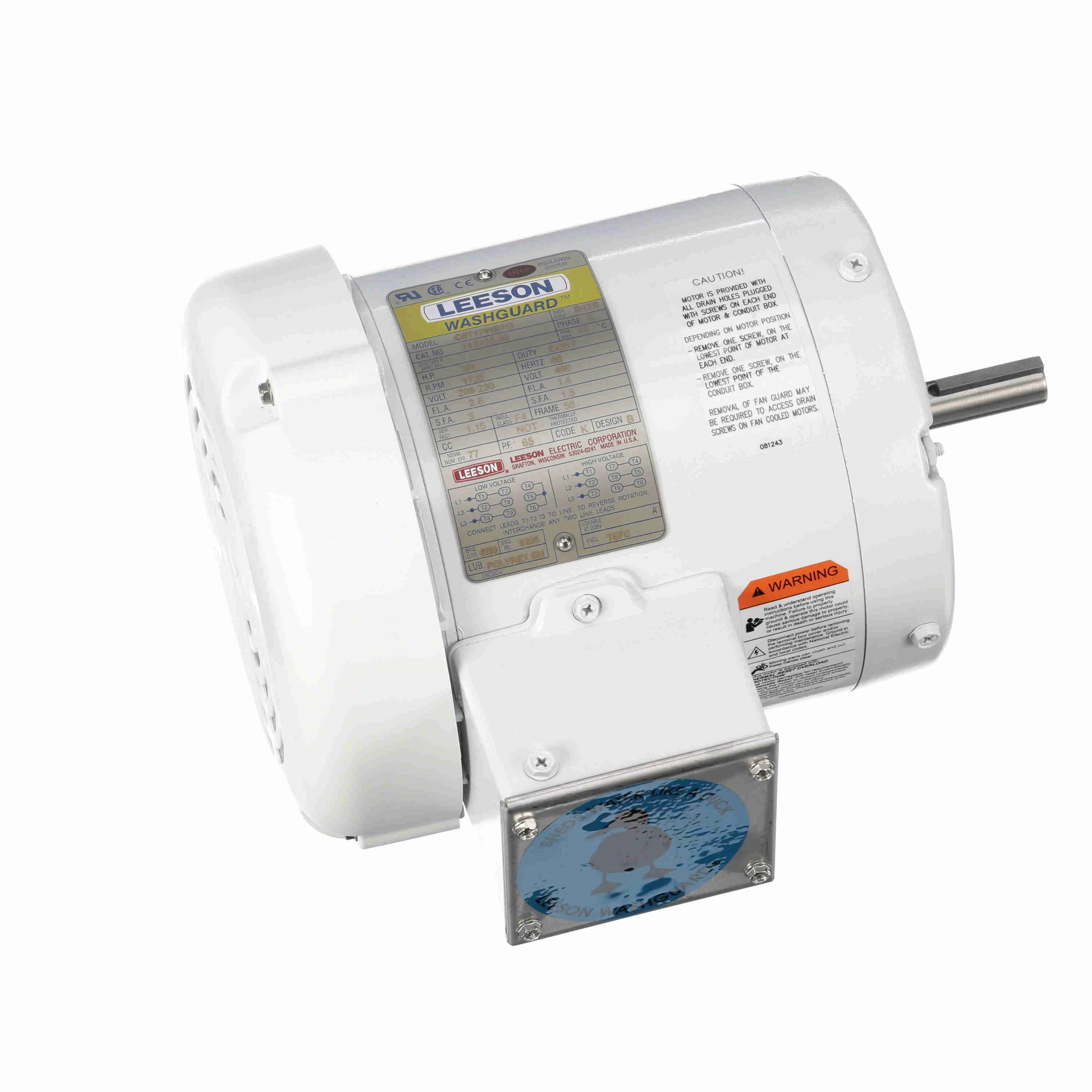

112428.00 | 208-230/460V | 3/4 hp | 5/8" | 1.4A | 1725 RPM | Epoxy Coating | 60 Hz | 77% | €1,128.36 | |
 |

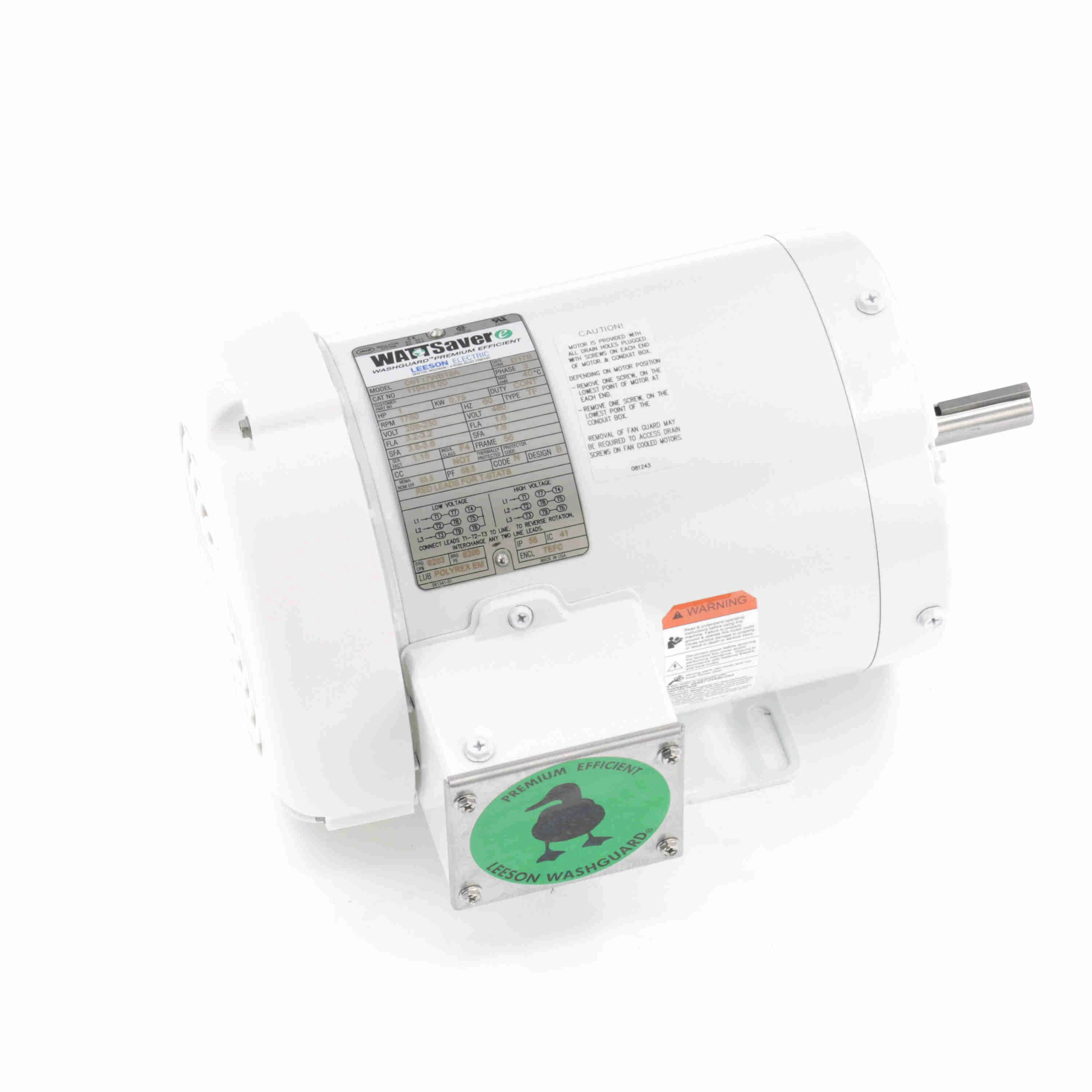

119475.00 | 208-230/460V | 1 hp | 5/8" | 3.2/1.6A | 1760 RPM | Epoxy Coating | 60 Hz | 85.5% | €1,601.80 | |
 |

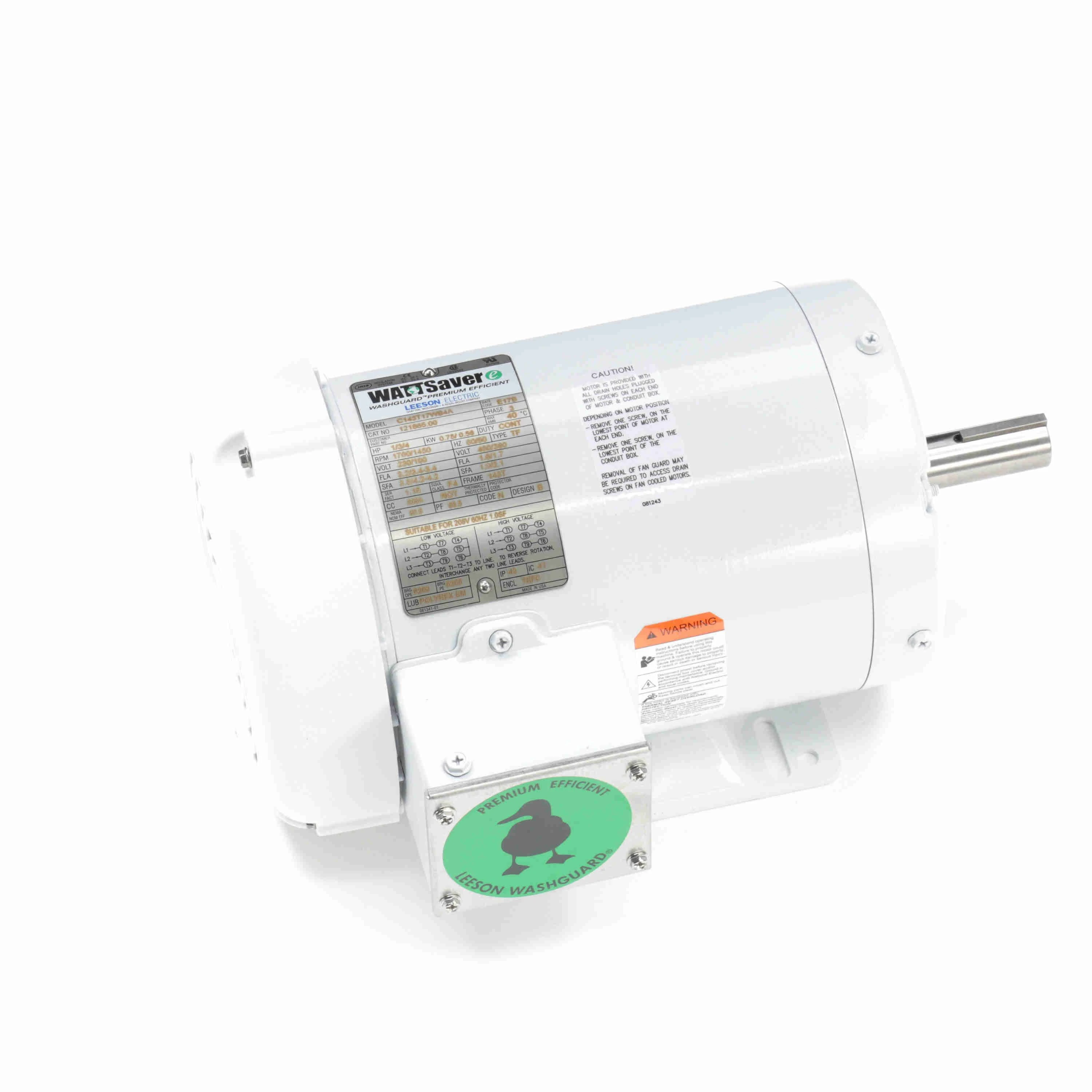

121865.00 | 230/460V | 1 hp | 7/8" | 3.2/1.6A | 1760 RPM | Unfinished | 60 Hz | 85.5% | €2,054.54 | |
 |

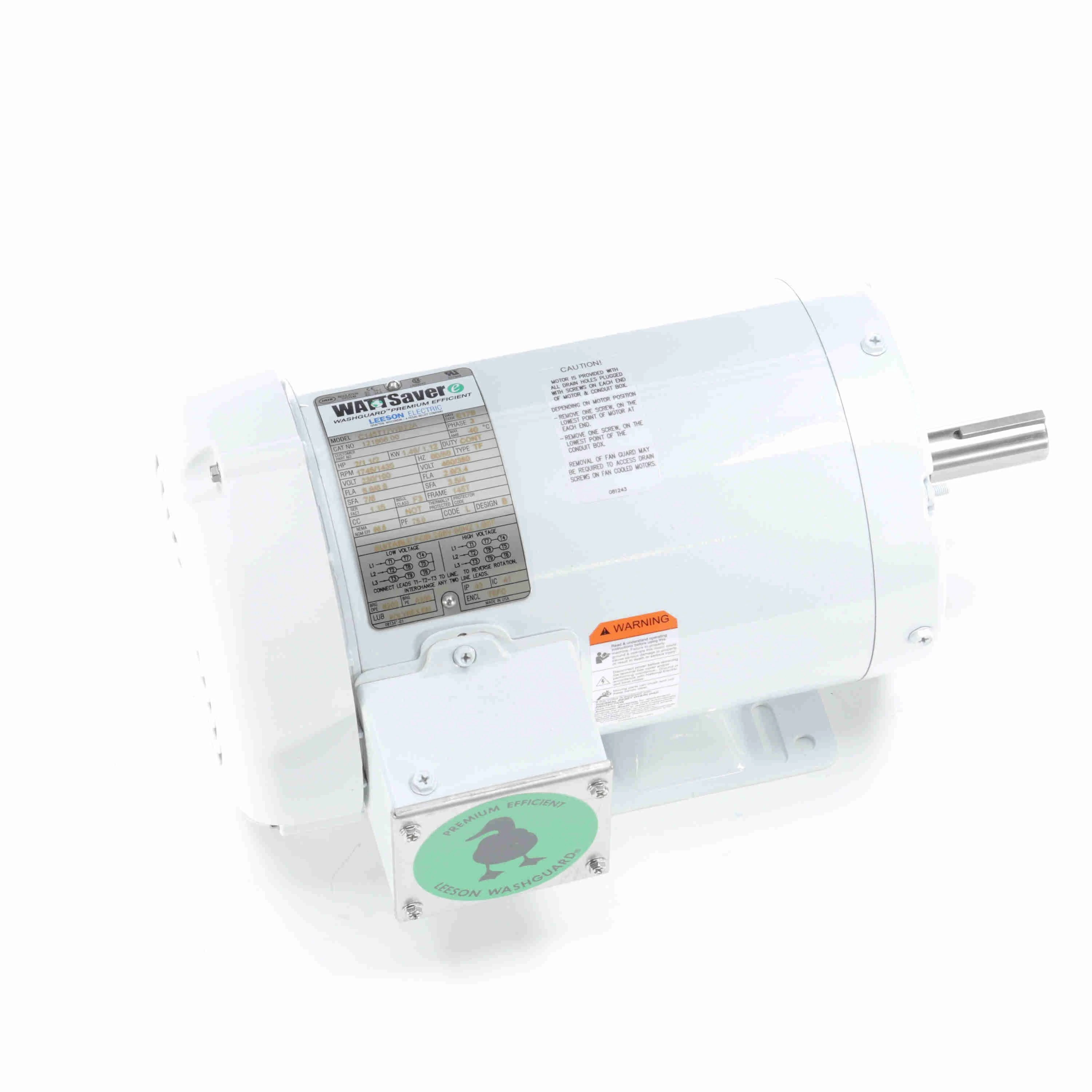

121866.00 | 230/460V | 2 hp | 7/8" | 2A | 1745 RPM | Epoxy Coating | 60 Hz | 86.5% | €1,524.27 | |
 |

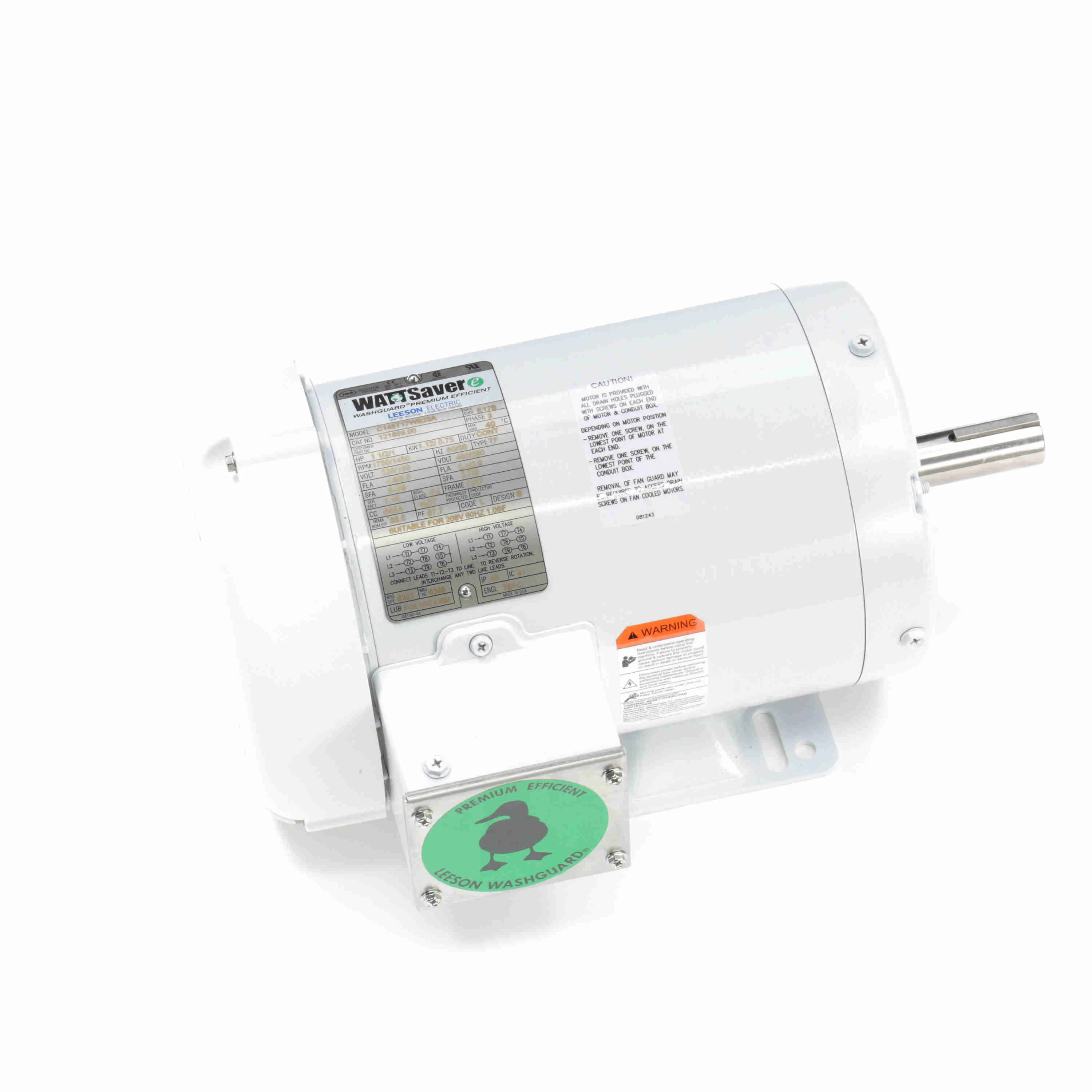

121869.00 | 230/460V | 1 1/2 hp | 7/8" | 2.4A | 1750 RPM | Epoxy Coating | 60 Hz | 86.5% | €891.01 | |
 |

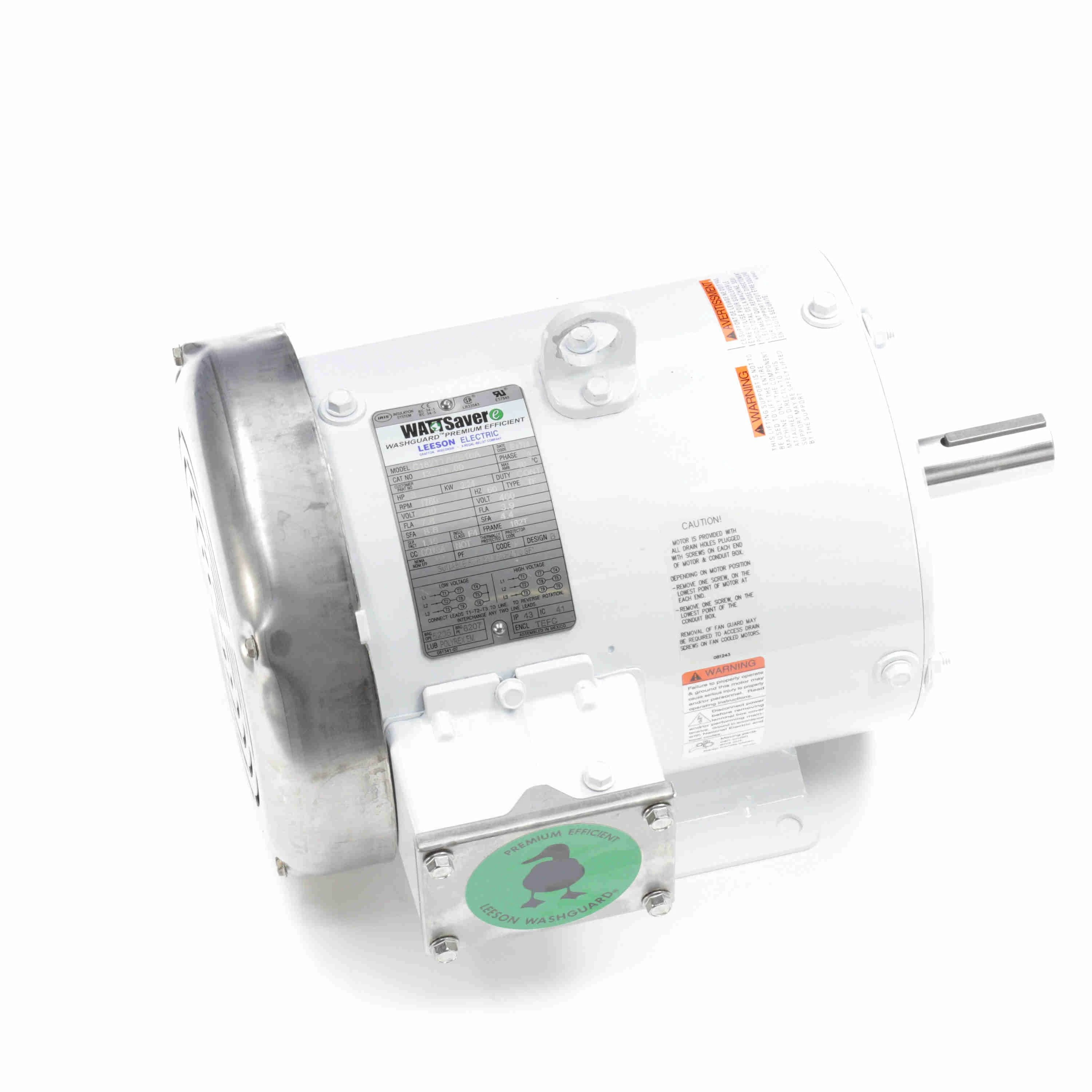

132196.00 | 230/460V | 3 hp | 1 1/8" | 7.8/3.9A | 1760 RPM | Epoxy Coating | 60 Hz | 89.5% | €1,594.30 |
